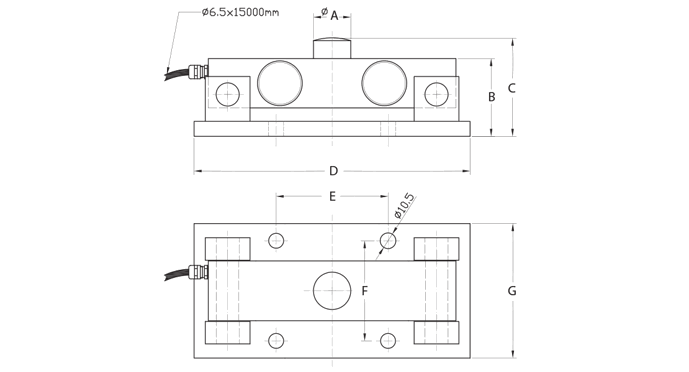

RL93 Stainless Steel, Double-Ended Beam Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
700 ohms, ± 3

Input Resistance:
700 ohms, ± 3

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Welded seal, IP67

Rated Excitation:
15 V

Insulation Resistance:
> 5.000 megohms

Cable Length:
15 m

Cable Construction:
PVC

Cable Color Code:
Red ......................+ Excitation
Black ......................– Excitation
Green ......................+ Signal
White ......................– Signal
Yellow ......................+ Sense
Blue ......................– Sense

Warranty:
One-year limited warranty
