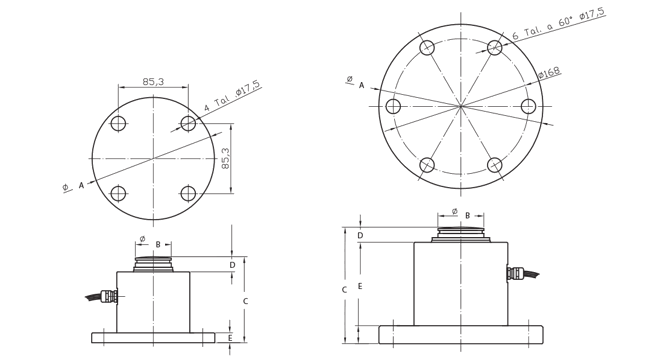

RL96 Stainless Steel, Compression Canister Load Cell

Full Scale Output:
2,0 mV/V

Output Resistance:
700 ohms, ± 3

Input Resistance:
800 ohms, ± 3

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Welded seal, IP69K

Safe Overload:
150%

Rated Excitation:
15 V

Combined Error:
0.02%

Insulation Resistance:
>5.000 megohms

Cable Length:
5 m

Cable Construction:
PVC

Cable Color Code:
Red ......................+ Excitation
Black ......................– Excitation
Green ......................+ Signal
White ......................– Signal
Yellow ......................+ Sense
Blue ......................– Sense

Warranty:
One-year limited warranty
