RL972 Square Top Load Cell Mount
As of: Wednesday, July 8, 2026
Standard Features
Applications
- Heavy capacity tanks, blenders, reactors and bulk inventory management
- Petroleum refining process control
- Chemical blending/batching
Optional Features
- Load cell checking system
The RL972 mount is designed to be used with the RL97 load cell. The low-profile compression design allows mounts to be integrated into tank weigh module systems. The design moves with the tilt of the plate to provide stable weighing. The mount can be installed without the load cell.

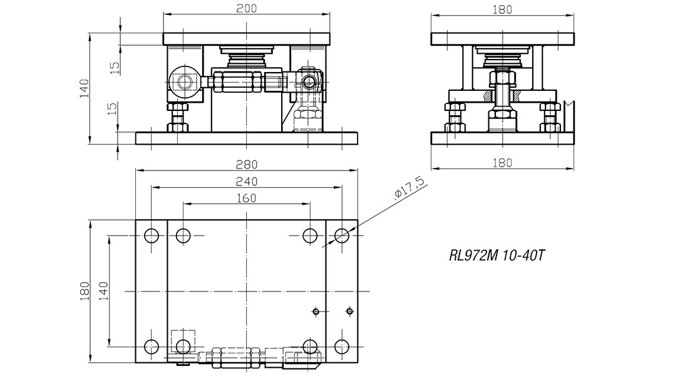

RL972 Load Cell Mount Dimensions

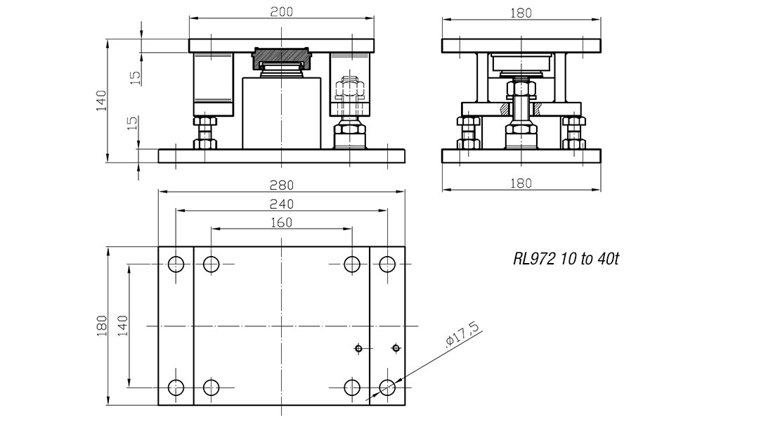

RL972 Load Cell Mount Dimensions 2

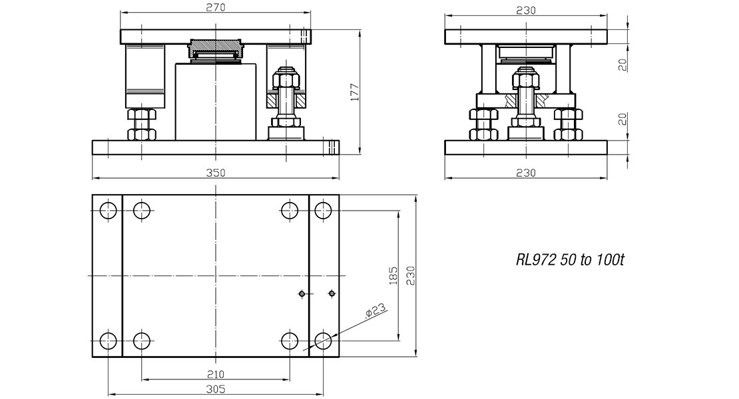

RL972 Load Cell Mount Dimensions 3

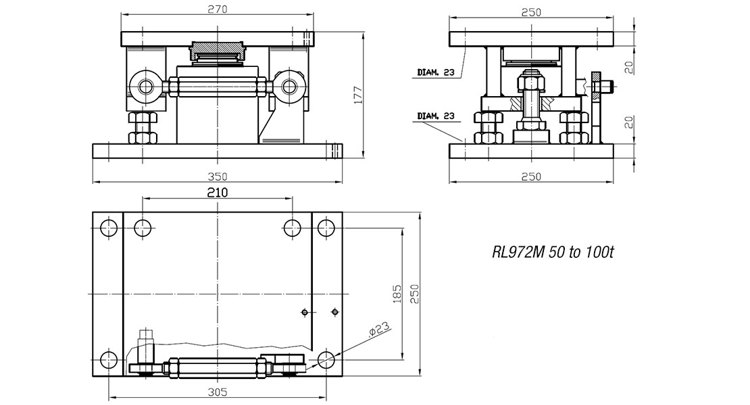

RL972 Load Cell Mount Dimensions 4

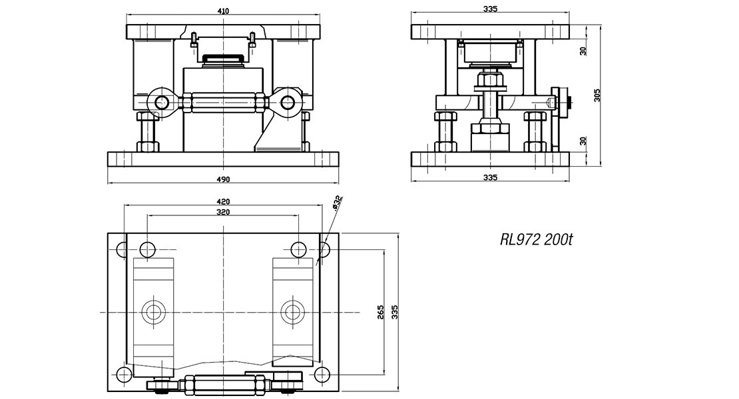

RL972 Load Cell Mount Dimensions 5
Nickle
| Part # | Description | List Price |
|---|---|---|
| 161313 | Nickel Steel Mount Square top | Consult |
Stainless Steel
| Part # | Description | List Price |
|---|---|---|
| 161314 | SST Mount Square top | Consult |
Nickle
| Part # | Description | List Price |
|---|---|---|
| 161323 | Consult | |
| 161325 | Consult | |
| 161327 | Consult |
Stainless Steel
| Part # | Description | List Price |
|---|---|---|
| 161324 | Consult | |
| 161326 | Consult | |
| 161328 | Consult |
