RoughDeck® BDP Stainless Steel - Portable Model
As of: Friday, July 10, 2026
Standard Features
- Live side rails
- Top-access foot adjustment holes
- Four adjustable stainless steel SUREFOOT™ support feet
- Smooth top plate
- IP66 stainless steel, welded-seal load cells
Portable Stainless Steel Barrel and Drum Pallet Scale
The portability kit for the RoughDeck BDP stainless steel floor scale allows operators to take the scale anywhere it’s needed. The compact, low-profile frame includes a lifting mechanism so the scale can be easily moved, and mounting brackets for optional ramps ensure quick loading for any material.
Four NSF-approved caster-designed wheels enable the operator to move the scale effortlessly throughout production. Use the indicator stand to mount any of Rice Lake's indicators, and you will have a complete weighing system at your command.
RoughDeck Stainless Steel Portability Kit Specifications
|
End Load Capacity: Cable Length: Junction Box: |
Welding: Threaded Eyebolt: |
Warranty (limited): Approvals: |

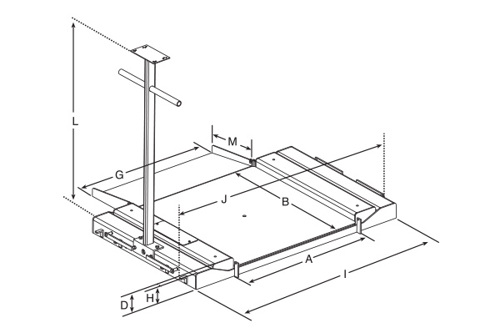

RoughDeck BDP Stainless Steel Portability Kit Dimensions
| Dimensions with portability frame and hinged access ramps | |||||
|---|---|---|---|---|---|
| 30 x 31 in models | |||||
| A | 30.00 in | G | 29.25 in | J | 52.25 in |
| B | 31.00 in | H | 3.25 in | L | 40.37 in |
| D | 3.66 in | I | 49.25 in | M | 12.00 in |
| Note: 1 in=25.4 mm | |||||
| Dimensions with portability frame and hinged access ramps | |||||
|---|---|---|---|---|---|
| 36 x 37 in models | |||||
| A | 36.00 in | G | 35.25 in | J | 58.25 in |
| B | 37.00 in | H | 3.25 in | L | 40.37 in |
| D | 3.66 in | I | 55.25 in | M | 12.00 in |
| Note: 1 in=25.4 mm | |||||
| Distance from floor to top of center weighing surface: 1.94 n (49.2 mm) Distance from floor to bottom of weighing surface: 0.62 in (15.7 mm) |
|||||
| Part # | Description | List Price |
|---|---|---|
| 77967 | BDP 30x31x1.625 1,000 lb SST | List Price: $4,315.00 |
| 77968 | BDP 30x31x1.625 2,500 lb SST | List Price: $4,315.00 |
| 77969 | BDP 36x37x1.625 1,000 lb SST | List Price: $4,445.00 |
| 77970 | BDP 36x37x1.625 2,500 lb SST | List Price: $4,445.00 |
Portability Kits - Kits Include: Frame, two swivel and two fixed zinc plated steel NSF approved wheels (75 lb max. load capacity), indicator stand
| Part # | Description | List Price |
|---|---|---|
| 78023 | Roughdeck BDP 30x31 1,000-2,500 SST | List Price: $1,655.00 |
| 78024 | Roughdeck BDP 36x37 1,000-2,500 SST | List Price: $1,735.00 |
RoughDeck BDP Portability Kit, with conductive wheels for use with 882IS
| Part # | Description | List Price |
|---|---|---|
| 199100 | Roughdeck BDP 30x31 1,000-2,500 SST with conductive wheels | List Price: $2,390.00 |
| 199101 | Roughdeck BDP 36x37 1,000-2,500 SST with conductive wheels | List Price: $2,470.00 |
Hinged access ramps: For use with portability kit
| Part # | Description | List Price |
|---|---|---|
| 78017 | 29.25"W x 12"L 1,000-2,500lb SST Treaded Top Plate Portable | List Price: $370.00 |
| 78018 | 35.25"W x 12"L 1,000-2,500lb SST Treaded Top Plate Portable | List Price: $370.00 |
| Part # | Description | List Price |
|---|---|---|
| 214614 | 30 Inches Wide SST Mounting Hardware Included | List Price: $295.00 |
| 214615 | 36 Inches Wide SST Mounting Hardware Included | List Price: $295.00 |
| Consult | Stainless steel deck with RL32218S-HE hermetically sealed IP69K stainless steel (cFMus approved) load cells and hardware | Consult |
