RoughDeck® LP Low-profile Floor Scale

As of: Saturday, November 14, 2026

Standard Features

Painted mild steel
Diamond tread plate and ramps
Live side rails
Self-centering ball and load receiver plate load introduction
Remote-access junction box
Four alloy steel, environmentally sealed, single-ended load cells

WARNING: Cancer and Reproductive Harm California Proposition 65

Low-profile Floor Scale

The RoughDeck LP is a low-profile floor scale specifically designed for applications with space limitations. The elongated platform features a diamond tread plate and ramps. This durable floor scale has a structural steel frame to provide reliable support and live side rails to capture accurate weights of oversized objects.

RoughDeck LP Floor Scale Specifications

End Load Capacity:
100% full scale at 2,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch, consult factory if continuous is required

Threaded Eyebolt:
Two holes (1/2-20 NF)

Weighing Surface Dimensions:
(L × W × H)
72.00 × 36.00 × 1.81 in

Warranty:
Two-year limited

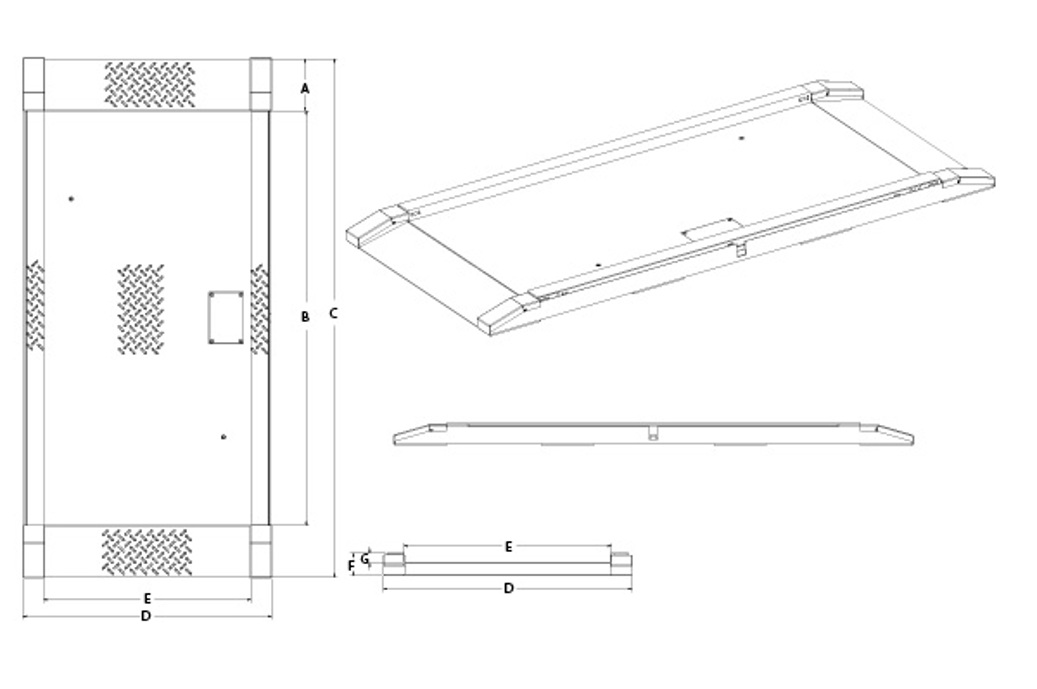

RoughDeck LP Floor Scale Dimensions

Dimensions
Inches
A	9.00
B	72.00
C	90.25
D	43.25
E	36.00
F	3.90
G	1.75

Part #	Description	List Price
204615	3x6LP-2K 3ftx6ft 2,000lb 20ft w/ Quick Connect Steel Painted, ball and socket foot	List Price: $4,615.00
