SPU2160 Speed Pickup

Standard Features

  • Rigid speed sensing device for dynamic weighing
  • Features direct coupling to the conveyor tail pulley
  • No wheels ride on the belt

WARNING: Cancer and Reproductive Harm California Proposition 65

SPU2160 Specifications

Mechanical Characteristics:
Enclosure: aluminum, IP65
Cable input/output: 1 x NPT 13mm
Connection: terminal block 3 x 1,5mm2

Minimum Speed:
20 revolutions per minute (16,6Hz)

Maximum Speed:
1.500 revolutions per minute (1.250Hz)

Generated Signal:
50 pulses per revolution

Operating Temperature:
-25°C to 65°C

Shaft:
Stainless steel

Warranty:
One-year limited warranty

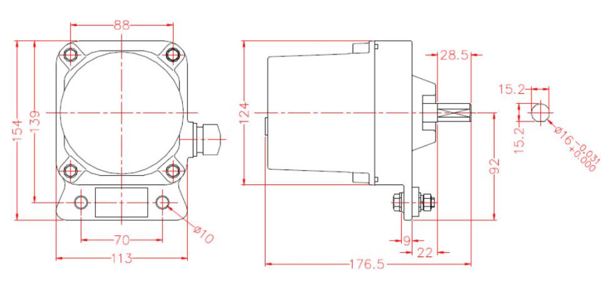

SPU2160 Speed Pickup Dimensions

Part #DescriptionList Price
157689SPU2160N-0050 Belt Scale Mechanically coupled speed sensor, metric coupling 50 ppr (generator style)List Price: $1,260.00
157690SPU2160EN-0600, Belt Scale Mechanically coupled speed sensor, metric coupling 600 ppr (encoder type)List Price: $1,450.00
