SURVIVOR® Paramounts® HE Weigh Module Systems

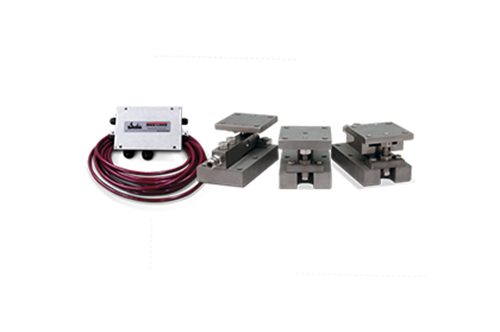

Complete Kit Includes:

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • One fixed-pin module, one side-stop module, and one or two free-sliding assemblies. Each module is complete with a Flintec SB4 or SB10 (520 lb) stainless steel hermetically sealed load cell.
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features:

  • Capacities (per module): (2.3 to 100 kN)
  • All stainless steel construction
  • Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
  • Hermetically sealed, stainless steel load cells
  • Load cell outputs are matched to ± 0.07%, minimizing maintenance costs
  • Unique design allows for thermal expansion/contraction
  • Low-profile, self-checking design
  • Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
  • Unique patented blind load hole technology minimizes unwanted side and eccentric loading
  • Vessel is free to slide laterally on PTFE-coated surfaces
  • Two-year limited warranty

Applications:

  • Medium-capacity, blenders and tanks
  • Batching/blending
  • Pharmaceutical processing
  • Food processing
  • Petroleum refining and batching

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved NTEP Logo OIML Logo Moisture Logo Black

WARNING: Cancer and Reproductive Harm California Proposition 65

A Weigh Module for Any Circumstance

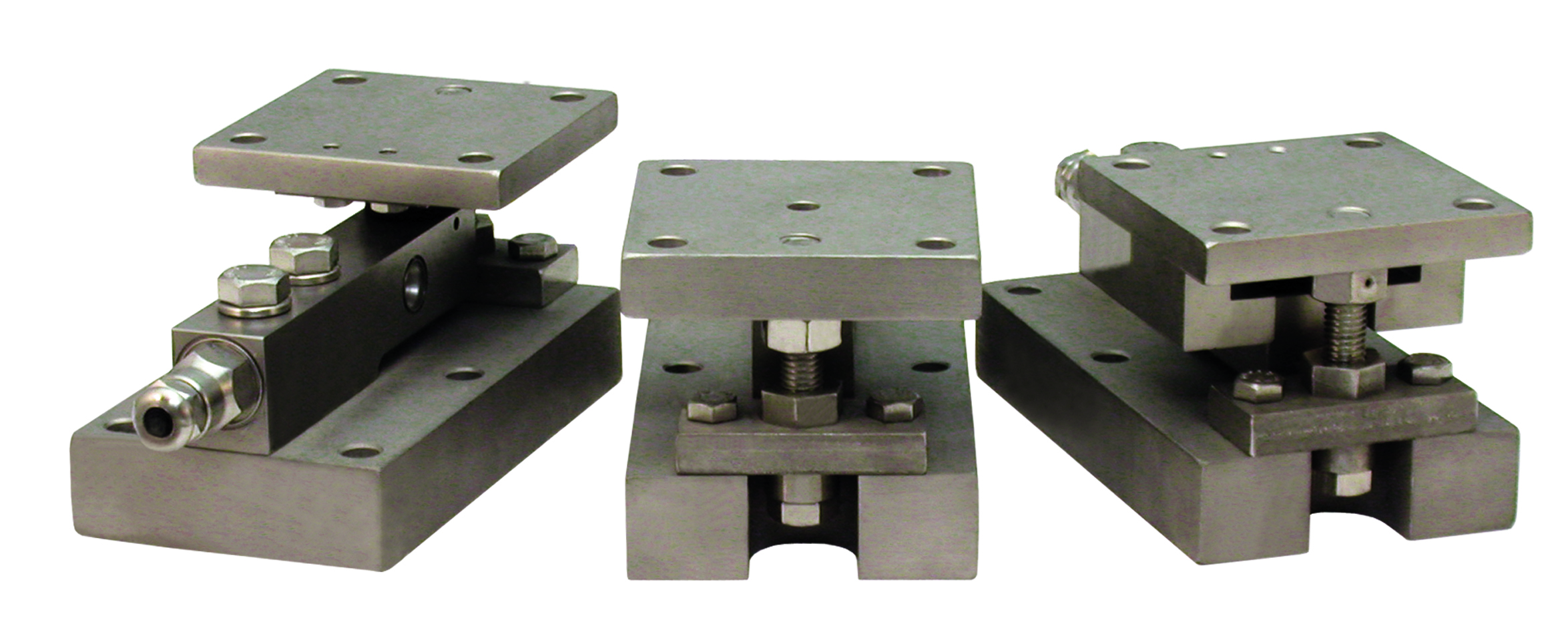

Consisting of three different weigh module designs, the Paramounts system offers superior accuracy, even in applications with extreme expansion, contraction and vibration. The fixed-pin module acts as the vessel’s primary reference point, enabling rotation. A single side-stop module is then paired with the fixed-pin module to permit mechanical expansion and contraction in one direction. The vessel then becomes a high-accuracy weighing system with the addition of one to six free-sliding modules. This system offers the free motion necessary to eliminate unwanted mechanical side loads, as well as the strength needed to keep the vessel in check. This gives the Paramounts system its industry-leading reputation for exceptional accuracy in unfriendly environments. Integral jacking/shipping bolts enhance safety by preventing accidental lift-off, facilitating quick field removal of load cells and eliminating load cell damage during transportation. Matched outputs and field-replaceable cable simplify installation and enhance serviceability. The Paramounts system represents the ultimate combination of convenience, accuracy and control.

Applications

Rated Capacity C D H H1 *H2 **H2 H3 L L1 L2 L3 L4 W W1
kN/in
2.3 kN 0.38 0.44 3.49 1.00 0.50 0.75 2.98 7.51 3.00 4.00 3.00 0.50 4.00 3.00
5-23 kN 0.44 0.44 3.58 1.25 0.50 0.75 3.06 7.51 3.00 4.00 3.00 0.50 4.00 3.00
50 kN 0.56 0.56 4.66 1.50 0.62 1.00 4.09 9.19 3.87 5.00 3.87 0.56 5.00 3.87
100 kN 0.69 0.69 6.41 2.00 0.75 1.25 5.73 11.46 4.75 6.00 4.75 0.69 6.00 4.75
 * Side Stop and Free Sliding Units   ** Fixed Pin Units

Resources / Downloads

Title Download Email
Paramounts HE Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
Paramounts Weigh Module Kit Installation Guide A Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
Paramounts HE Stainless Steel Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Email Category
Paramounts Technical Sheet Download Email Weigh Modules

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

NTEP Certified/OIML C3 3-Module Kit

Part # Description List Price Cart
29883 Mount Kit,Paramount 3EA 5kN 1,125 lb NTEP SST Compression INCL SB4-5kN-C3 (1,125 lb) And JB4SS

List Price: $4,125.00

29884 Mount Kit,Paramount 3EA 10kN 2,250 lb NTEP SST Compression INCL SB4-10kN-C3 (2,250 lb) And JB4SS

List Price: $4,125.00

29885 Mount Kit,Paramount 3EA 23kN 5,200 lb NTEP SST Compression INCL SB4-23kN-C3 (5,200 lb) And JB4SS

List Price: $4,125.00

29886 Mount Kit,Paramount 3EA 50kN 11,250 lb NTEP SST Compression INCL SB4-50kN-C3 (11,250 lb) And JB4SS

List Price: $5,580.00

NTEP Certified/OIML C3 4-Module Kit

Non-NTEP Certified 3-Module Kit

Non-NTEP Certified 4-Module Kit

Options

Conduit Adapter

Part # Description List Price Cart
17703 Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST

List Price: $50.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
