TP75 DC Transient Protector

  • Protects load cells and indicators from voltage transients
  • Avalanche diode design
  • Full six-wire with shield protection
  • NEMA Type 4X enclosure
  • Unlimited number of parallel load cells; up to eight in series
  • Terminal lugs provided
Applications
  • Tank, bin and hopper scales
  • Truck and railroad scales
  • Suitable for outdoor use

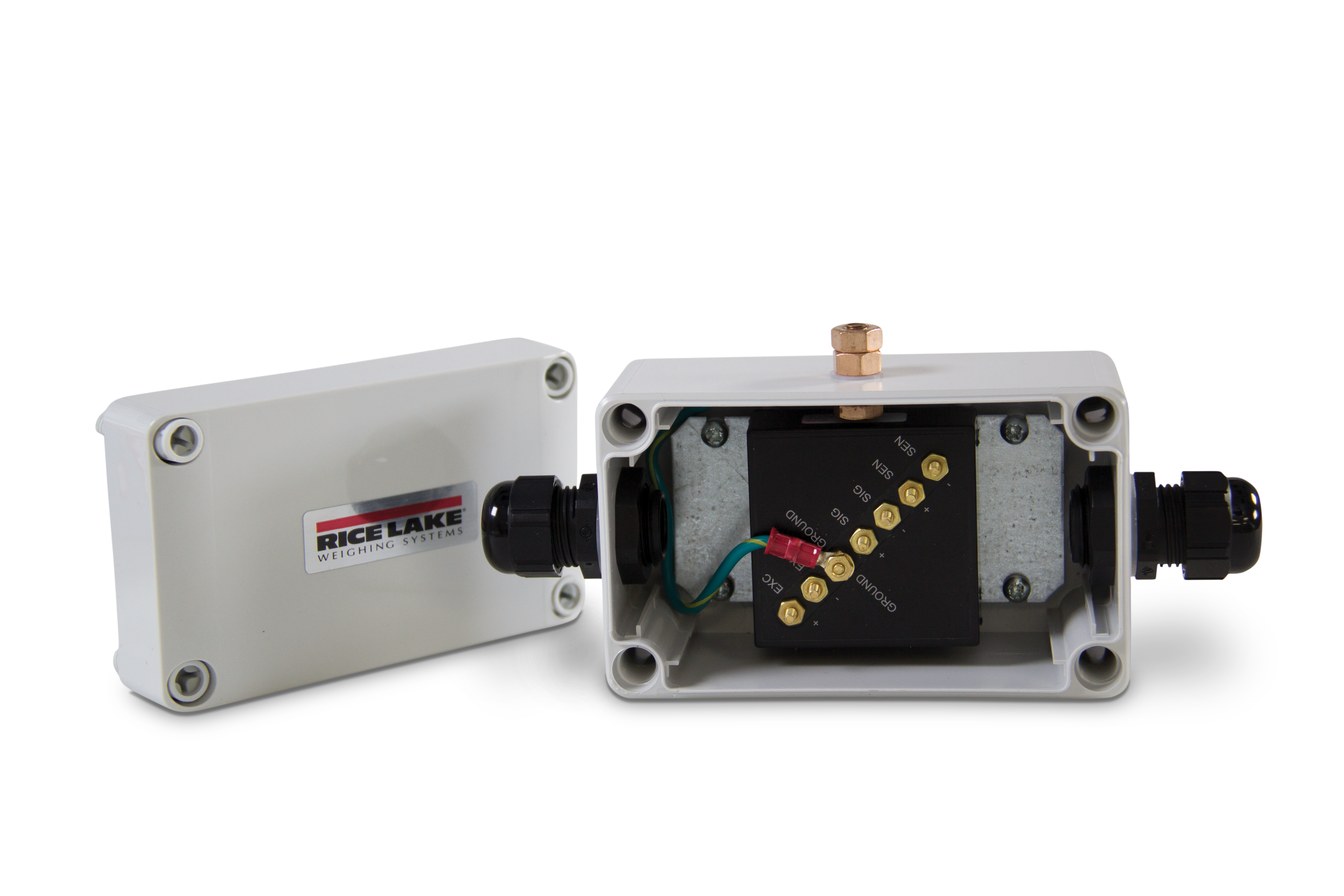

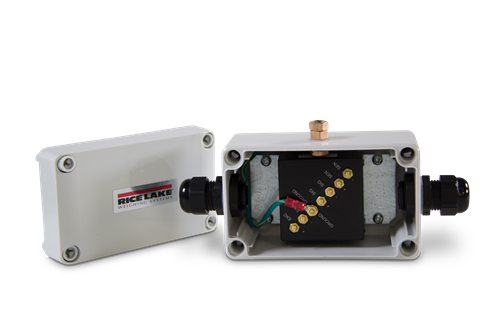

The TP75 DC load cell surge protector protects an unlimited number of parallel load cells and up to eight in a series. The NEMA Type 4X enclosure assures the sensitive board stays safe and dry during washdown.

Protection Type:
Six-wire type with separate shield

Maximum Excitation Voltage:
22.8 VDC

Response Time:
Five nanoseconds

Peak Surge Currents:
100 amps

Grounding:
10 AWG wire or larger (not provided)

Cable Fitting:
Two nylon strain relief for 0.187 to 0.312 in diameter cable

Enclosure:
Impact-resistant polycarbonate NEMA Type 4X, maximum 40 psi washdown

Temperature:
Operating: -4 °F to 149 °F (-20 °C to 65 °C)

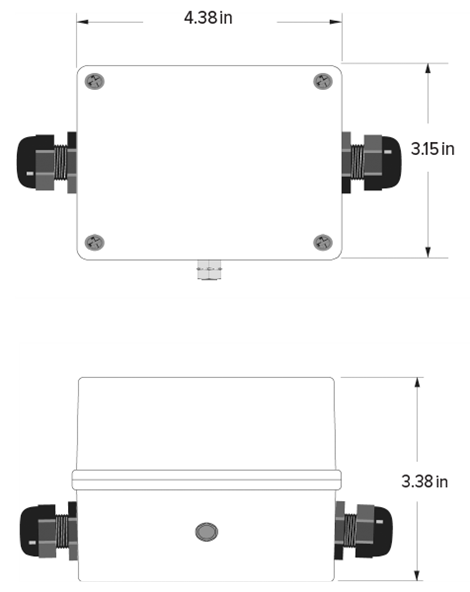

Dimensions:
(L × W × H)
3.16 × 2.20 × 1.18 in

Warranty:
One-year limited
