VPG® Revere 462 Alloy Steel, Single Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
390 (± 5) ohm

Material/Finish:
Alloy steel with stainless steel cover

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC nominal (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
2 to 20 lb: 0.06 in
50 to 250 lb: 0.04 in

Cable Length:
10 ft

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
cFMus

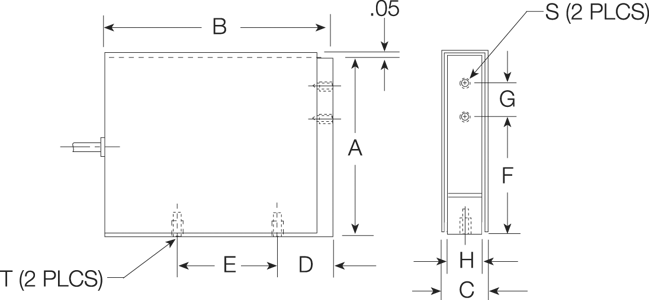

2 to 20

4.00

5.13

0.91

1.25

2.20

2.60

0.75

0.75

1/4-28 UNF x 0.38 DP

10-32 UNF x 0.25 DP

50 to 100

4.60

6.00

1.16

1.90

2.20

2.60

1.00

1.00

3/8-24 UNF x 0.50 DP

1/4-28 UNF x 0.50 DP

250

4.60

6.00

1.16

1.90

2.20

2.35

1.50

1.00

3/8-24 UNF x 0.50 DP

3/8-24 UNF x 0.50 DP
