VPG Revere 9323 Stainless Steel, Link Beam Load Cell

The 9323 load cell is a high-performance, end-loaded, center-supported double-ended beam designed for low-profile truck scales in harsh environments. Parallel link loading provides free movement in all horizontal directions with virtually no friction. It's available in 50,000- and 60,000-pound capacities with 30 feet of load cell cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (±7) ohm

Input Resistance:
700 (±7) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
NTEP
cFMus

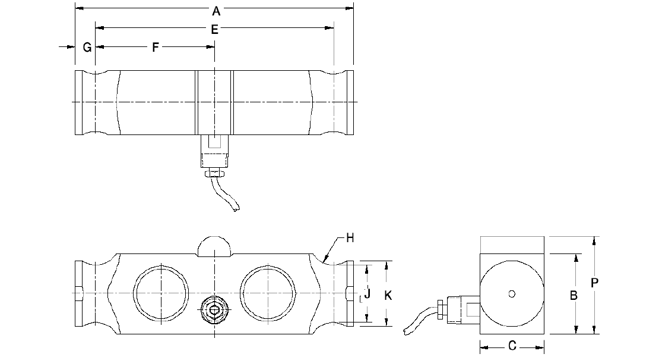

Rated Capacity	A	B	C	E	F	G	H	J	K	P
lb/in
50,000 to 60,000	8.50	2.45	1.95	7.25	3.63	0.63	0.75	1.75	2.00	3.00

Part #	Description	List Price
84156	50k 50000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST	List Price: $1,095.00
84157	60k 60000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10 M FM SST	List Price: $1,095.00
