VPG Revere 9523 Stainless Steel, Single-ended Beam Load Cell

9523 Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
1,000 lb: 0.016 in
2,500 lb: 0.03 in
4,000 lb: 0.041 in
5,000 lb: 0.035 in
10,000 lb: 0.042 in

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
cFMus

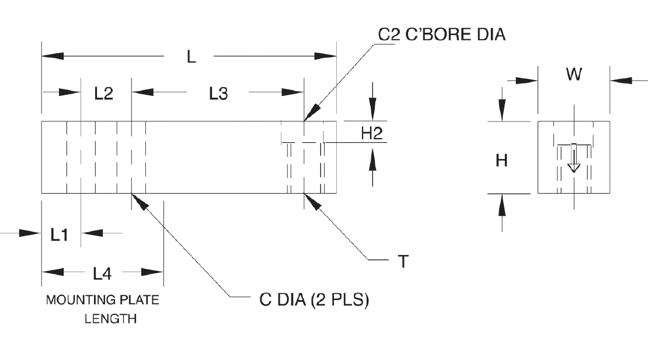

Rated Capacity	C	C2	H	H2	L	L1	L2	L3	L4	T	W
lb/in
1,000 to 4,000	0.53	0.81	1.25	0.56	6.12	1.62	1.00	3.00	3.38	1/2-20 UNF	1.25
5,000 to 10,000	0.78	1.19	1.50	0.59	7.71	1.71	1.50	3.75	4.08	3/4-16 UNF	1.50

Rated Capacity

lb/in

1,000 to 4,000

0.53

0.81

1.25

0.56

6.12

1.62

1.00

3.00

3.38

1/2-20 UNF

1.25

5,000 to 10,000

0.78

1.19

1.50

0.59

7.71

1.71

1.50

3.75

4.08

3/4-16 UNF

1.50

Part #	Description	List Price
17221	20P1 1000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI	List Price: $585.00
17222	2.5K-20P1 2500lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI	List Price: $585.00
17223	20P1 4000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI	List Price: $585.00
17224	20P1 5000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI	List Price: $645.00
17225	-20P1 10,000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI	List Price: $675.00

Part #

Description

List Price

17221

20P1 1000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $585.00

17222

2.5K-20P1 2500lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $585.00

17223

20P1 4000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $585.00

17224

20P1 5000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $645.00

17225

-20P1 10,000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI

List Price: $675.00

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
1,000 lb: 0.016 in
2,500 lb: 0.03 in
4,000 lb: 0.041 in
5,000 lb: 0.035 in
10,000 lb: 0.042 in

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
cFMus
