VPG Revere 9803 Stainless Steel, Link Beam Load Cell

9803 Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 3.5) ohm

Input Resistance:
700 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
NTEP
cFMus

Rated Capacity	A	D	F	G	H	J	K	L	P
lb/in
50,000 to 100,000	10.25	1.00	1.94	2.40	4.25	8.50	1.00	2.06	2.94

Rated Capacity

lb/in

50,000 to 100,000

10.25

1.00

1.94

2.40

4.25

8.50

1.00

2.06

2.94

Part #	Description	List Price
69489	50K-30P1 50,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M WW SST RTI	List Price: $1,375.00
69490	65K-30P1 65,000lb 30ft 3mV/V 700 Ohm NTEP IIIL 10M WW SST RTI	List Price: $1,375.00
124390	100k-30P1 100,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW SST RTI	List Price: $1,375.00

Part #

Description

List Price

69489

50K-30P1 50,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M WW SST RTI

List Price: $1,375.00

69490

65K-30P1 65,000lb 30ft 3mV/V 700 Ohm NTEP IIIL 10M WW SST RTI

List Price: $1,375.00

124390

100k-30P1 100,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW SST RTI

List Price: $1,375.00

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 3.5) ohm

Input Resistance:
700 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
NTEP
cFMus

VPG® Revere 9803 Stainless Steel, Double-ended Beam Load Cell

Standard Features

Approvals

9803 Load Cell Specifications

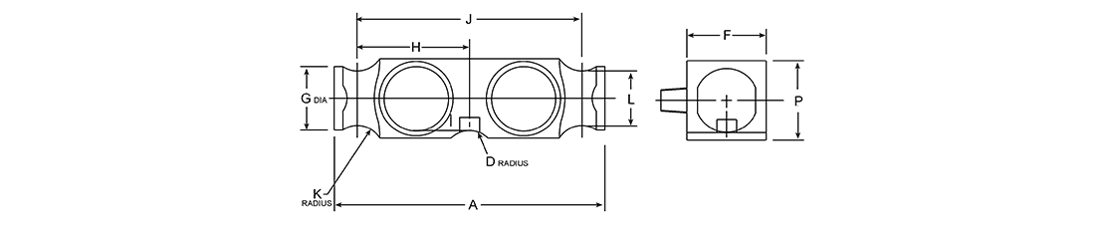

9803 Load Cell Dimensions
