VPG® Revere HPSM Stainless Steel, Single Point Load Cell

As of: Saturday, August 15, 2026

Standard Features

This is a low-profile single point load cell with a metric envelope, designed for bench scale and checkweigher applications in caustic or acidic environments. It's insensitive to off-center loading and withstands powerful washdowns. It's available in capacities ranging from 6 to 30 kilograms and includes 6 meters of cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

HPSM Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
6 m

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal

Warranty:
One-year limited

Approvals:
cFMus

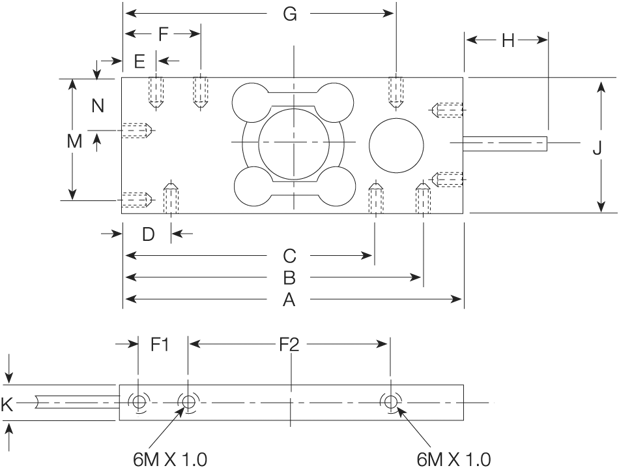

HPSM Load Cell Dimensions

Rated Capacity	A	B	C	D	E	F	F1	F2	G	H	J	K	M	N
kg/mm
6 to 30	130	117	98	23	14	33	19	75	108	25	50	19	44	20

Part #	Description	List Price
22334	-20P9 6kg 20ft 2mv/v 350 Ohm EW IP67 Metric SST WS RTI	List Price: $850.00
109131	12KG-20P9 12kg 20ft 2mv/v 350 Ohm FM EW IP67 Metric SST WS RTI	List Price: $850.00
115336	30KG-20P9 30kg 20ft RTI 2mv/v 350 Ohm Metric EW WS SST FM IP67	List Price: $950.00
