VPG Sensortronics 65040S Stainless Steel, Double-Ended Beam Load Cell

This model is an upgraded version of the VPG Sensortronics 65040A and is offered in stainless steel with a welded seal. The center-supported, double-ended beam design is compatible with Unilink/Translink™ mounts. It's ideal for applications with harsh chemicals and washdown conditions. The 65040S is available in capacities ranging from 25,000 to 75,000 pounds and is provided with 35 feet of cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
699 to 707 ohms

Input Resistance:
686 to 714 ohms

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
35 ft

Cable Diameter:
25,000 lb: 0.200 in
40,000 to 75,000 lb: 0.301 in
Polyurethane jacket

Cable Coloring:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
NTEP
cFMus

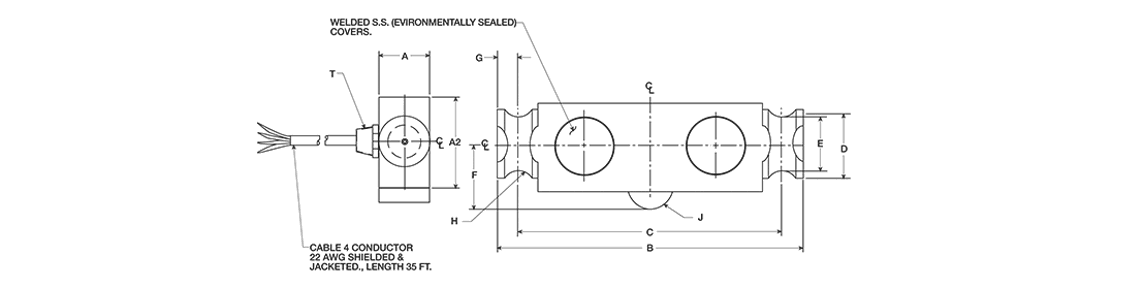

Rated Capacity	A	A2	B	C	D	E	F	G	H	J	T
lb/in
25,000 to 40,000	1.94	2.44	8.25	7.25	2.00	1.63	1.75	0.50	0.50	0.50	1/4-18 NPT
50,000 to 75,000	1.94	2.94	11.50	10.00	2.20	1.70	2.00	0.75	0.75	1.00	1/4-18 NPT

Part #	Description	List Price
45467	1000W 25000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67	List Price: $825.00
45468	1000W 40000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67	List Price: $995.00
45469	1000W 50000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67	List Price: $1,095.00
