VPG® Tedea-Huntleigh® 1130 Stainless Steel, Single Point Load Cell

As of: Tuesday, August 11, 2026

Standard Features

This is a stainless steel, single point load cell designed for high performance in harsh environments. It's designed for platform weighing but is an economical solution for many applications. The 1130 has capacities ranging from 7.5 to 100 kilograms, complete with 1.5, 3 or 8 meters of cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

1130 Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3) ohms

Input Resistance:
385 (±15) ohms

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
200% full scale, at center loading point

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.015 in

Cable Length:
1.5 m
3 m
25 ft

Cable Diameter:
0.200 in PVC jacket

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Max Platform Size:
15.75 × 15.75 in

Warranty:
One-year limited

Approvals:
NTEP (100 kg is non-NTEP)
cFMus

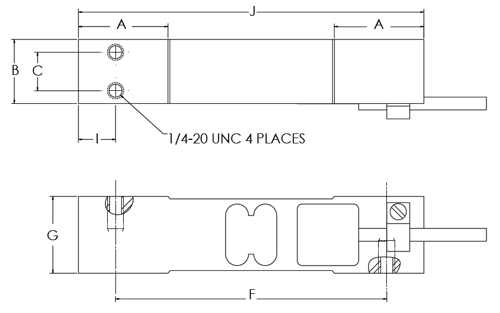

1130 Load Cell Dimensions

Rated Capacity	A	B	C	F	G	I	J
kg/mm
7.5 to 100	35.0	25.0	15.0	106.0	30.0	14.5	135.0

1.5m Cable

Part #	Description	List Price
53485	7.5kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM	List Price: $280.00
112374	10kg 1.5m 2mv/v 350 Ohm NTEP III 4S FM SST	List Price: $280.00
53486	15kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM	List Price: $280.00
53487	30kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM	List Price: $280.00
53488	50kg 2mV/V 350 OHM SST 1.5m NTEP 4000 III S FM	List Price: $280.00
53490	100kg 2mV/V 350 OHM SST 1.5m, FM	List Price: $280.00

3m Cable

Part #	Description	List Price
111381	7.5kg 3m 2mv/v 350 Ohm NTEP III 4S FM SST	List Price: $290.00
112365	10kg 3m 2mv/v 350 Ohm NTEP III 4S FM SST	List Price: $290.00
114132	15kg 3m 2mv/v 350 Ohm SST NTEP 4000 III S FM	List Price: $290.00
114133	30kg 3m 2mv/v 350 Ohm SST NTEP 4000 III S FM	List Price: $290.00

25 ft Cable Trimmed Outputs

Part #	Description	List Price
124512	15kg 25ft 2mv/v +/- 0.002% 350 Ohm SST NTEP 4000 III S FM	List Price: $325.00
124513	30kg 25ft 2mv/v +/- 0.002% 350 Ohm SST NTEP 4000 III S FM	List Price: $325.00
