VPG® Tedea-Huntleigh® 1320 Aluminum, Single Point Load Cell

As of: Sunday, July 26, 2026

Standard Features

Single point load cell featuring individual adjustment to eliminate corner errors and direct mounting of low-profile platforms to simplify the construction of floor scales, weigh bars, hanging scales and other types of weighing devices. Capacities range from 1,000 to 2,000 kg.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

1320 Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
415 (±15) ohm

Material/Finish:
Aluminum alloy

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.38 mm

Cable Length:
5 m

Cable Diameter:
5.9 mm
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Max Platform Size:
102 × 102 mm

Warranty:
One-year limited

Approvals:
NTEP
OIML (Available upon request)
cFMus
Ex (Available upon request)

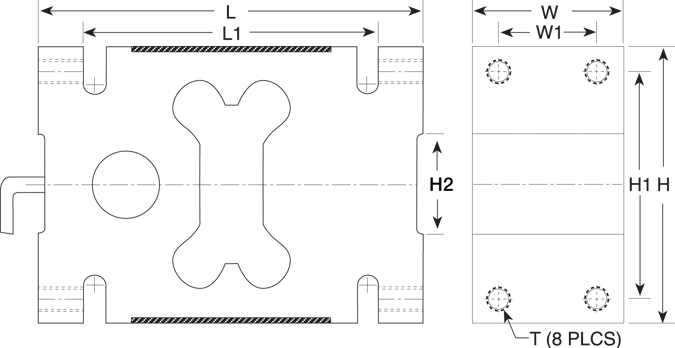

1320 Load Cell Dimensions

Rated Capacity	H	H1	H2	L	L1	T	W	W1
kg/mm
1,000 to 2,000	126.0	95.0	45.0	176.0	135.0	M16 x 2-6H	76.0	46.0

Part #	Description	List Price
29908	1000KG 5m 2mV/V 350 OHM NTEP CL G AL IP 65 FM	List Price: $795.00
29909	1500KG 5m 2mV/V 350 OHM NTEP CL G AL IP 65 FM	List Price: $795.00
29910	2000kg 5m 2mV/V 350 OHM NTEP CL G AL IP 65 FM	List Price: $795.00
