VPG® Tedea-Huntleigh® 1510 Stainless Steel, Single Point Load Cell
As of: Thursday, July 9, 2026
Standard Features
A stainless steel, welded-seal single point load cell ideally suited for washdown applications. Suitable for use with a variety of platform and monorail scales in sanitary environments. Capacities range from 100 to 500 kg.
1510 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Cable Color Code: Max Platform Size: Warranty: Approvals: |

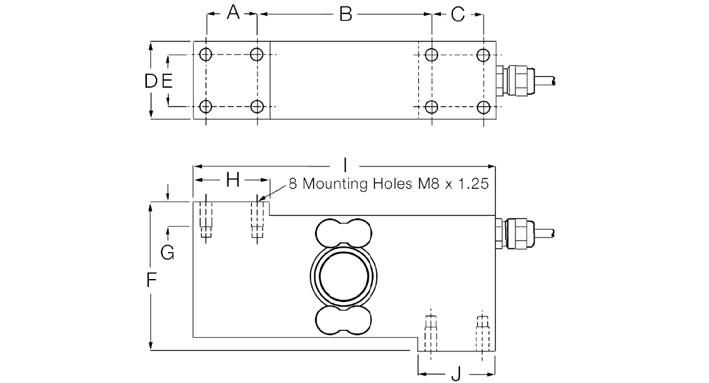

1510 Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||
| 100 to 500 | 25.4 | 86.3 | 25.4 | 38.1 | 25.4 | 72.8 | 11.9 | 38.1 | 149.9 | 38.1 |
1510 Load Cell used in the Monorail Scale Dimensions
OIML
| Part # | Description | List Price |
|---|---|---|
| 65851 | C3 3M 2mV/V 350 OHM Tedea-Huntleigh SST WS IP68 | List Price: $850.00 |
| 65852 | C3 3M 2mV/V 350 OHM Tedea Huntleigh SST WS IP68 | List Price: $850.00 |
| 65853 | C3 3M 2mV/V 350 OHM Tedea Huntleigh SST WS IP68 | List Price: $850.00 |
NTEP Certified
| Part # | Description | List Price |
|---|---|---|
| 167585 | 20ft 2mv/v 350 Ohm TH SST WS NTEP III S Monorail | List Price: $850.00 |
