VPG® Tedea-Huntleigh® 620 Stainless Steel, S-beam Load Cell

As of: Monday, July 20, 2026

rl-VPG-Tedea-huntleigh-620-s-beam-load-cell

Standard Features

Ideally suited for harsh environments, lever conversions, hoppers/tanks, vibratory feeders, general-purpose weighing and force measurement applications. The stainless steel, welded cavity design provides protection against water and corrosive materials. Capacities range from 500 to 2,000 kg. Complete with 5 m of load cell cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

620 Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
5 m

Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense

Warranty:
One-year limited

Approvals:
NTEP
Ex (Available upon request)
OIML (Available upon request)

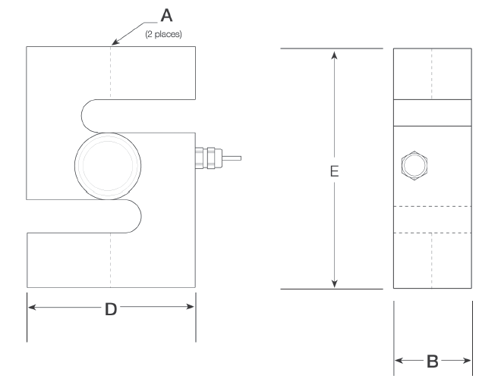

620 Load Cell Dimensions

Rated Capacity	A	B	D	E
kg/mm
500 to 1,000	1/2-20 UNF	33.5	73.2	94.0
2,000	3/4-16 UNF	33.5	73.2	94.0
Metric threads available

Part #	Description	List Price
36389	500kg 5M TH 2mV/V 350 OHM NTEP IP68 III 3 S/ III 5 M SST WS FM	List Price: $895.00
36390	1000kg 5m TH 2mV/V 350 OHM NTEP IP68 III 3 S/III 5 M SST WS FM	List Price: $895.00
36391	2000kg 5m TH 2mV/V 350 OHM NTEP IP68 III 3 S/III 5 M SST WS FM	List Price: $895.00
