Wire Rope
As of: Tuesday, July 28, 2026
Standard Features
Wire Rope Assemblies
- Wire rope assemblies provide better alignment and greatly increase load cell repeatability. In addition, they act as natural vibration dampeners.
Cardinal Wire Rope Assemblies
- EL208 Cardinal wire rope assembly: Used on 7,500 lb capacity FH model and 8,000 lb capacity EP model
- EL209 Cardinal wire rope assembly: Used on 20,000 lb capacity FH and EP models. May also be used on 15,000 lb capacity FH and EP models
Custom Wire Ropes
- When ordering, please complete Custom Wire Rope Definition form and provide a sample if possible, and specify the required tension rating and total capacity
Wire ropes should not be exposed to shock loads, chemicals or twisting. Chains or rods should be used as safety backup in case of catastrophic failure.
Wire Rope Assemblies Dimensions
| Part # | A | B&C | D | E | F | G | H | Safe Load* |
|---|---|---|---|---|---|---|---|---|
| 17760 | 0.87 in | 0.50 in | 0.87 in | 1/4-20 UNC-2A | 1/4-28 UNF-2A | 0.12 in | 4.00 in | 400 lb |
| 17762 |
1.25 in |
0.50 in | 1.25 in | 3/8-16 UNC-2A | 3/8-24 UNF-2A | 0.18 in | 5.00 in | 850 lb |
| 17766 | 1.62 in | 0.50 in | 1.62 in | 1/2-13 UNC-2A | 1/2-20 UNF-2A | 0.25 in | 6.50 in | 1,400 lb |
| 17765 | 1.62 in | 0.50 in | 1.62 in | 1/2-13 UNC-2A | 1/2-20 UNF-2A | 0.25 in | 5.50 in | 1,400 lb |
| 17764 | 1.00 in | - | 1.37 in | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 0.25 in | 4.00 in | 1,400 lb |
| 17768 | 2.00 in | - | 2.50 in | 3/8-24 UNF-2A | 3/8-24 UNF-2A | 0.12 in | 5.50 in | 400 lb |
| 17769** | 1.25 in | - | 0.75 in | 1/4-28 UNF-2A | 1/4-28 UNF-2A | 0.12 in | 3.00 in | 400 lb |
| 17771** | 1.25 in | - | 0.75 in | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 0.25 in | 3.00 in | 1,400 lb |
| 115292*** | 1.25 in | - | 0.75 in | 1/4-28 UNF-2A | 1/4-28 UNF-2A | 0.12 in | 3.00 in | 300 lb |
| 33084**** | 1.31 in | - | 1.00 in | 1/2-20 UNF | 1/2-20 UNF | 0.125 in | 3.62 in | 850 lb |
| *Do not exceed the safe load **Used with Rice Lake Weighing Systems flexure bases ***Stainless Steel ****Used with Rice Lake Weighing Systems FXB flexure bases |
||||||||
Cardinal Wire Rope Assemblies Dimensions
| Part # | A | B | C | D | E | F | G | H | I | J | K | L&M | N | Safe Load* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | ||||||||||||||
| 17763 | 1.50 | — | 0.50 | 1.50 | — | 1/2-13 UNC | 0.25 | 6.00 | 0.81 | 0.43 | — | — | 0.43 | 1,400 lb |
| 17767 |
1.71 |
0.75 | 0.09 | 2.00 | 0.43 | 6.31 | 3/4-10 UNC-2A | 1.25 | — | 0.60 | 0.50 | 0.625 | 0.375 | 2,880 lb |

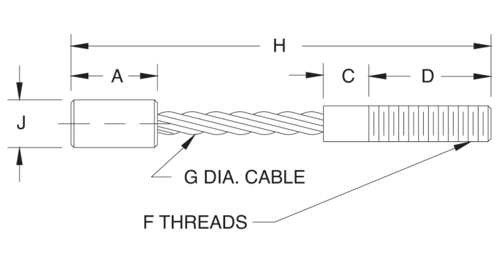

Custom Wire Ropes Dimensions
When ordering please complete Custom Wire Rope Definition Form
Wire Rope Assemblies
| Part # | Description | List Price |
|---|---|---|
| 17760 | NFx4L 400 lb Steel Galvanized Jam Nut INCL | List Price: $58.00 |
| 17762 | NFx5L 850 lb Steel Galvanized Jam Nut INCL | List Price: $64.00 |
| 17766 | NFx6-1/2L 1,400 lb Steel Galvanized Jam Nut INCL | List Price: $66.00 |
| 17765 | NFx5-1/2L 1,400 lb Steel Galvanized Jam Nut INCL | List Price: $79.00 |
| 17764 | NFx4L 1,400 lb Electro Scale Steel Galvanized Jam Nut INCL | List Price: $95.00 |
| 17768 | NFx5-1/2L 400 lb Steel Galvanized Jam Nut INCL | List Price: $143.00 |
| 17769 | NFx3L 400 lb RLWS FB Steel Galvanized Jam Nut INCL | List Price: $159.00 |
| 17771 | NFx3L 1,400 lb RLWS FB Steel Galvanized Jam Nut INCL | List Price: $69.00 |
| 115292 | NF x 3L 350lb RLWS FB stainless steel Jam nut incl | List Price: $111.00 |
| 33084 | NFx3-5/8 Long SST Jam Nuts Included | List Price: $87.00 |
Cardinal Wire Rope Assemblies
| Part # | Description | List Price |
|---|---|---|
| 17763 | DIAx6L Cardinal FH/EP Steel Galvanized Jam Nut INCL | List Price: $126.50 |
| 17767 | DIAx6-5/16L Cardinal FH/EP Steel Galvanized Jam Nut INCL | List Price: $247.50 |
