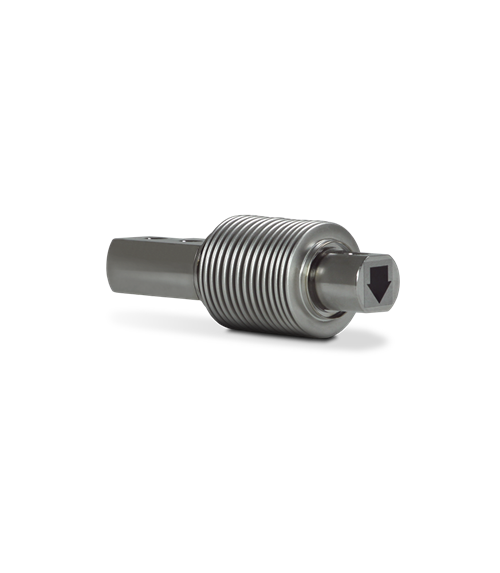

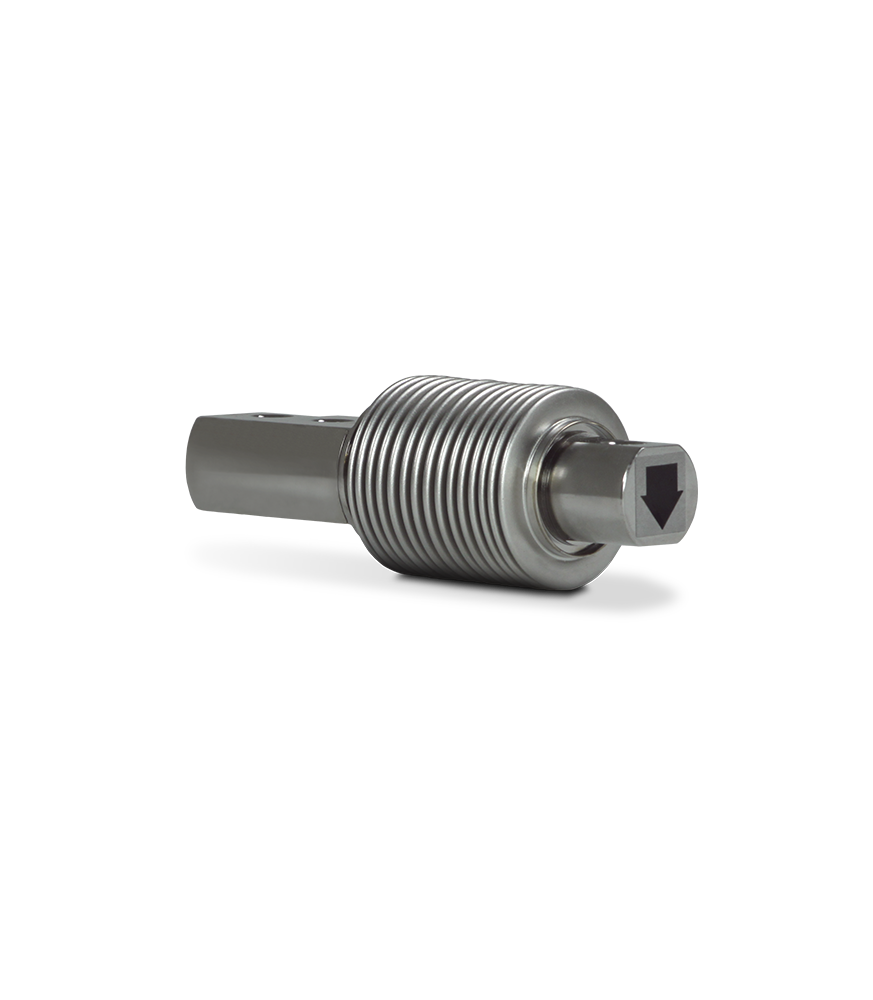

Rice Lake RLHBB Stainless Steel, Single-Ended Beam Load Cell
Stainless steel construction, hermetic sealing and polyurethane shielded cable enable the RLHBB to function in harsh environments while maintaining its operating specifications. Suitable for low-profile platforms, weighing and packing machines, electromechanical conversions and general-purpose weighing applications. OIML C3-certified capacities range from 5 kg to 500 kg. Complete with 3 m (9.8 ft) of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
![NTEP Logo](/media/3d5dfxef/ntep_logo.png?height=50)
![OIML Logo](/media/ekrmbgkx/oiml_logo_2022.png?height=50)
![LOGO FM CUS](/media/5urfkf32/logo_fm_cus.png?height=50)
WARNING: Cancer and Reproductive Harm California Proposition 65
RLHBB Load Cell Specifications
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: Cable Diameter: |
Cable Color Code: Warranty: Approvals: |

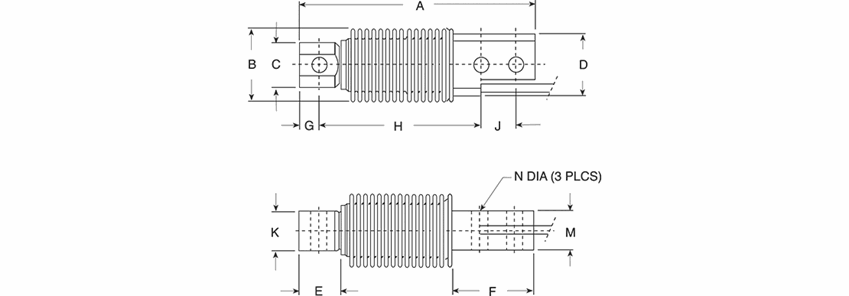

RLHBB Load Cell Dimensions
Rated Capacity | A | B | C | D | E | F | G | H | J | K | M | N |
---|---|---|---|---|---|---|---|---|---|---|---|---|
kg/mm | ||||||||||||
5-500 | 120.0 | 40.0 | 23.0 | 32.0 | 20.5 | 45.5 | 10.0 | 82.0 | 18.0 | 20.0 | 20.0 | 8.20 |
Resources / Downloads
Sales Literature
Title | Collateral Wizard | Request | Download | Category | |
---|---|---|---|---|---|
Load Cell Wiring Guide | Request | Download | Load Cells | ||
Load Cell Selection Guide | Request | Download | Load Cells|Weigh Modules | ||
Load Cell and Weigh Module Selection Guide | Request | Download | Load Cells|Weigh Modules | ||
Load Cell and Weigh Module Handbook | Request | Download | Load Cells|Weigh Modules |
Parts
OIML
Part # | Description | List Price | Cart |
---|---|---|---|
32678 | Load Cell,CLB RLHBB-C3- 5kg 3M 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM |
Call for price |
|
31260 | Load Cell,SEB RLHBB-C3- 50kg 50kg 3m 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM |
List Price: $525.00 |
|
31262 | Load Cell,SEB RLHBB-C3- 200kg 200kg 3m 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM |
Call for price |
|
31263 | Load Cell,SEB RLHBB-C3- 250kg 250kg 3m 2mV/V 350 OHM OIML-C3 SST HS IP66/68 FM |
Call for price |
Related Products
![rl-RL9018SS-load-cell](/media/bjtjocwr/rl-rl9018ss-load-cell.png?anchor=center&mode=crop&width=450&rnd=133263217900470000)
Rice Lake RL9018SS Stainless Steel, Single-Ended Beam Load Cell
The Rice Lake RL9018SS is a stainless steel, single-ended beam load cell that is hermetically sealed with an IP68 rating. It has NTEP approval for capacities from 5 kg to 500 kg. Each load cell comes with 3 m of cable.
![rl-HBM-Z6-load-cell](/media/grak2vz0/rl-hbm-z6-load-cell.png?anchor=center&mode=crop&width=450&rnd=133271702101930000)

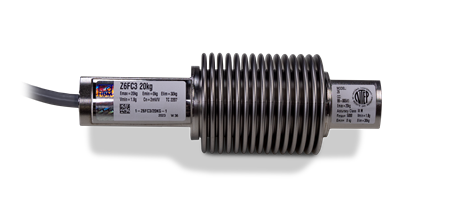

HBM Z6 Stainless Steel, Single-Ended Beam Load Cell
