Product PDF

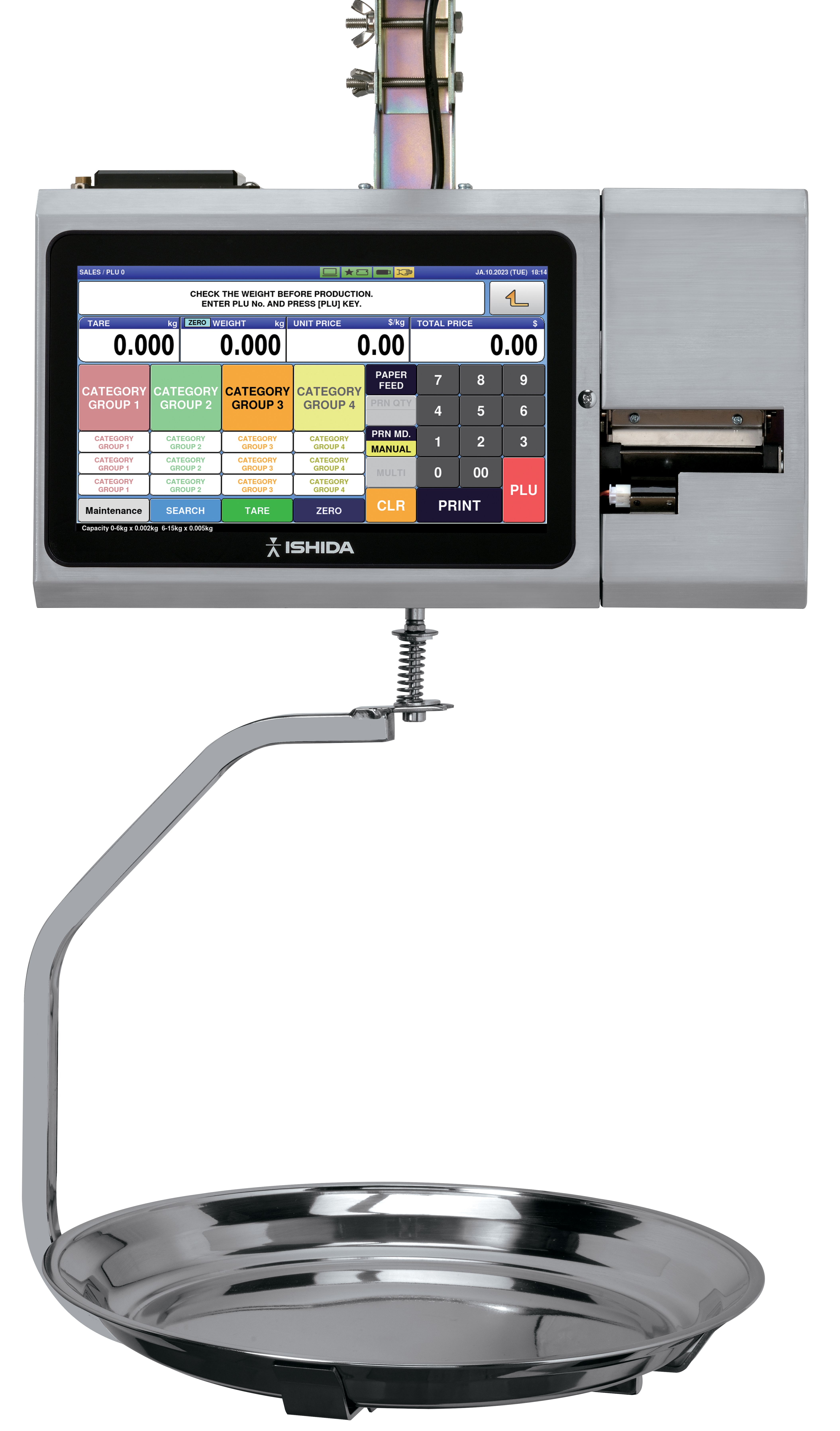

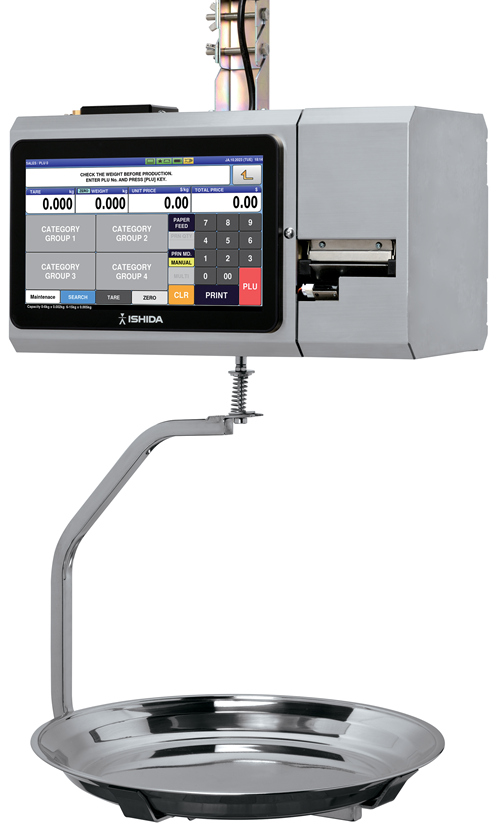

Ishida Uni-8H Hanging Price Computing Scale

  • Large color touchscreen (10 in)
  • Adjustable touchscreen viewing angle
  • Play videos with sound on customer and operator display
  • 10 in (800 × 600) operator display and 7 in (800 × 480) customer display
  • Dual-range weighing (0 to 15 lb × 0.005 lb, 15 to 30 lb × 0.01 lb)
  • Label printing: die-cut labels and/or continuous paper
  • Customizable label formats: 999
  • Intranet browsing capabilities for order entry, recipe lookup and more
  • PC-based scale operating system
  • Solid state drive eliminates moving parts
  • SD memory card slot
  • SSD memory 250 MB
  • Up to 120 mm/sec print speed
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Barcodes: EAN/UPC 8/12/13, ITF FS1, QR CODE, GS1, CODE128 and EAN128
  • Compatible with many third-party software communication packages

Options

  • ScaleLink Pro 5 scale management software, including label design, data backup and remote diagnostics
  • Seafood/Produce platter
  • Linerless label kit
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US
WEB Uni 8 Hanging

Capacity (Multi-interval):
0 to 15 lb × 0.005 lb / 15 to 30 lb × 0.01 lb (0 to 6 kg × 0.002 kg / 6 to 15 kg × 0.005 kg)

Capacity (Single Range):
0 to 30 lb × 0.01 lb (0 to 15 kg × 0.005 kg)

Scale Platter Size:
15 in (382 mm) dia.

Display Size:
Operator: 10.1 in
Customer: 7 in

Display Systems:
Capacitive touch Panel

Media Type:
Die-cut label
Continuous label/linerless label/receipt

Media Size:
Outside Diameter of roll:
Max. 100 mm (4.0 in) or less
Inner core diameter:
40 mm +/-1 mm (1.6 in)
Width: 30-64 mm
(linerless label: 60 mm)
Length: 30-200 mm
(linerless label: 30-175 mm)

Cassette:
Non-cassette (Virtual cassette function)

Thermal Head:
2.2 in (56 mm)

Resolution:
8 dot/mm (200 dpi)

Printer Speed:
MAX: 120 mm/sec

Printing Width:
MAX: 56 mm

Printing Length:
MAX: 200 mm

Bar Code Type:
JAN, EAN, EAN128, CODE128, UPC, ITF, GS1, QR

I/O PORT:
TCP/IP, USB, RS-485, Connector for external scale

O/S:
Linux

Communication:
Ethernet, wireless

Approvals:
NTEP
cULus

Bench Dimensions
A 1.8 in (45 mm) E 14.6 in (370 mm)
B 1.8 in (45 mm) F 8.1 in (207 mm)
C 28.3 in (719 mm) G 15.0 in (382 mm)

Resources / Downloads

Title Download Email
Ishida Uni-8H Hanging Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-8 User Manual A Download Email No

Title Collateral Wizard Request Download Email Category
Ishida Uni-8 Series Request Download Email Retail Equipment

Parts

Part # Description List Price Cart
220032 Retail Scale, Uni-8 Hanging, 2.4/5Ghz Wifi, 10.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

List Price: $4,985.00

Options

Options/Accessories

Part # Description List Price Cart
46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida

List Price: $125.00
46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida

List Price: $175.00
170541 Option,Liner Free Kit Uni-3 Ishida

List Price: $49.50
