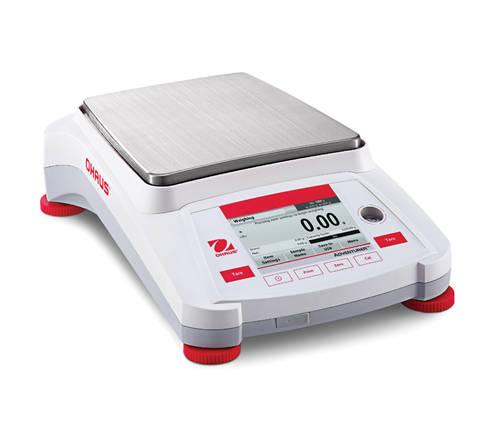

Adventurer Series, OHAUS Precision Balance

  • Stable, accurate and fast operation, ensuring optimal weighing results
  • Color touchscreen with 4.3 in (109 mm) display size
  • Dual USB ports and RS-232 provide connectivity options
  • Space-saving, top-mounted draft shield on analytical models
  • Real-time clock with GLP/GMP data
  • Below minimum sample weight indication with minimum weight feature
  • AutoCal™ automatic internal adjustment weight for optimized weighing performance
Request More Information
Adventurer Series Precision - Toploader Balance

Simple, Uncomplicated Precision Balance

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer Series precision balance incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class.

Weighing Units:
Milligram, gram, kilogram, ounce, pound, carat, pennyweight, troy ounce, grain, newton, Hong Kong tael, Singapore tael, Taiwan tael, momme, tical, baht, mesghal, tola, custom

Operating Modes:
Counting, weighing, dynamic weighing, checkweighing, percent weighing, totalization, display hold, density determination, formulation

Power:
100 to 240 VAC, 0.3A, 50/60 Hz AC adapter

Stabilization Time:
Approx. 1 second

Calibration Weight:
AX223: 200 g
AX423: 400 g
AX523: 500 g
AX622: 600 g

Temperature:
Operating:
10 °C to 30 °C (50 °F to 86 °F)

Est. Weight:
AX223, AX423, AX523: 12.8 lb (5.8 kg)
AX622: 14.8 lb (6.5 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

AX223

220 g

0.001 g

0.001 g

0.2 mg

5.1 in
(130 mm)

13.93 × 13.39 × 9.05 in
(354 × 340 × 230 mm)

164626

AX423

420 g

0.001 g

0.001 g

0.002 mg

5.1 in
(130 mm)

13.93 × 13.39 × 9.05 in
(354 × 340 × 230 mm)

164628

AX523

520 g

0.001 g

0.001 g

0.002 mg

5.1 in
(130 mm)

13.93 × 13.39 × 9.05 in
(354 × 340 × 230 mm)

164630

AX622

620 g

0.01 g

0.001 g

0.002 mg

6.9 × 7.7 in
(175 × 195 mm)

13.93 × 3.94 × 9.05 in
(354 × 100 × 230 mm)

164633



Resources / Downloads

Title Download Email
Analytical Adventurer Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Adventurer Series Manual Download Email Precision Balances No

Parts

Part # Description List Price Cart / Quote
164626 Balance,Ohaus, AX223 Precision, Adventurer, 220g x 0.001g, 120VAC Adapter, Internal Calibration Adjustment.

List Price: $2,400.00
164628 Balance,Ohaus AX423 Precision, Adventurer, 420g x 0.001g, 120VAC Adapter, Internal Calibration Adjustment

List Price: $2,900.00
164630 Balance,Ohaus AX523 Precision, Adventurer, 523g x 0.001g, 120VAC Adapter, Internal Calibration Adjustment.

List Price: $3,175.00
164633 Balance,Ohaus AX622 Toploader, Adventurer, 620g X 0.01g, 120V adapter

List Price: $1,820.00

Options

Part # Description List Price Cart / Quote
77712 Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery

List Price: $260.00
70406 Balance OPT,Cable 9-Pin Serial Ext

List Price: $260.00
191875 Balance OPT,Security Device for Pioneer PX

List Price: $310.00
191879 Balance OPT, USB Cable For Pioneer PX

List Price: $260.00
