Orion 2C/Orion 3A Precision Pneumatic Controllers

  • System working pressure:
    • Orion 2C, non-cased/cased versions: Up to 3,000 psi
    • Orion 3A, non-cased version: Up to 10,000 psi
    • Orion 3A, cased version: Up to 10,000 psi based on model
  • Orion 2C: Aluminum body, Buna-N o-rings standard
  • Orion 3A: Stainless steel body, Viton o-rings standard
  • Precision patented vernier to precisely “dial in” a selected pressure
  • Fingertip closed system pressure adjustment to better than 0.0005 psi
  • Soft seat construction and adjustable stop; immune to over tightening
  • Two low-torque, fine micro-metering valves with positive shut off
  • Two test ports allow for multiple applications:
    • Non-cased models (see below for optional seal plug)
    • Cased models, number of test ports based on version

Applications

  • Gas applications
  • Operation to 10,000 psi, based on model
  • Test stands
  • OEM pressure control applications
Request More Information
Portals 0 Products 750280Ebfc5f4874b3797792fb2758ea Orig

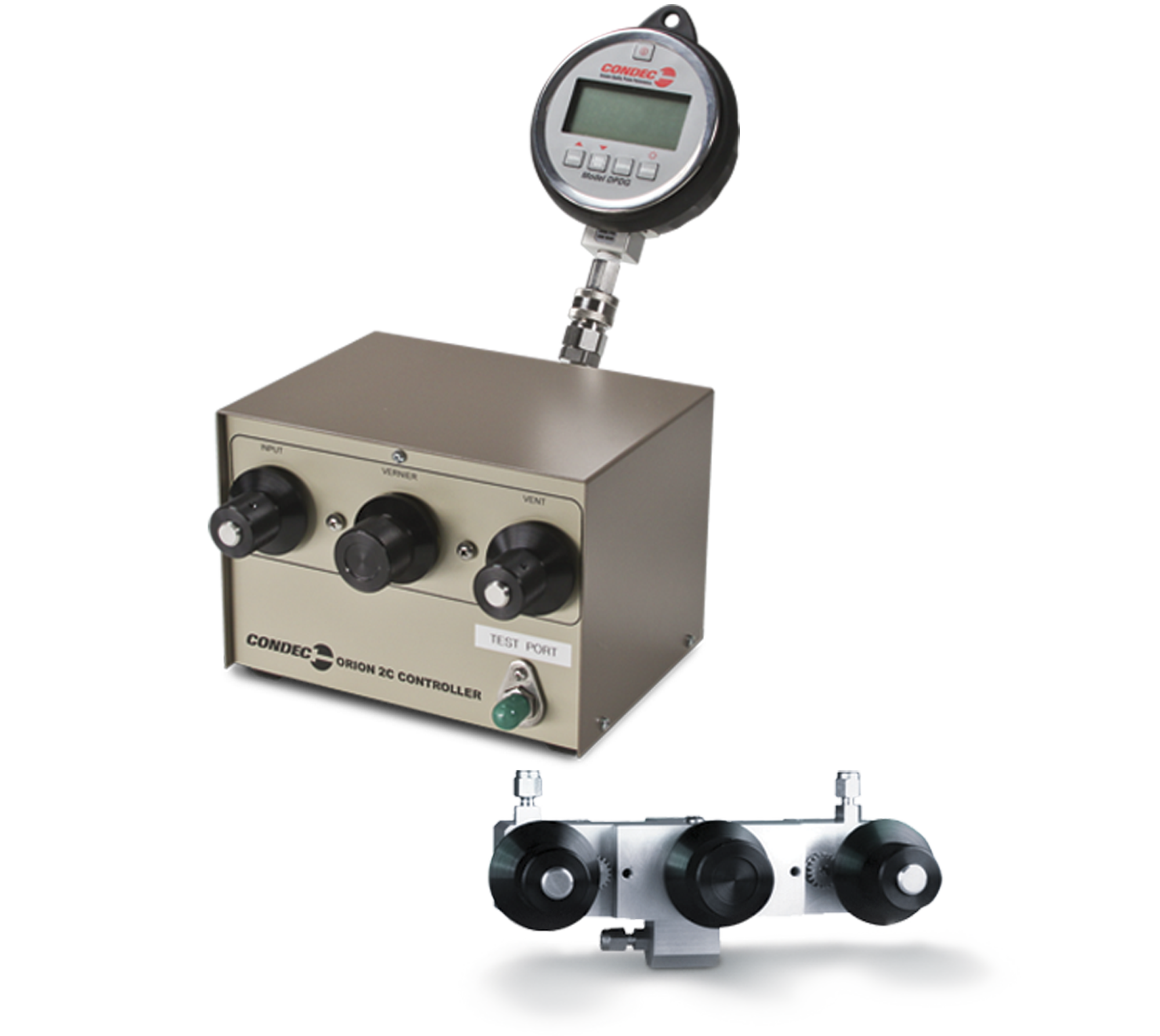

Ideal for use in testing environments, the Orion 2C and Orion 3A pneumatic pressure controllers provide unrivaled performance in a variety of industrial applications.

Both the 2C and 3A pneumatic pressure controllers utilize an exclusive precision vernier for exact “dial in” of pressure settings. These easy-to-use manifolds feature soft seat construction and an adjustable stop that resists over tightening. Fingertip adjustment provides ultra-fine measurement that eliminates overshoot. Two test ports on panel mountable units allow for multiple applications.

The Orion 2C pneumatic pressure controller offers up to 3000 psi and vacuum, while the all stainless steel Orion 3A pneumatic pressure controller controls up to 10,000 psi and vacuum. Cased models have a test port located on front as well as an input and vent port on back of unit. Some versions also have an additional test port on back of unit. Regardless of the environment, choose the industry-leading Orion pneumatic pressure controllers for high-quality, high-pressure control.

Using an adaptor assembly, to combine one of the cased models with a DUT, Hand-Held or Digital Gauge, will provide a means of attaining accurate readings and ultra-fine “dial in” of target value.

Pressure Range:
0 to 3000 psi and vacuum

Proof Pressure:
4000 psi

Pressure and Vent Valve Orifice:
0.032

Cv Factor:
0.007

Mechanical Rotation:
3.5 turns, nominal

Torque:
Finger tip adjust

Vernier Volume:
0.5 cubic inch, nominal

Vernier Mechanical Rotation:
16 turns, nominal

Adjustable Sensitivity:
0.0005 psi, minimum

Vernier Torque:
Finger tip adjust to 3000 psi

Construction:
Body: Aluminum, clear anodize
Knobs: Aluminum, black anodize
O-rings: Buna-N standard, others available
Ports:
Orion 2C (uncased version, 55283):
Test port #1, input port and output port -fitting (59716) for 1/8: OD tube
Test port #2, 7/16-20 UNF female (MS33649-04) straight thread.
Optional: use one each 68862 & 61035 to plug
Orion 2C (cased version, 89216):
Input port, two test ports and vent port - male 7/16-20
AN-4, stainless steel
All other parts 300 series stainless steel

Case Material:
16 gauge painted steel

Pressure Range:
0 to 10,000 psi and vacuum (uncased version, 55287)
0 to 6000 psi and vacuum (cased version, 159874)
0 to 10,000 psi and vacuum (cased version, 113949)

Proof Pressure:
15,000 psi (uncased version, 55287)
9000 psi (cased version, 159874)
11,000 psi (cased version, 113949)

Pressure and Vent Valve Orifice:
0.032

Cv Factor:
0.007

Mechanical Rotation:
3.5 turns, nominal

Torque:
Finger tip adjust

Vernier Volume:
0.4 cubic inch, nominal

Vernier Mechanical Rotation:
15 turns, nominal

Adjustable Sensitivity:
0.0005 psi, minimum

Vernier Torque:
Finger tip adjust to 10,000 psi

Construction:
Body: 300 series stainless steel
Knobs: Aluminum, black anodize
O-rings: Viton standard, others available
Ports:
Orion 3A (uncased version, 55287)
Test port #1, input port and output port - stainless steel fitting (59731) for 1/8 in. OD tubing
Test port #2, 7/16-20 UNF female (MS33649-04) straight thread. Optional; use one each 68862 & 54854 to permanently plug
Orion 3A (cased version, 159874):
Input port, two test ports and vent port - 7/16-20 AN-4 males, stainless steel
Orion 3A (cased version, 113949):
Input port and two test ports- stainless steel fitting for 1/4 in. OD tubing
Vent port - stainless steel fitting for 1/8 in. OD tubing
All other parts 300 series stainless steel

Case Material:
16 gauge painted steel

Resources / Downloads

Title Download Email
Condec Orion 2C/Orion 3A Catalog Page Download Email

Parts

Part # Description List Price Cart
89216 Controller ASSY,2C Cased Unit, Pressure/Vacuum Assembly, Vacuum thru 3000 PSI Max Input, Ports; One Input, Two Output, One Vent, Buna N O-Rings

Call for price
159874 Controller ASSY, 3A Orion 3A Pressure/Vacuum Cased Assembly, Vacuum to 6,000 PSI Max Input, with Viton O-Rings, One Rear Input Port W/Filter, Two Test Ports One Front/One Rear W/Filters, one Vent Port, all ports 7/16-20 AN-4 male stainless steel

Call for price
159875 Controller ASSY, 3A Orion 3A Pressure/Vacuum Cased Assembly, Vacuum to 7,500 PSI Max Input, with Viton O-Rings, One Rear Input Port W/Filter 1/8 NPT male, Two Test Ports One Front/One Rear W/Filters 1/8 NPT male, one Vent Port 7/16-20 AN-4 male, ports stainless steel

Call for price
159876 Controller ASSY, 3A Orion 3A Pressure/Vacuum Cased Assembly, Vacuum to 7,500 PSI Max Input, with Viton O-Rings, One Rear Input Port W/Filter 1/4 NPT male, Two Test Ports One Front/One Rear W/Filters 1/4 NPT male, one Vent Port 7/16-20 AN-4 male, ports stainless steel

Call for price
113949 Controller ASSY,3A Orion 3A Pressure/Vacuum Cased Assembly, Vacuum to 10,000 PSI Max Input, with Viton O-Rings, One Rear Input Port W/Filter for 1/4 inch dia tubing, Two Test Ports One Front/One Rear W/Filters for 1/4 inch dia tubing One Vent Port for 1/8 inch dia tubing, ports stainless steel NOTE: Customer Supplied 1/4 inch dia tubing must be properly rated.

Call for price
55283 Controller ASSY,Orion 2C Pneumatic Pressure Non-Cased Kit, vacuum-3K PSI, with Buna-N O-rings - Source 3000 UPC5000 UPS3110 UPC5010 - NOTE: to seal test port #2 order 1 ea. 68862 & 61035 or for 1/8 tube fitting order 1 ea. 54854 & 59982

Call for price
55287 Controller ASSY,Orion 3A Pneumatic Pressure Non-Cased Kit, vacuum-10K PSI with Viton O-rings - UPC5200 UPC5210 PIN8000 PIN8010 - NOTE: to seal test port #2 order 1 ea. 68862 & 54854 or for 1/8 tube fitting order 65485

Call for price

Options

Part # Description List Price Cart
68859 LIT,Manual Orion-2C Orion-2D Orion-3A and MPV-10K Adjustment and Maintenance

Call for price
68862 Fitting,Flare Tube/Hose Swivel Plug 1/4 Tube OD 7/16-20 Thread 1/2 Hex .80 Long SST Transducer Port

Call for price
55596 O-Ring,AS568A Dash No 012 Fluorocarbon (Viton) 90 Durometer Color Black w/White Dot

List Price: $2.00
61035 O Ring,Preformed Packing Hydraulic

Call for price
54854 Seal,Cheat Pad UPC5200 Source 3000, Orion 2C Cased Unit, non-cased Orion 3A and seal plug 68862, also adjustable adapters 120422 and 120462

Call for price
58499 Kit,O-ring Buna-N Nitrile, Standard Replacement Kit For Orion 2C or Orion 2D Consult Factory or Lit Sheet 65308 for Use With Orion 3A or MPV-10K

Call for price
55277 Kit,-O-ring Viton Fluorocarbon, Standard Replacement Kit For Orion 3A or MPV-10K Consult Factory or Lit Sheet 65308 for Use With Orion 2C or 2D

Call for price
120422 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Female Quick-Disconnect to 1/4-37 Deg AN-4 Female other end, 3000 PSI, Temp Range 0 Deg F to 200 Deg F, for hands-free display reading when used between Orion 2C Cased Unit Test Port and Hand-Held or Digital Gauge utilizing Quick-Disconnect Fitting PN 55394 or 130239. No installation tools required.

Call for price
120462 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/8 NPT Male to 1/4-37 Deg AN-4 Female other end, 5000 PSI, Temp Range 40 Deg F to 200 Deg F, for hands-free display reading when used between Orion 2C Cased Unit Test Port or PIN8000 Quick-Connect 55542 and Hand-Held or Digital Gauge with 1/8 NPT Female thread, requires (included) one Cheat Seal 54854

Call for price
55394 Fitting,Test Port Quick Disconnect Hose Fitting Male Coupling Body to 1/4 NPT Female SST 6500 PSI & Below for UPC5000 UPC5010 Source 3000 Adapter for DPDG Gauges to Mate with Source 3000

Call for price
130239 Fitting, Test Port Quick Disconnect Hose Fitting Male Coupling Body to 1/8 NPT Female SST 6500 PSI & Below for UPC5000 UPC5010 Source 3000

Call for price
