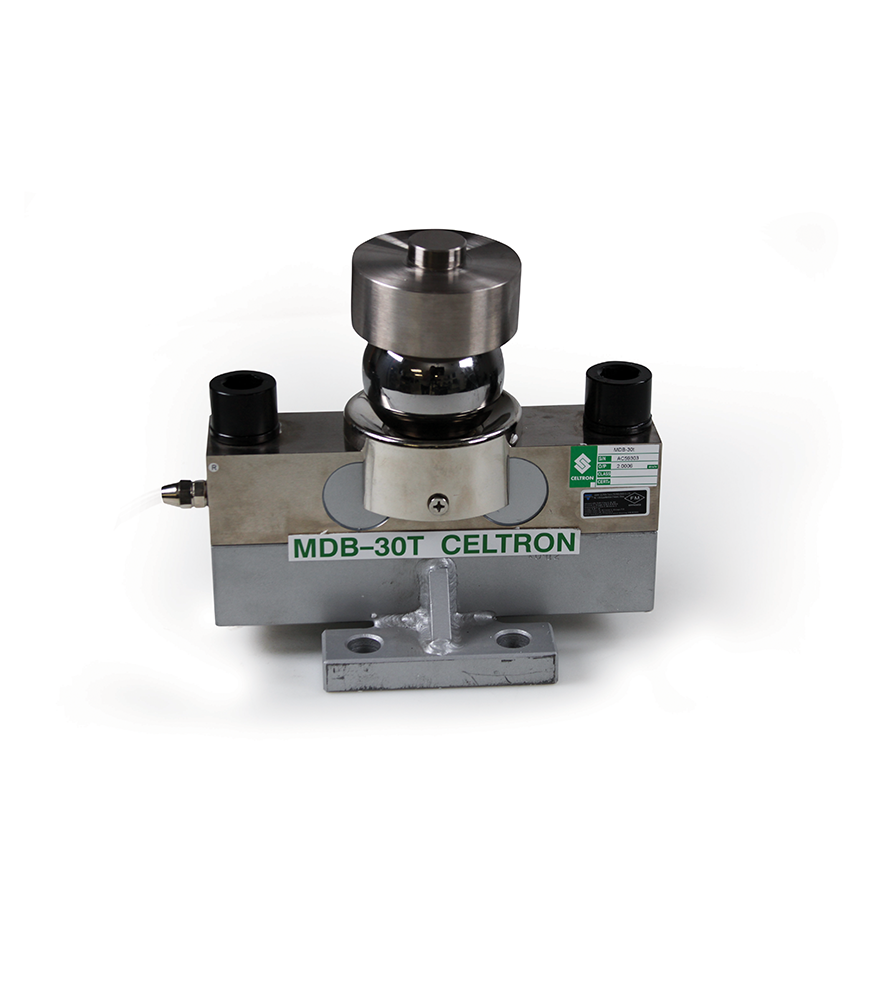

VPG Celtron MDB Alloy Steel, Double-Ended Beam Load Cell

Full Scale Output:
2 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High alloy steel, nickel plated

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
50% full scale

Rated Excitation:
5 to 10 VDC (15 VDC max)

Nonlinearity:
0.030% full scale

Hysteresis:
0.030% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
13.5 m

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
