Automated Systems

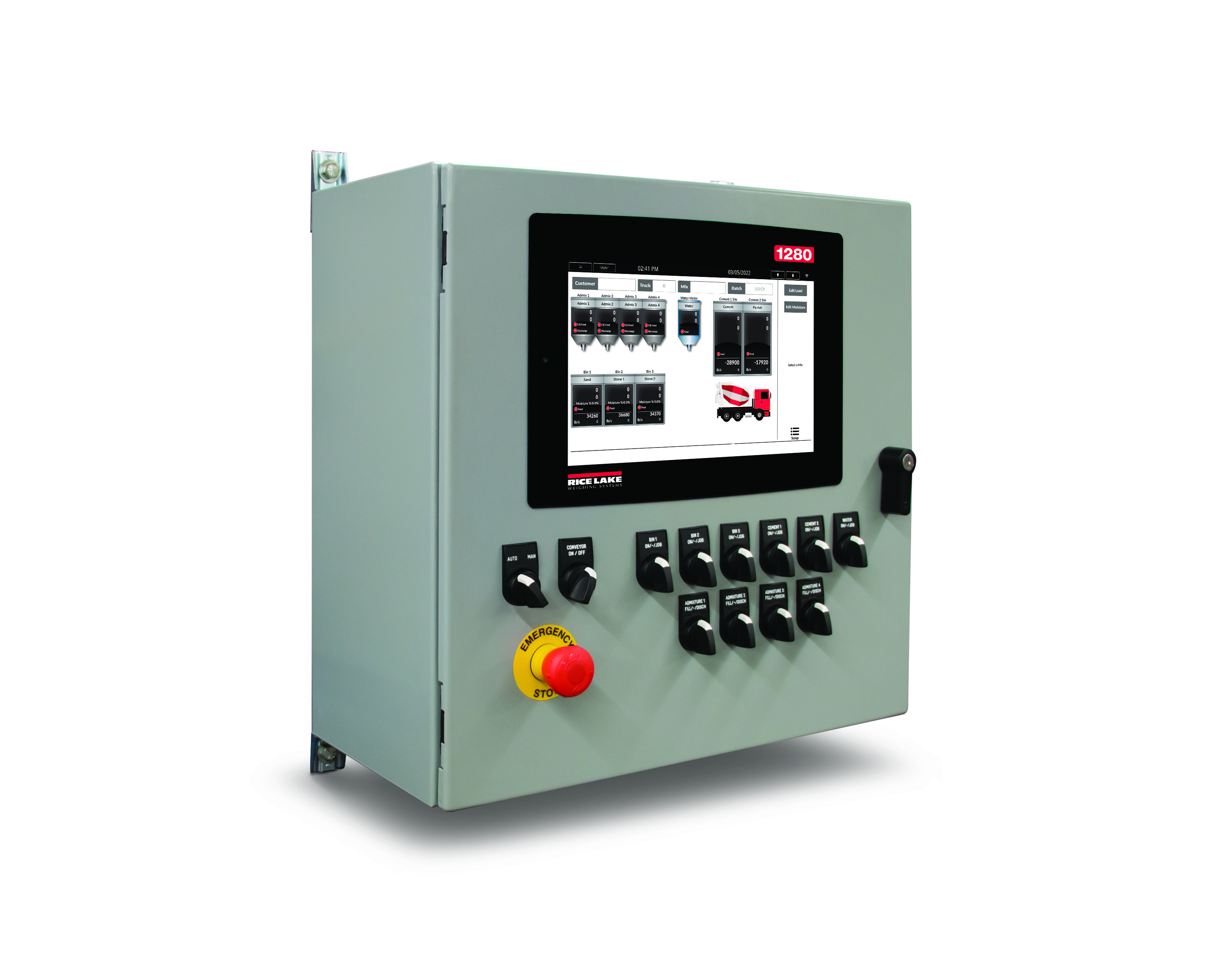

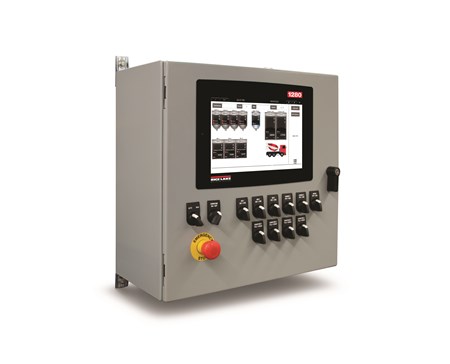

Powered by 1280 Enterprise™ Series indicator Large color touchscreen display Remote batching through web server integration Front panel control switches and emergency stop Automatic or manual batching modes Configurable from two to five scales (one to two cement scales, and one to three material bins) Up to four admixes (bottled or direct) Manual entry of moisture compensation percentage Metered water controlled by onboard DIO Import/export databases via USB, Revolution® or Interchange software Configurable batch transaction ticket Storage for 1,000 transactions, 1,000 mix designs and 500 customers Available with English or Spanish operation and in imperial or metric measurements Options Desktop stand Sun visor

Wall mount stainless steel enclosure Front panel switches E-Stop, Reset/Resume, Start Softkeys for presets, CN#, ID#, formula#, totals Accumulating subtotal and total registers Transmitted audit trail Digital I/O board Relay rack and SSR relay outputs

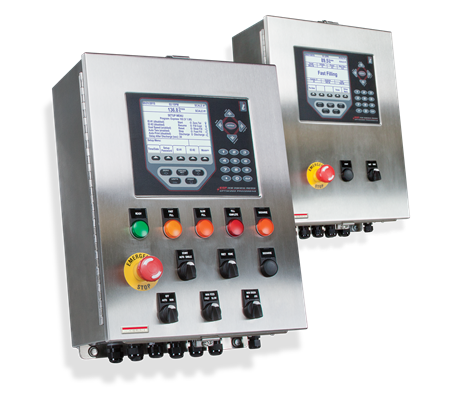

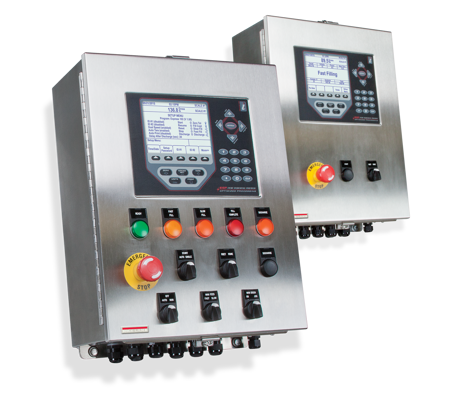

Wall mount stainless steel enclosure Application program 107, 108, 109 Front panel switches E-Stop, Start/Resume, End Cycle, Ship/Recv (only 109) Softkeys for presets, ID1 and ID2 Accumulating weight streaming Fill and discharge sequence controls Fill and discharge gate monitoring Printer online checking Weigh and surge hopper overfill monitoring Transmitted audit trail Digital I/O board Relay rack and SSR relay outputs Options Pilot lights for error indication Manual override switches

Wall mount stainless steel enclosure Application program 105, 106 Front panel switches E-Stop, Reset/Resume, Start Softkeys for presets, CN#, ID#, formula#, totals Accumulating subtotal and total registers Transmitted audit trail Digital I/O board Relay rack and SSR relay outputs

Stainless deep universal mount enclosure Softkeys for presets ID#; formulas; accumulating, subtotal and total registers Switch for manual confirmation 20 ingredient database 100 formula database Audit trail data output Ingredient usage totals

12 in 1280 color touchscreenStainless steel or mild steel enclosure1,500 NIT displayTwo serial ports RS-232 or RS-485/422Operator promptingFormattable ticketsTransmits weight to remote display120 or 220 VAC460 MB onboard databaseEthernet TCP/IP (wired and Wi-Fi)Web serverDirect thermal printerInternal heaterSlide door access to ticketWorks with standard 1280 programs, customization availableOne-year warrantyOptional FeaturesA/D cardsRFID readerBarrier gate controlLoop detector/photo-eyeQWERTY keyboard12-key keypadsCredit card reader (US and Canadian currency)Stop/Go remote display traffic light control

Weigh Out/Printer Kiosk 920i® HMI with sun shield Six serial ports 1 MB database memory Two option slots Slide door access to ticket 8-in paper roll Operator prompting Formattable tickets  Transmits weight to remote display Stop/Go remote display traffic light control Direct thermal kiosk printer One-year warranty Weigh/Check-in Kiosk 920i® HMI with sun shield Four serial ports 120 VAC Two option slots for 920i option cards One-year warranty Weigh Out/Printer Kiosk Options Ethernet TCP/IP (wired and Wi-Fi options available) Single or dual channel A/D cards RFID reader Currency accepter (US currency only) Internal heater Gate control Loop detector output Automated traffic light control Credit card reader (US and Canadian currency) Consult for the following options Stainless steel enclosure 230 VAC

Direct Thermal Printer KioskCustom America VKP80II receipt printerSlide door access to ticket8 in paper rollPrinter KioskPainted mild steel enclosureSlide door access to ticketZinc-plated 3/4 in NPT conduit hubsCustom America VKP80III direct thermal printerThermal-transfer Printer KioskPainted mild steel enclosureSlide door access to ticketZinc-plated 3/4 in NPT conduit hubsAdditional options available upon requestNote: Printer, thermal transfer ribbon and card stock sold separately

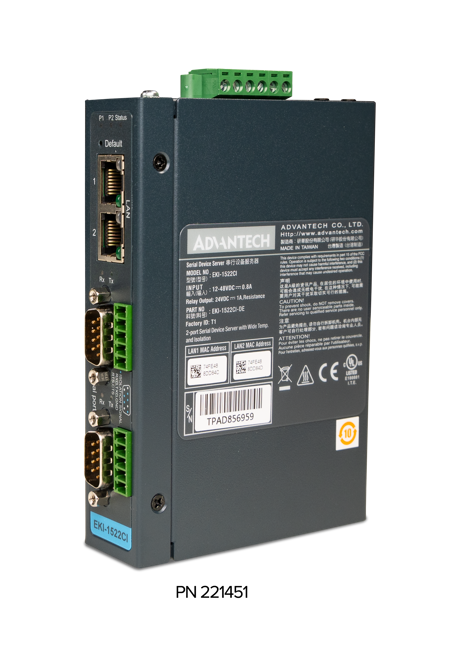

Ethernet Serial Server with DIN rail mounting and software selectable serial interface. Ethernet unmanaged switch network component with five RJ45 serial connectors. Ethernet thin server UDS (desktop or panel use) single or dual serial port.
