Load Cell Cable

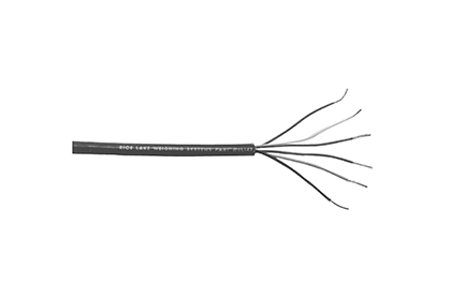

EL147 Standard Cable20 AWG tinned copper wire stranded for flexibilityBraided shielding is encased in red PVCAll conductors are industry-standard color-codedDiameter: 0.29 inBest suited for longer runs where remote sense lines can be usedTemperature rating: -22 to 126 °F (-30 to 80 °C)EL147RP Rodent Protection CableTinned copper overbraid provides a superior rodent and abrasion deterrentEnhanced EMI/RFI protectionSix-conductor industry-standard color-codedIdeal for truck and railroad scalesDiameter: 0.33 inJacket coating enhanced with a chemical coating “NAW” that is distasteful to rodentsTemperature rating: -22 to 176 °F (-30 to 80 °C) EL147HE Hostile Environment Cable (Not UL Approved)Designed for use in hostile environmentsPolyurethane jacketing provides superior chemical and abrasion resistanceRFI and EMI protected with foil overbraid shieldUnmatched durability, yet extremely flexibleAll conductors are industry-standard color-codedDiameter: 0.32 inTemperature rating: -22 to 176 °F (-30 to 80 °C)EL147IS Hazardous Environment Blue Jacket CableDesigned for intrinsically safe applications (must be wired according to Factory Mutual System-approved diagram)Polyurethane over PVC double jacketing provides superior chemical and abrasion resistanceIncludes foil and braided wire shields for added RFI and EMI protectionSix-conductor is industry-standard color-coded (Also available three-conductor)Suited for longer runs where remote sense lines can be usedDiameter: 0.32 inTemperature rating: -22 to 176 °F (-30 to 80 °C)

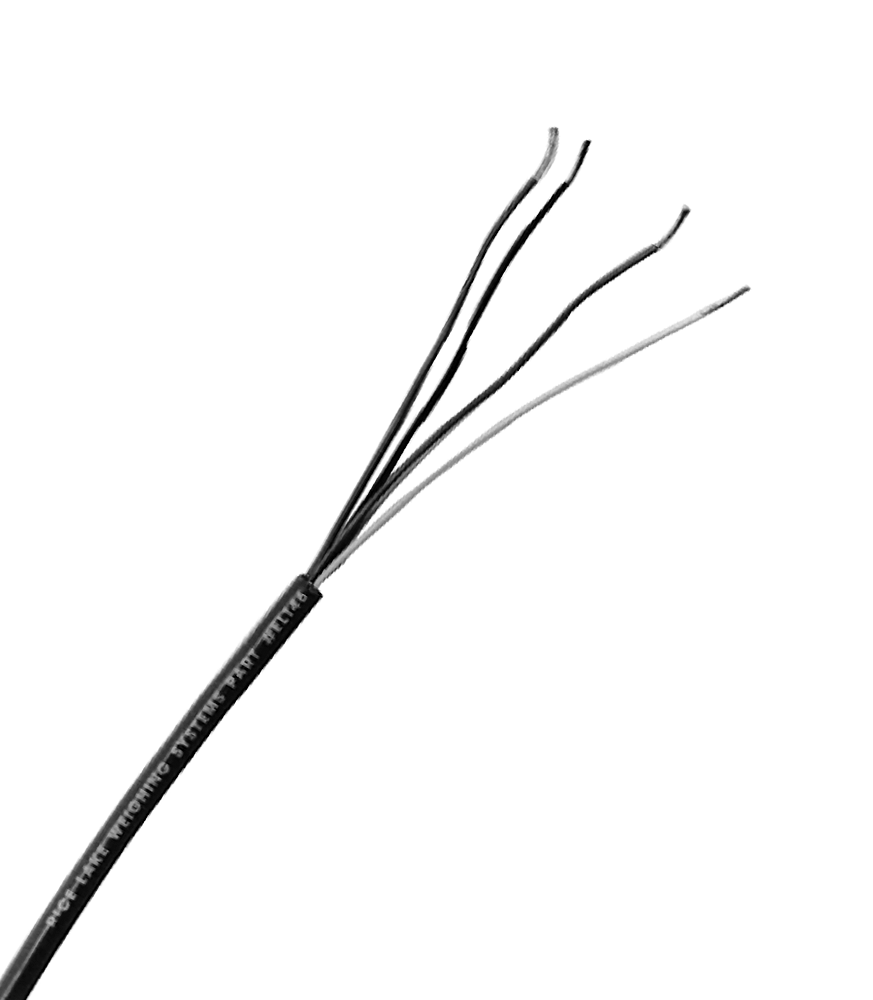

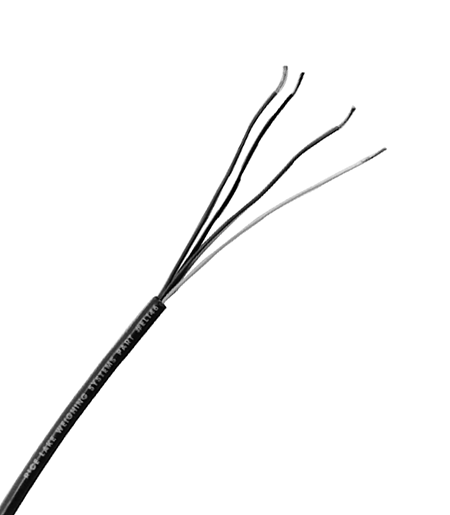

EL146 Standard Cable4-wire load cell cable20 AWG tinned copper wire stranded for flexibilityBraided shielding is encased in red PVCAll conductors are industry-standard color-codedDiameter: 0.25 inUse the four-wire cable for repairing or extending existing cableTemperature rating: -22 to 126 °F (-30 to 80 °C)EL146HE Hostile Environment CableDesigned for use in hostile environmentsPolyurethane jacketing provides superior chemical and abrasion resistanceRFI and EMI protected with foil overbraid shieldUnmatched durability, yet extremely flexibleAll conductors are industry-standard color-codedDiameter: 0.32 inTemperature rating: -22 to 176 °F (-30 to 80 °C)

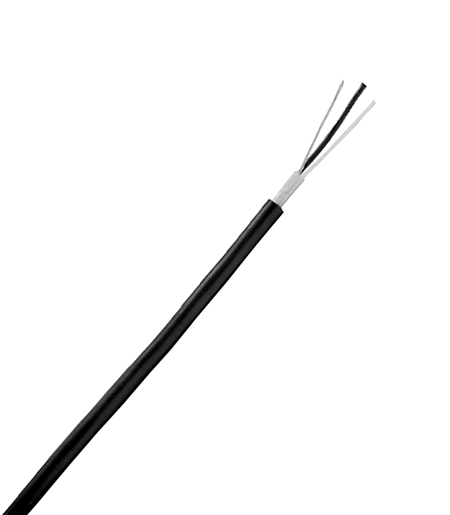

Two-conductor with bare ground RFI/EMI protected with foil shield 20 gauge conductors Perfect for RS-232, two-wire RS-485 and 20 mA current loop communications Diameter: 0.19 in Conductor colors are black and white

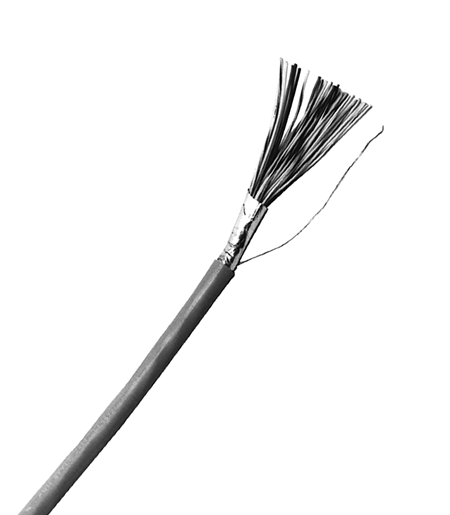

Sheathed in gray PVC Mylar aluminum foil shield with stranded tinned copper drain wire Diameter: 0.375 in

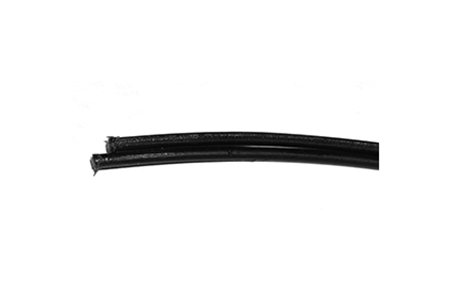

Duplex cable polyethylene black jacket material Plastic fiber core 4.4 + 0.10 mm outer diameter of duplex cable 2.2 + 0.007 mm single cable outer diameter Operating temperature: 32 °F to 158 °F (0 °C to 70 °C)

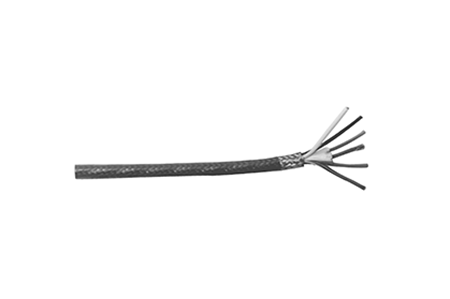

Multi-conductor overall foil and braid shieldSuitable for temperatures from -40 to 392 °F (-40 to 200 °C)Insulation thickness: 0.010 inJacket thickness: 0.017 in18-gauge, tinned copper conductorsSix-conductorFEP jacket, resistant to chemical corrosion and high temperatureAluminum-polyester shield with 85% tinned copper braid shield150 V NEC 725 Class 2 classified for use in an air plenum non-conduit0.24 in diameter cable

Flexible all-metal protective armor Ideal for protecting load cell cable from mechanical abrasion or rodents Available in stainless steel and galvanized steel 0.5 in internal diameter, 2.0 in minimum bend radius Optional end fitting with 1/2 in male pipe thread

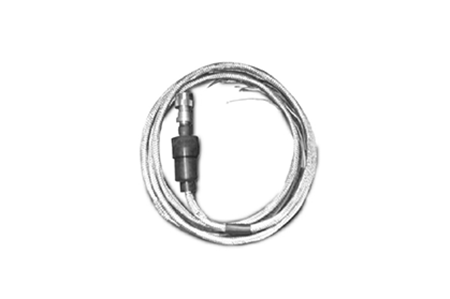

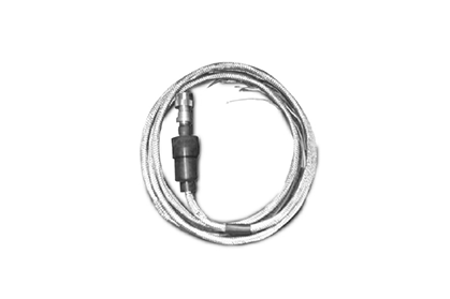

100% stainless steel military connector-electro deposited nickel plating with stainless banding and epoxy heat-shrink strain relief Stainless steel arctic ring precision cut for improved connection Textured rubber boot for additional grip Standard Mettler Toledo color code Compatible with  Mettler Toledo Powercell CMOS/NMOS and MTX load cells. NOT compatible with Mettler Toledo PDX load cells. Custom lengths available

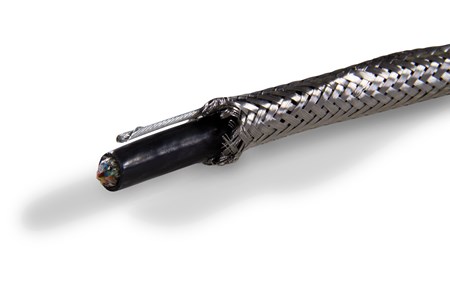

20-gauge, 8-conductor cableGalvanized steel drain wireStainless steel braid shield

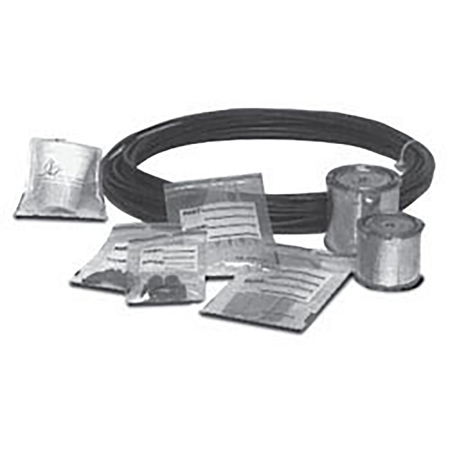

Each kit includes cable for four Flintec SB4 load cells as listed
