Monolithic weighing system Resolution up to 620,000 d Stainless steel weighing pan Requires YPS02-XUR (RL# 46518), US hazardous area or YPS02-ZKR (RL# 46517) safe area connection

Standard Features Amber backlit LCD dot matrix display Three-way unit toggle; 10x higher resolution toggle Two header line storage Battery charge status display (with connection of battery pack) Numeric keypad with two IDs for entering identifier codes and preset tare Date/time fully integrated GMP printable record Three built-in LED checkweighing lights Bar graph weighing range indicator Application data and totalization memory stored in battery-backed RAM Requires power supply Power supply can be provided by 110 to 220 VAC connections, 24 VDC industrial power module (each suitable for hazardous and safe areas) and a rechargeable battery pack in stainless steel casing Applications Pre-installed software for counting, checkweighing, differential weighing, percentage weighing, gross-net-tare, sorting, net-total, animal weighing Weighbridge connectivity: maximum two precision weighing platforms or load cells, and one precision platform or 1 Combics Ex and one precision platform

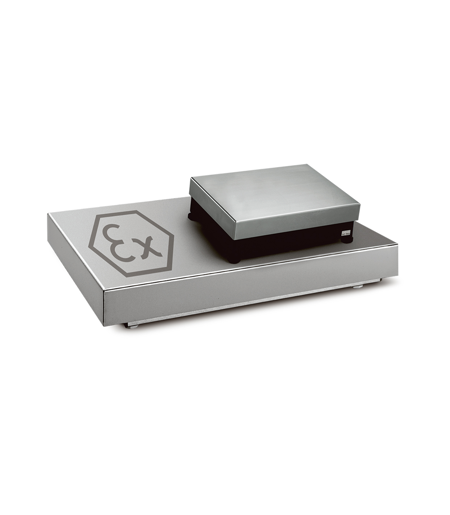

Standard Features Can be used in areas where explosive gas and dust mixtures occur Documentation to verify intrinsic safety available upon request Built for easy cleaning and disinfection Meets HACCP and FDA requirements for the food industry Pit frames for flush mounting available High resolution of 30,000 d Applications Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing Regulatory Compliance: NEMA, HACCP, FDA, GLP/GMP*, FM *GLP/GMP requires use of Combics 1 Plus or higher digital weight indicator

Capacities from 150 to 3,000 kg (330 to 6,613 lb) with resolutions up to 30,000 d Drive-on ramp included with every platform No pit required Convenient for application-oriented weighing systems from processing to the chemical industry Optional Configurations Electro-polished finish AISI 304 electro-polished stainless steel platform AISI 316Ti electro-polished stainless steel platform Ingenious manually-operated lifting mechanism option (patented system) for effortless raising of the platform to facilitate cleaning underneath. R2: Cold rolled AISI 316Ti stainless steel, electro-polished R6: AISI 304 2b stainless steel, electro-polished T4: Stop bar T5: Tow bar and stop bar T6: Two handles and two rollers T7: Retractable wheels (reduces effective resolution to 15,000 dd) T9: Additional bottom plate T15: Second ramp T14: Integrated column T13: Four handles Applications Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing

Network-capable: RS-485 interface is X-bus compatible Built-in internal calibration function: at the touch of the unique ISO TEST Key, the IS platform calibrates and adjusts itself automatically using a built-in calibration weight High resolution: guarantees reliable weight readouts Fast weighing results: up to 50 times/second Stainless steel load plate

Fast and easy installation Mounting kit with dummy function included Designed to withstand high lateral forces Maintenance-free constrainer and module construction Patent pending DE 101 38 435A1 Approval Certificate “Germanischer Lloyd” No. 47-458-03HH Load cell output 1 mV/V 15-year load cell warranty 10,000 division load cell 45 kN zinc-plated mount destructive lateral force; 20 kN permissible lift-off protection Foot 20 kN lateral force and lift-off protection

Fast and easy installation Mounting kit with dummy function included Inteco load cell for capacities ranging from 500 kg to 300 t Designed to withstand high lateral forces Maintenance-free constrainer and module construction Patent pending DE 101 38 435A1 Approval Certificate “Germanischer Lloyd” No. 47-458-03HH Load cell output 1 mV/V 15-year load cell warranty 10,000 division load cell 39 kN stainless steel mount destructive lateral force; 20 kN permissible lift-off protection Foot 20 kN lateral force and lift-off protection

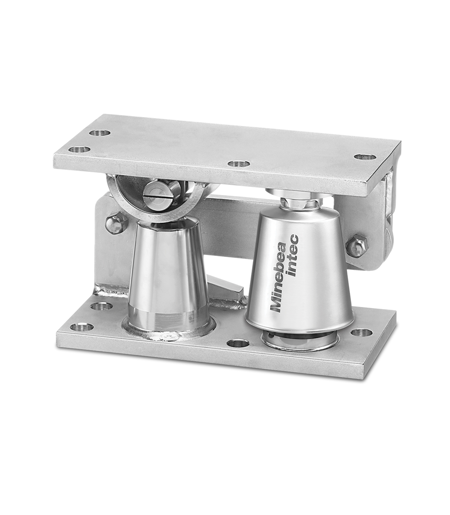

Proven rocker pin principle for accurate repeatability Easy corner adjustment by matched load cell output All stainless steel construction (316 stainless steel load cells) Wide operating temperature range High overload capacity Resists vibration for consistent high accuracy Hermetically sealed, IP68/69K (depth of 1.5 m for 10,000 hours) EX-version available (PR 6202/..E) 10,000 division load cell, 2 mV/V 15-year warranty 50 kN destructive lateral force, and 25 kN permissible lift-off protection Foot 35 kN lateral force and lift-off protection

Compact and absolute hygienic weighing solution for a load range up to 2 t Quick and seamless installation Easy cleaning without residue High chemical resistance Protective cover made of FDA-compliant silicone Integrated S-like lift-off protector and jack-up function with constrainer for horizontal forces Proven rocker pin principle for accurate repeatability 10,000 divisions Load cell, 2 mV/V 15-year load cell warranty 30 kN destructive lateral force and 8 kN permissible lift-off protection

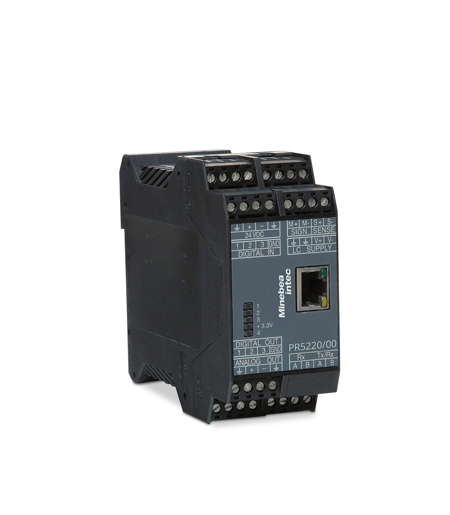

Configuring via VNC OPC server Full digital signal processing with up to 4.8 Mio divisions internal resolution SmartCalibration feature for fast calibration even without weights Requires supply voltage of 24 VDC IP20 housing, DIN rail mount Verifiable with remote display up to 10,000 e, CL III (EN 45501, OIML R76) Precision analog output Serial RS-485/422 interface CD supplied with software suite 10,000 divisions at six samples per second

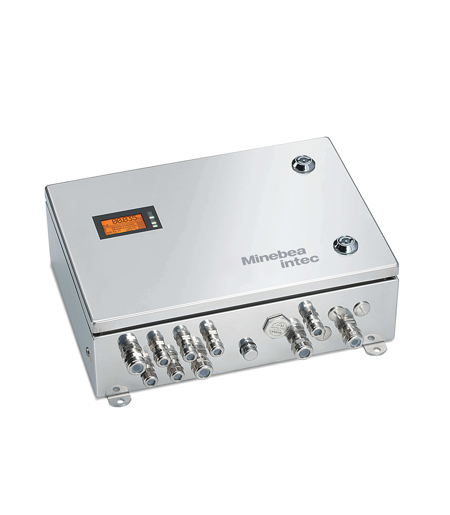

Display for weight and status information OIML approval for 10,000e, and an internal resolution of 4 and 8 Mio. counts SmartCalibration feature for fast calibration even without weights Serial Interface RS-485/422 and RS-232 Option cards: Analog output 0 to 10 or 4 to 20 mA, DeviceNet® and EtherNet/IP™ Load cell connection board for up to four load cells

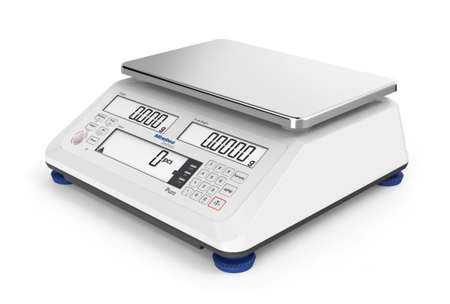

Three large front displays Traffic light function Battery powered Easy charging via USB-C Built-in second ADC
