1280 Enterprise Series Programmable Weight Indicator and Controller

1280 Upgrade Process v 2.00.00

  • Customizable color touchscreen with graphical user interface
  • User-defined softkeys, icons and graphics
  • Tactile keypad for scale operations, numeric entry and navigation
  • On-screen keyboard available during entry mode (or external keyboard)
  • Built-in web server for remote access, systems integration and data monitoring
  • Multi-language operation and text entry
  • Supports eight scales within five different kinds:
    • Analog load cell, multi-range/interval weighing
    • Total scale summing
    • Serial input scales
    • iQUBE² scales
    • Program scales
  • Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
  • iRite™ Programming Software
    • Five built-in applications: Truck In/Out, Recipe Storage, Filling/Dosing, Counting, Checkweighing
    • Customizable user programs with event-based functions
    • 150 built-in functions for common processes & data tables
    • Customize and transfer data via email, FTP server and networked printers
    • Display data with line charts or bar graphs
  • Dual-port assignments for weight tickets, credit cards, smart pass, HID readers, etc.
  • iRite reporting or iQUBE2 alerts
  • Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
  • Alibi memory captures serial port transmissions
  • Four configurable data-stream formats for PC, printers and remote displays
  • 100 setpoints, 18 configurable setpoint types
  • Eight digital I/O for control and pulse count
  • Three different enclosure types: universal with tilt stand, panel mount and wall mount

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL List Recog LOGO EU Certified NAWI MID OIML Logo ULCUS LOGO Measurementcanada Approved BW LOGO NOM CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Power:
AC voltages: 100-240 VAC; 50-60 Hz
DC voltages: 11-30 VDC
Consumption: 60W

Excitation Voltage:
10 ± 0.5 VDC
16 x 350Ω or 32 x 700Ω load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz–120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000
Display: 1,000,000

System Linearity
± 0.01% full scale

Digital I/O:
Eight I/O channels on CPU board
Optional 24-channel I/O expansion boards

Communication Ports:
Port 1 & 2: Full duplex RS-232 with CTS/RTS,
RS-422/485
Baud Rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
USB Host: (2) Type A Connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHz

Onboard:
Selectable filters: Three stage, Adaptive or Damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card (sold separately)

Display:
Seven-inch, 800 x 480 pixel, 500 or 1,000 NIT
Twelve-inch, 1280 x 800 pixel, 1,500 NIT

Keys/Buttons:
22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer

Temperature Range:
Certified: 14° F to 104° F (-10° C to 40˚ C)
Operating: -4° F to 131° F (-20° C to 55˚ C)

Weight:

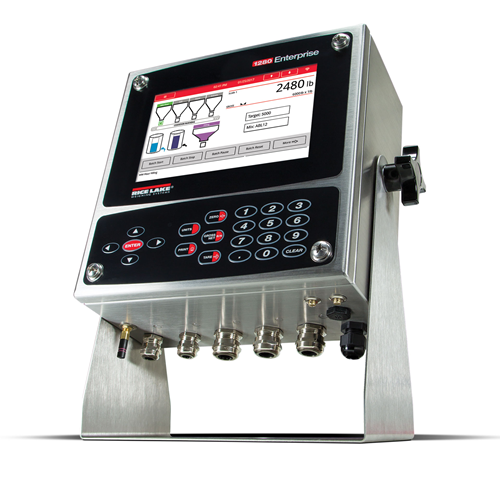

Universal enclosure: 11 lb (4.9 kg)

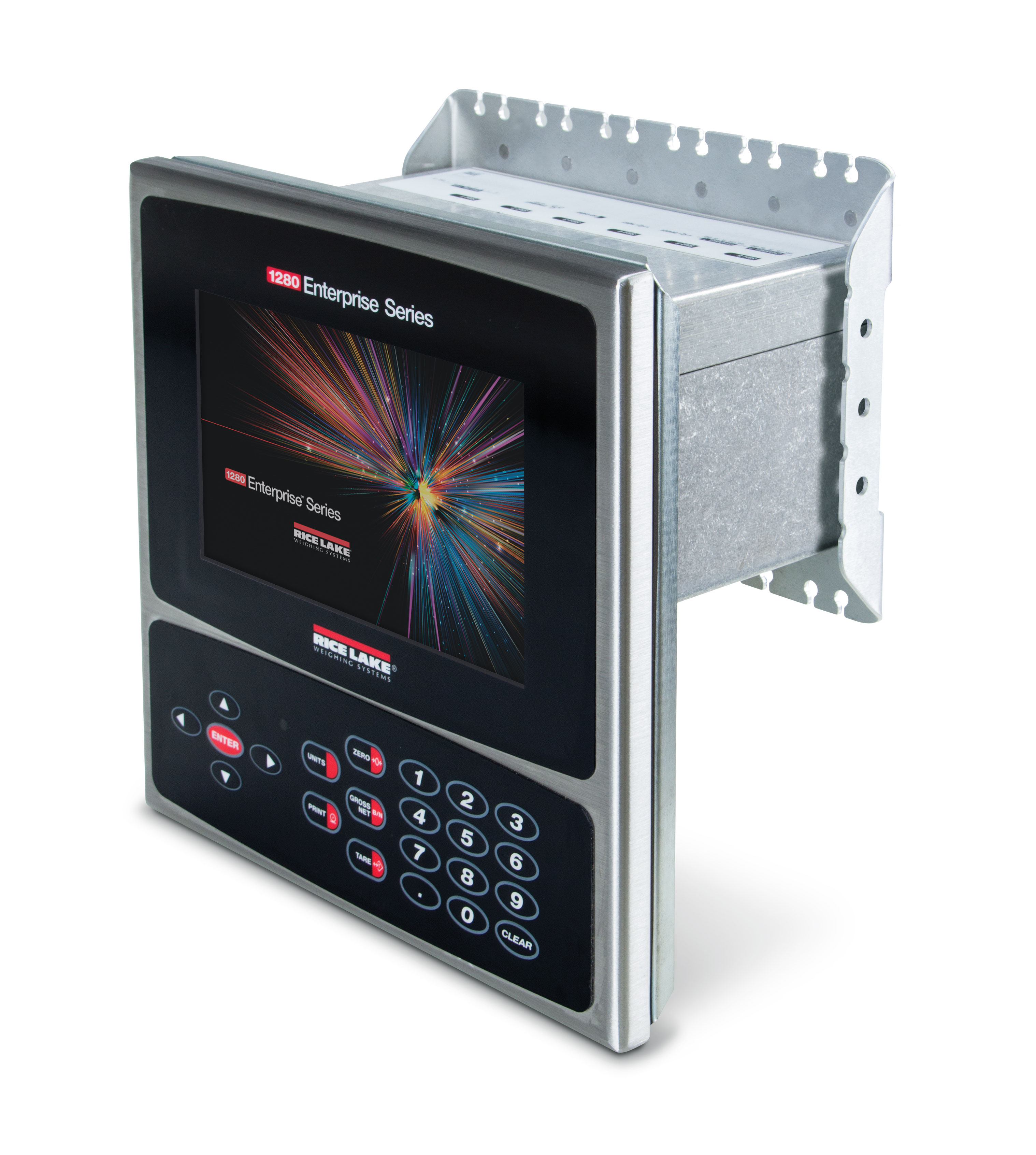

Panel mount enclosure: 8 lb (3.6 kg)

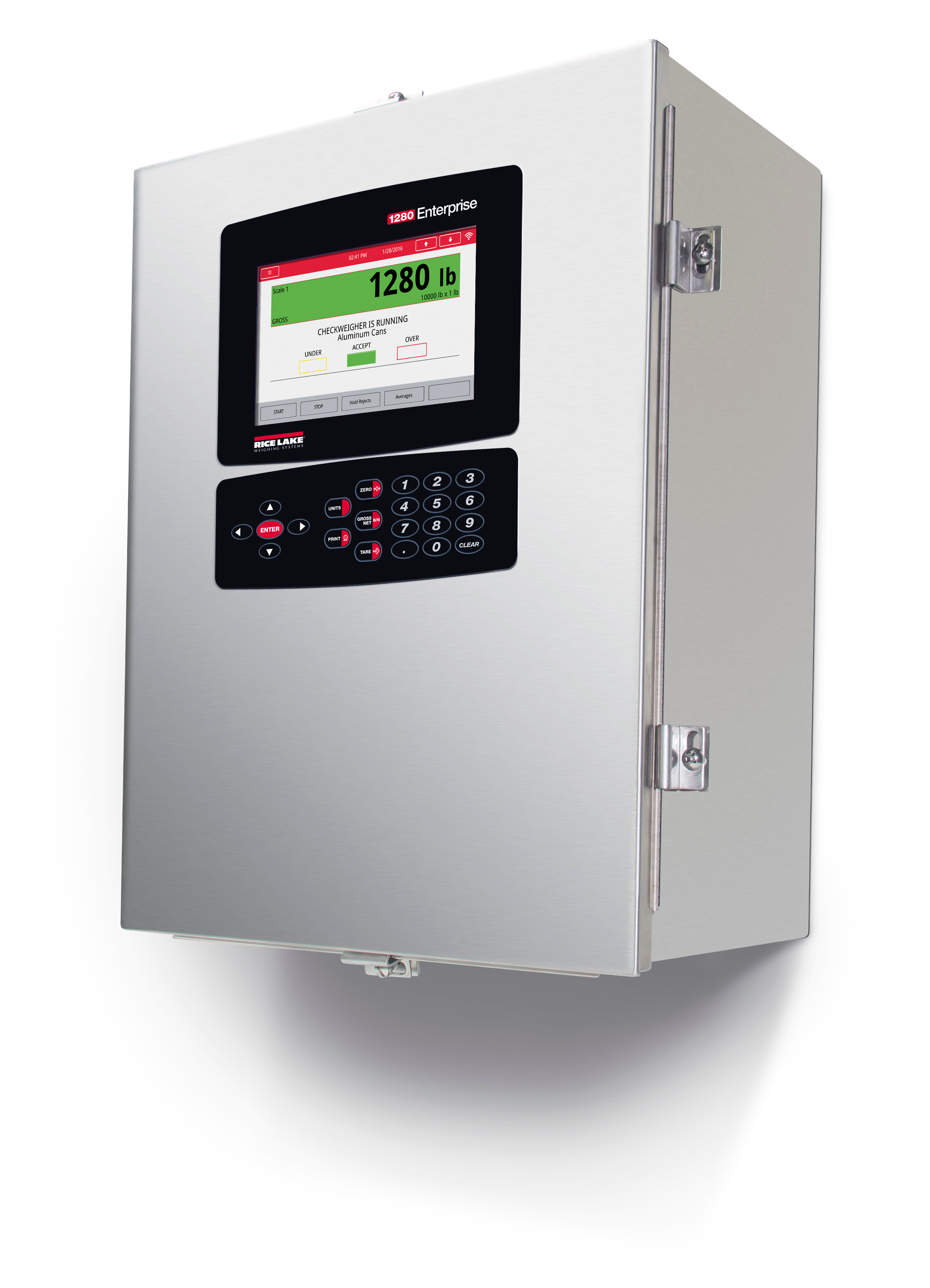

Wall mount enclosure: 23 lb (10.4 kg)
Panel mount 7 in touch-only: 7 lb (3.1 kg)
Panel mount 12 in touch-only: 10 lb (4.5 kg)

Rating/Material:
Stainless steel 304 enclosure
Universal: IP69K
Wall mount: IP66
Panel mount: IP69K, NEMA Type 4X and 12

Warranty:
Two-year limited warranty

EMC Immunity:
EN 50082 Part 2 IEC
EN 61000-4-2, 3, 4, 5, 6, 8, 11

Approvals:
NTEP CC 15-001/Class III/IIIL 10,000d
Measurement Canada AM-5980C,
Class III/III HD 10,000d
OIML R76/2006-NL1-16.04
Class III/IIII 10,000d
EU Test Certificate TC8596
UL/cUL Listed (universal, wall mount)
UL/cUL Recognized (panel mount)
CE Marked

Universal (1280-2) Dimensions
A 10.86 in (276 mm) D 4.97 in (126 mm) G 5.25 in (133 mm)
B 9.00 in (229 mm) E 9.00 in (229 mm)
C 9.24 in (235 mm) F 12.50 in (318 mm)





Wall Mount (1280-3) Dimensions
A 14.92 in (379 mm) D 18.84 in (479 mm) G 8.08 in (205 mm)
B 11.00 in (279 mm) E 19.64 in (499 mm)
C 18.22 in (463 mm) F 14.20 in (361 mm)

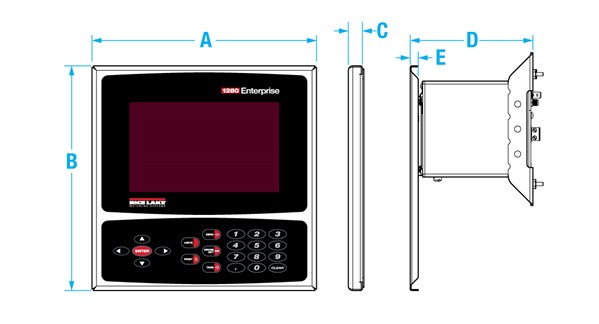

Panel Mount (1280-4) Dimensions
A 9.00 in (229 mm) D 5.34 in (136 mm)
B 9.00 in (229 mm) E 0.32 in (8 mm)
C 0.58 in (15 mm)

7-inch Touch-only (1280-5) Dimensions 12-inch Touch-only (1280-6) Dimensions
A 9.00 in (229 mm) A 14.00 in (356 mm)
B 6.22 in (158 mm) B 10.00 in (254 mm)
C 0.58 in (15 mm) C 0.58 in (15 mm)
D 5.34 in (136 mm) D 5.34 in (136 mm)
E 0.32 in (8 mm) E 0.32 in (8 mm)





8-Channel Dimensions
A 4.27 in (108 mm) B 3.5 in (89 mm) C 3.22 in (82 mm)

16-Channel Dimensions
A 4.27 in (108 mm) B 5.50 in (140 mm) C 3.22 in (82 mm)

24-Channel Dimensions
A 4.27 in (108 mm) B 7.50 in (191 mm) C 3.22 in (82 mm)

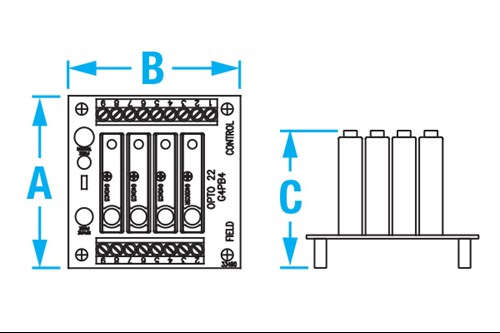

4-Channel Dimensions
A 3.25 in (83 mm) B 3.25 in (83 mm) C 2.32 in (59 mm)

4-Channel (Non-UL) Dimensions
A 1.20 in (30 mm) B 6.11 in (155 mm) C 2.32 in (59 mm)

16-Channel Dimensions
A 3.25 in (83 mm) B 10.0 in (254 mm) C 2.32 in (59 mm)

24-Channel Dimensions
A 7.50 in (83 mm) B 6.25 in (83 mm) C 2.32 in (59 mm)
