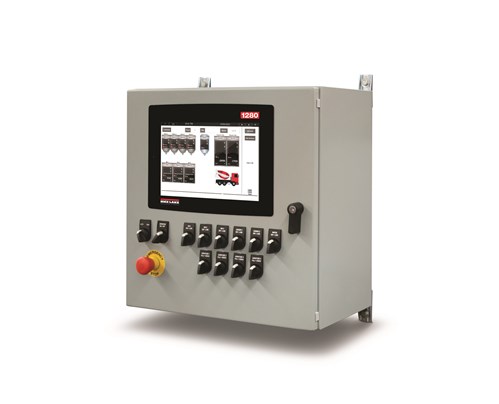

1280 FlexWeigh Systems Concrete Batcher

  • Powered by 1280 Enterprise Series indicator
  • Large 12-in color touchscreen display
  • Remote batching through web server integration
  • Front panel control switches and emergency stop
  • Automatic or manual batching modes
  • Decumulative plant setup
  • Configurable from two to five scales (one to two cement scales, and one to three material bins)
  • Up to four admixes (bottled or direct)
  • Manual entry of moisture compensation percentage
  • Metered water controlled by onboard DIO
  • Import/export databases via USB, Revolution® or Interchange software
  • Configurable batch transaction ticket
  • Storage for 1,000 transactions, 1,000 mix designs, 500 customers
  • Available with English or Spanish operation and in imperial or metric measurements

Options

  • Desktop stand
  • Sun visor



Powered by the 1280 Enterprise™ Series Weight Indicator

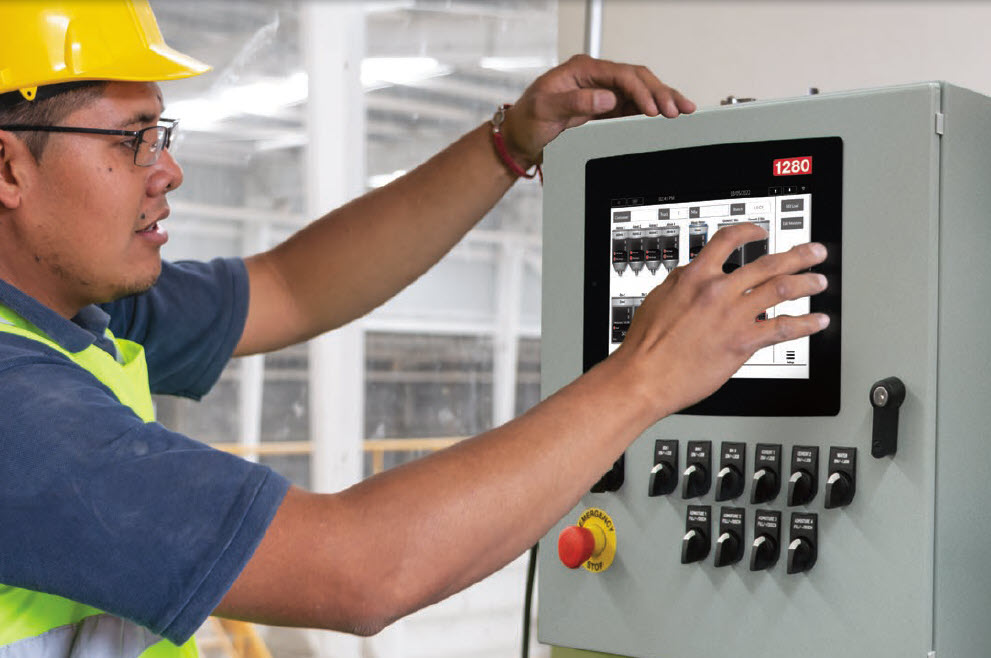

The power of the 1280 Enterprise Series indicator provides an easy-to-configure concrete batching system for small or portable concrete plants. The large color touchscreen makes it easy for operators to monitor material levels and access records for hundreds of mixes, customers, and tickets.

The 1280 Enterprise concrete batching system adds efficiency to concrete mixing processes. Operators can view material levels from two or five scales, and manually edit material amounts and moisture compensation percentages for complete batching control

Power:
100 to 240 VAC; 50/60 Hz

Excitation Voltage:
10 ± 0.5 VDC
16 x 350 ohm or 32 x 700 ohm load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5  to 120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
± 0.01% full scale

Communication Ports:
Port 1 & 2: Full duplex RS-232 with CTS/RTS, RS-422/485
Baud Rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
USB Host: (2) Type A Connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHz

On board:
Selectable filters: Three stage, adaptive or damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card



Display:
Twelve-inch, 1280 × 800 pixel,
1,500 NIT

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 131 °F (-20 °C to 55 °C)

Rating/Material:
Painted mild steel enclosure
NEMA Type 12; NEMA Type 4; IP66

Dimensions:
20 × 20 × 8 in

Warranty:
Two-year limited

EMC Immunity:
EN 50082 Part 2 IEC
EN 61000-4-2, 3, 4, 5, 6, 8, 11

Front Panel Switches
Auto/Manual
E-Stop
Conveyor Start/Run*
Bin 1*
Bin 2*
Bin 3*
Cement 1*
Cement 2*
Water*
Admix 1*
Admix 2*
Admix 3*
Admix 4*

*Available in Manual Mode

Inputs
Admixture 1 Bottle Empty
Admixture 1 Pulse
Admixture 2 Bottle Empty
Admixture 2 Pulse
Admixture 3 Bottle Empty
Admixture 3 Pulse
Admixture 4 Bottle Empty
Admixture 4 Pulse
Manual Mode
Air Pressure OK
E-Stop
Water Meter Pulse
Conveyor Running



Outputs
Conveyor Start/Run
Alarm/Horn
Bin 3 Vibrator
Bin 3 Feed
Admixture 1 Fill/Feed
Admixture 1 Discharge
Admixture 2 Fill/Feed
Admixture 2 Discharge
Admixture 3 Fill/Feed
Admixture 3 Discharge
Admixture 4 Fill/Feed
Admixture 4 Discharge
Bin 1 Feed
Bin 2 Feed
Cement 1 Feed
Cement 2 Feed
Water Feed
Bin 1 Vibrator
Bin 2 Vibrator
Cement 1 Air
Cement 2 Air
Dust Collector 1
Dust Collector 2



Resources / Downloads

Title Download Email
1280 FlexWeigh Systems Concrete Batcher Catalog Page Download Email

Title Version Revision Download Email Category Archived
1280 FlexWeigh Systems Concrete Batcher Operation Manual A Download Email Automated Systems|Concrete Batch Controllers No

Title Collateral Wizard Request Download Email Category
1280 FlexWeigh Systems Concrete Batcher Download Email

Parts

Part # Description List Price Cart
208907 1280 Concrete Batcher FlexWeigh system for decumulative plant. 20"x20"x10" painted mild steel enclosure. Includes relays and software.

List Price: $14,500.00

212392 Sun Visor Optional Sun Visor for 1280 Concrete Batcher enclosure

List Price: $425.00

212234 STAND KIOSK STANDS FOR A 20X20 ENCLOSURE. 1280 CONCRETE BATCHER.

List Price: $150.00
