150-10-5 Digital Physician Scale Eye-Level

  • Large push-button LCD display
  • Antimicrobial keypad
  • Large, stable scale base
  • Integrated height rod
  • Non-slip rubber mat, removable for cleaning
  • Rubber wheels for easy transport
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EMR capable

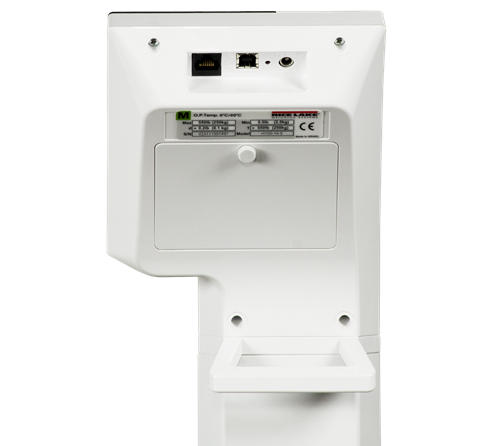

  • Serial and USB data communication ports
  • Bluetooth® BLE 4.0 available, part number selectable
  • Hold function
  • Zero function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

Request Quote
150-10-5 Digital Physician Scale Eye-Level complete

Eye-Level Digital Physician Scale

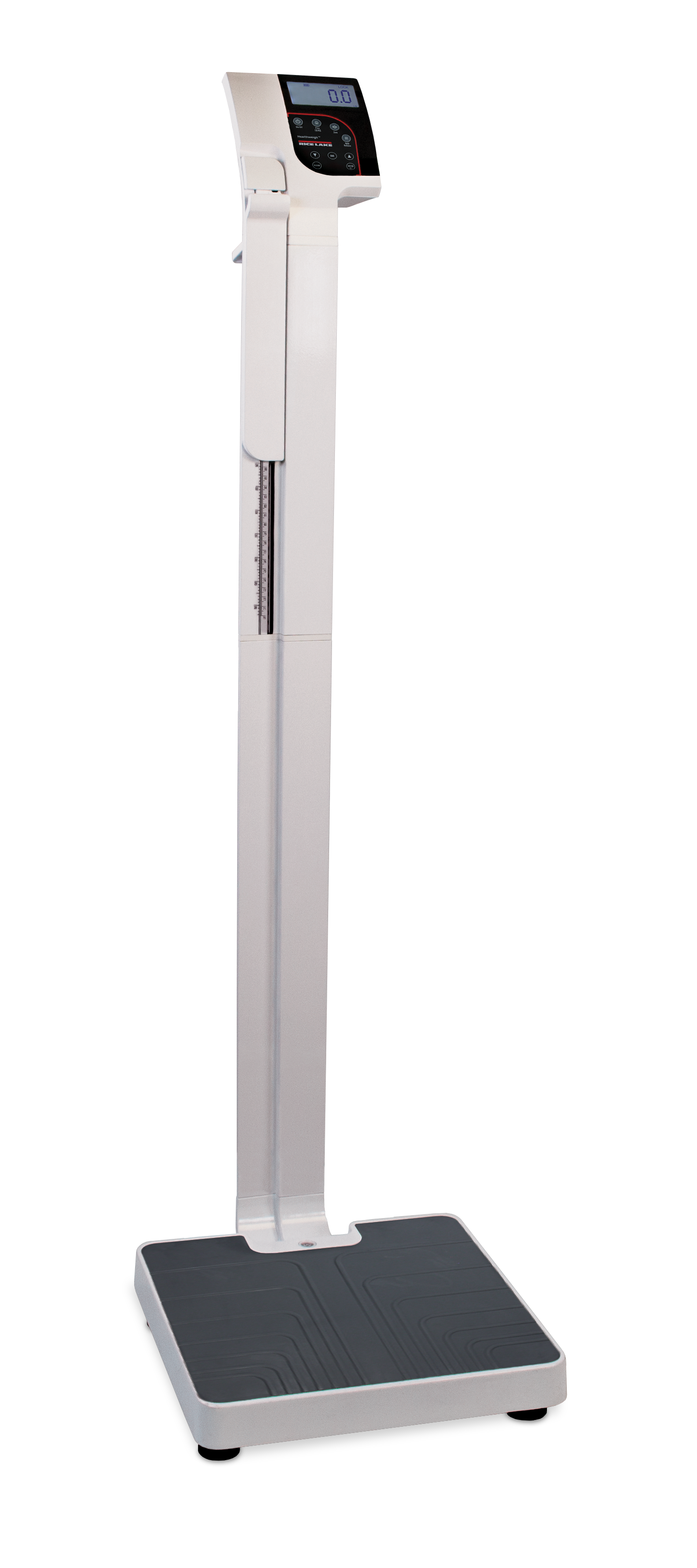

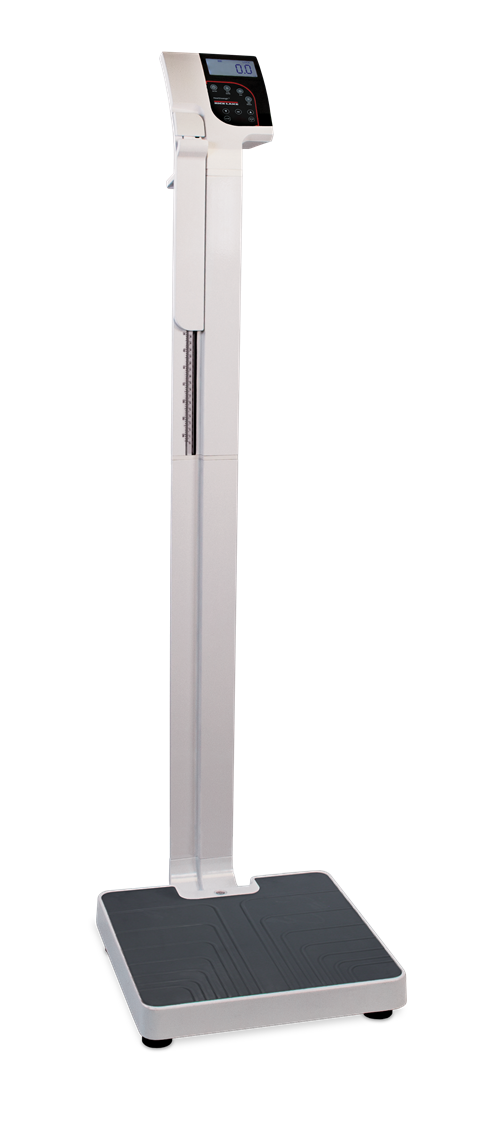

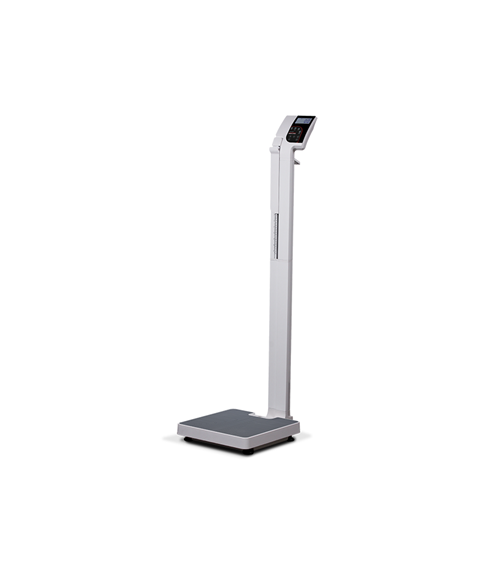

The Rice Lake Healthweigh® 150-10-5 digital physician scale has an eye-level digital display to provide a clear weight reading. With a height bar integrated into the scale column, healthcare professionals can quickly capture both height and weight information. Built-in wheels make the 150-10-5 easy to transport and the choice between using an AC adapter or batteries means this physician scale can be used nearly anywhere in a healthcare facility.

Capacity:
550 × 0.2 lb (250 × 0.1 kg)

Platform Dimensions:
(L × W × H)
14.70 × 14.70 × 3.00 in

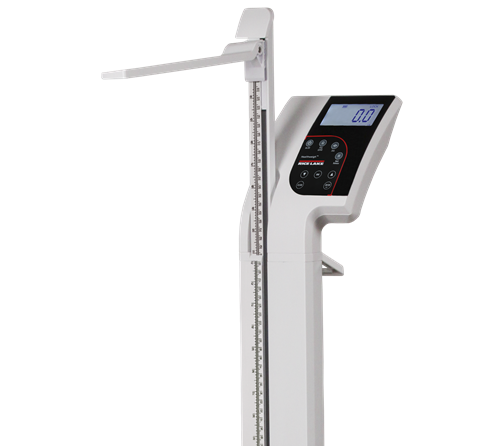

Height Rod:
Measures from 27.50 to 82.00 in
(70 to 208 cm)

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

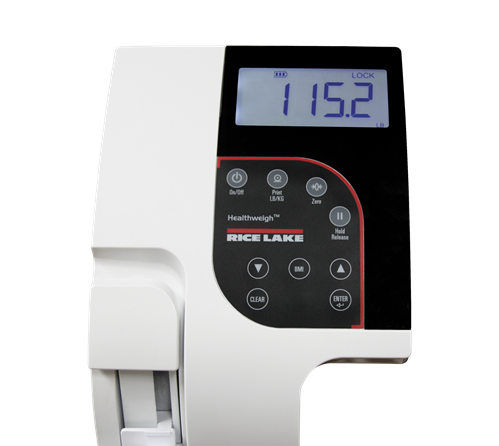

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Temperature:
Operating:
50 °F to 104 °F (10 °C to 40 °C)

Warranty:
Two-year limited



Dimensions Inches Centimeters
A 54.00 137.2
B 22.40 56.9
C 14.70 37.5
D 3.00 7.6





Shipping Weight
Part # Model # L × W × H Package Wgt. Dim Wgt. Shipping Wgt.
119113 150-10-5 30 × 18 × 9 in 26 lb 35 lb 35 lb
194726 150-10-5BLE 30 × 18 × 9 in 26 lb 35 lb 35 lb

Resources/Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles

Title Download Email
150-10-5 Digital Physician Scale Eye-level Catalog Page Download Email

Title Version Revision Download Email Category Archived
150-10-5 Eye Level Digital Physician Scale Operation Manual H Download Email Health Scales No
150-10-5 Eye Level Digital Physician Scale Technical Manual G Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales D Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales Yes
Báscula Médica Digital 150-10-5 Instructivo de Operacion 11525 A Download Email Health Scales No
Báscula Médica Digital 150-10-5 Instrucciones Tecnicas y de Operacion 11525 A Download Email Health Scales No

Title Download Email
150-10-5, 150-10-6 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Digital Physician Scales Request Download Email Health Scales|Physician Scales
Calibrating Patient Weighing Scales Collateral Wizard Request Download Email Health Scales
Medical Product Guide Request Download Email Health Scales

Title View Email Category
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Calibration Weights for Patient Weighing Download Email Health Scales

Title View Download Email Category
Health Scale Product Line Overview View Download Email Health Scales|Wheelchair Scales|Chair Scales|Pediatric Scales|Mechanical Health Scales|Home Health Scales
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Unpacking and Assembling Rice Lake's 150-10-5 Digital Physician Scale View Download Email Health Scales
Proper Patient Weighing for Rice Lake Physician Scales View Download Email Health Scales|Physician Scales
Using the Height Rod on Rice Lake's 150-10-5 Digital Physician Scale View Download Email Health Scales|Physician Scales
ScaleTalk: How to Calibrate a Rice Lake Medical Scale View Download Email Health Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email Indicators / Controllers
Measurement Solutions Throughout a Healthcare Facility View Download Email Health Scales

Title Download Email Category
150-10-5 Digital Physician Scale Warranty Download Email Health Scales

Title Download Email Category
How To Properly Clean Rice Lake Health Scales Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
Prescription Dosing Depends on Weight Download Email Health Scales

Parts

Part # Description List Price Cart/Quote
119113
Scale,Eye Level 150-10-5 550lb(250kg) x 0.2lb(100g) includes 6 AA Alkaline batteries

List Price: $630.00
194726
Scale,Eye Level 150-10-5BLE 550lb(250kg) x 0.2lb(100g) includes 6 Alkaline batteries and Bluetooth BLE 4.0

List Price: $865.00

Options

Part # Description List Price Cart/Quote
115655 Adapter,120-240VAC/9 VDC Power supply with US wall adapter

List Price: $43.00
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $30.00
102508 Power Cord, 220VAC AC, 9VDC 500MA, Healthweigh (includes EU plug), MSDS Required

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
79074 Cable Assy, USB 2.0, Male Type A to Male Type B, Black, 6 Feet

List Price: $35.00
217091 Cable Assy,Communication DB9 Female to RJ45 Female, 4 Conductor 26 AWG, PVC Jacket

List Price: $25.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
