Product PDF

150-10-6 Digital Physician Scale Waist-Level

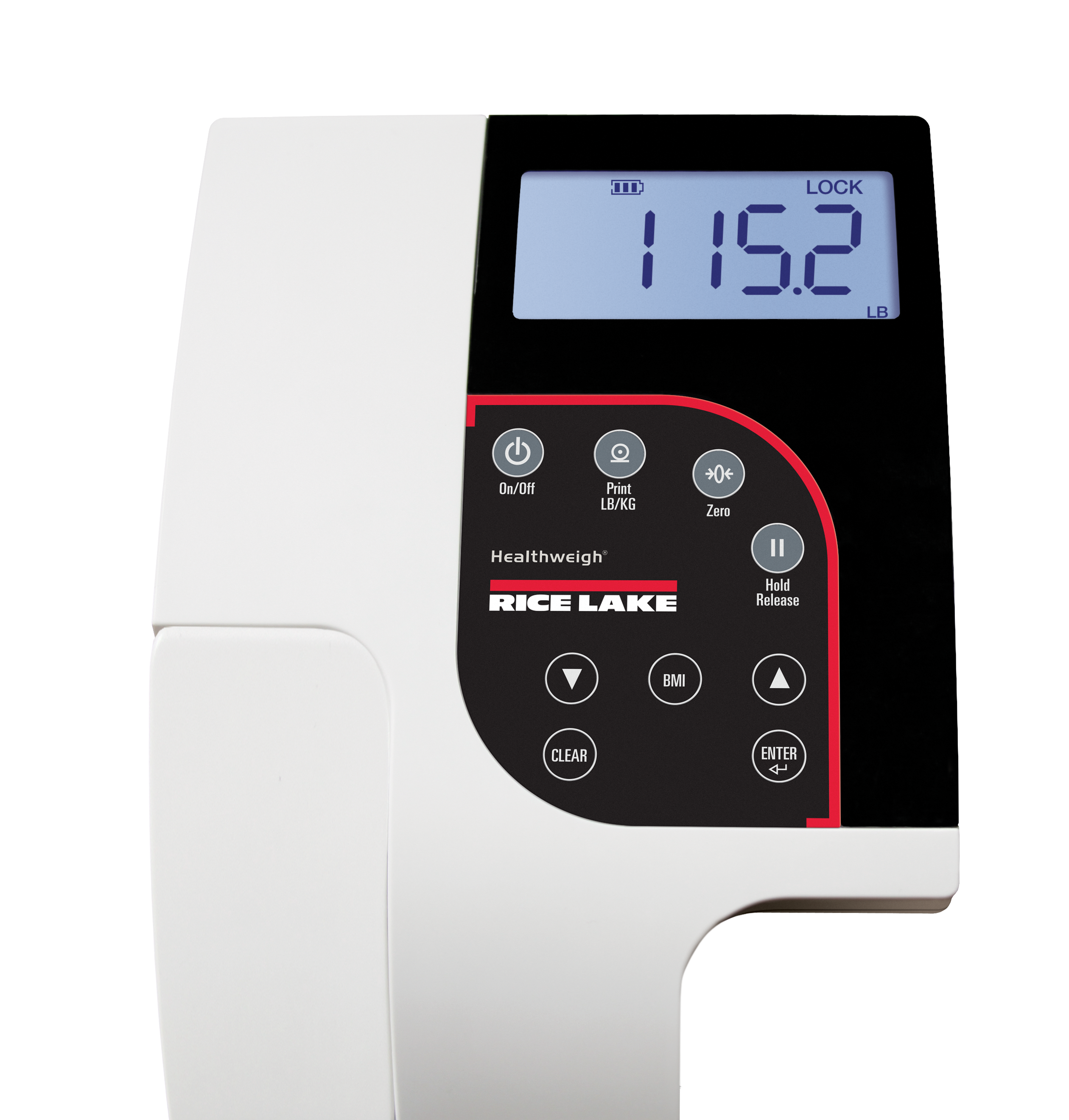

  • Large push-button LCD display
  • Antimicrobial keypad
  • Large, stable scale base

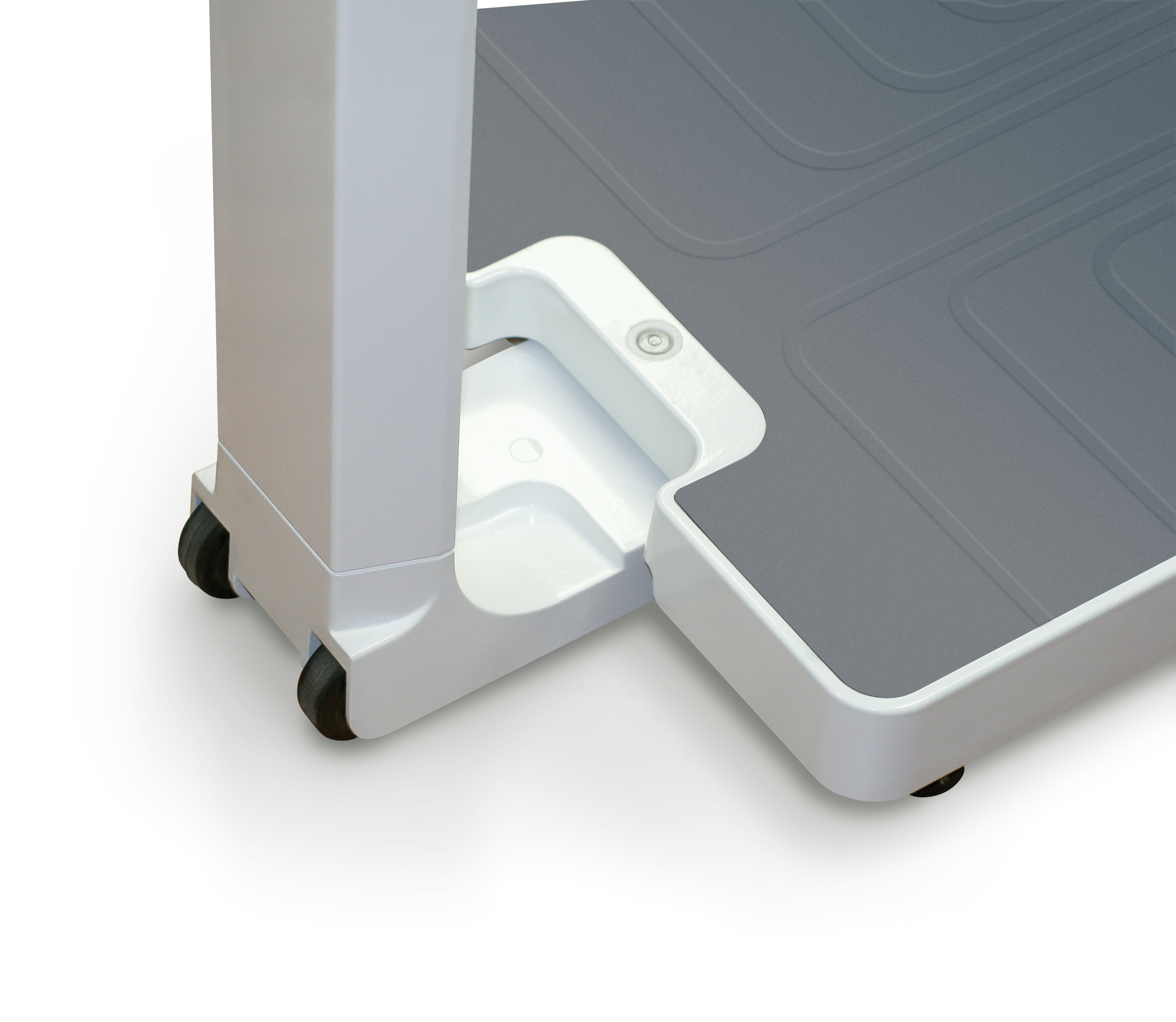

  • Rubber wheels for easy transport
  • Non-slip rubber mat, removable for cleaning
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EMR capable
  • Serial and USB data communication ports
  • Bluetooth® BLE 4.0 available, part number selectable
  • Hold function
  • Zero function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

Request Quote

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO CEMET

WARNING: Cancer and Reproductive Harm California Proposition 65

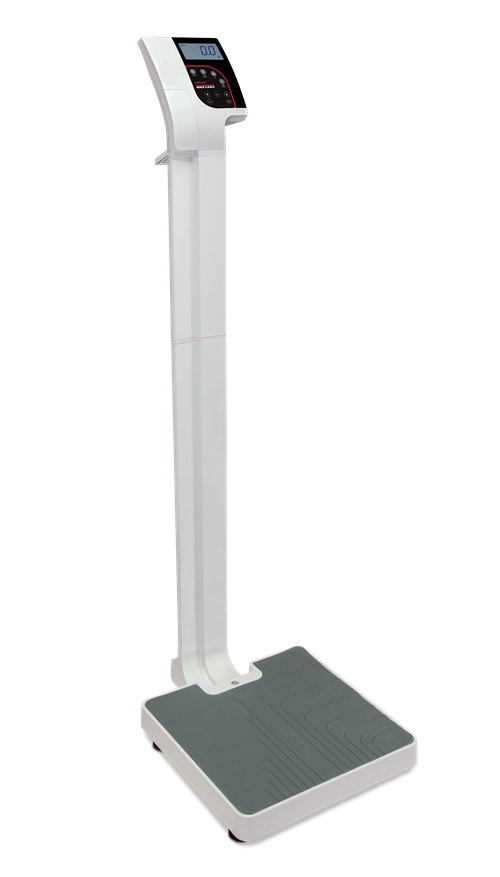

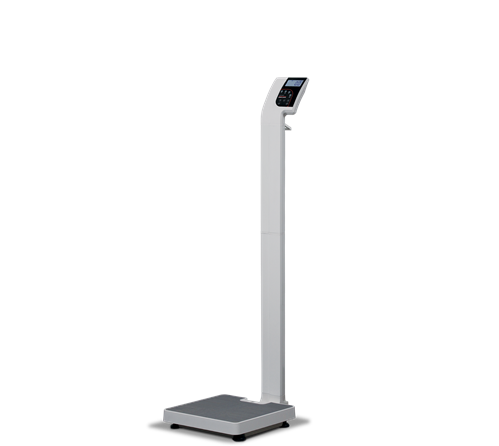

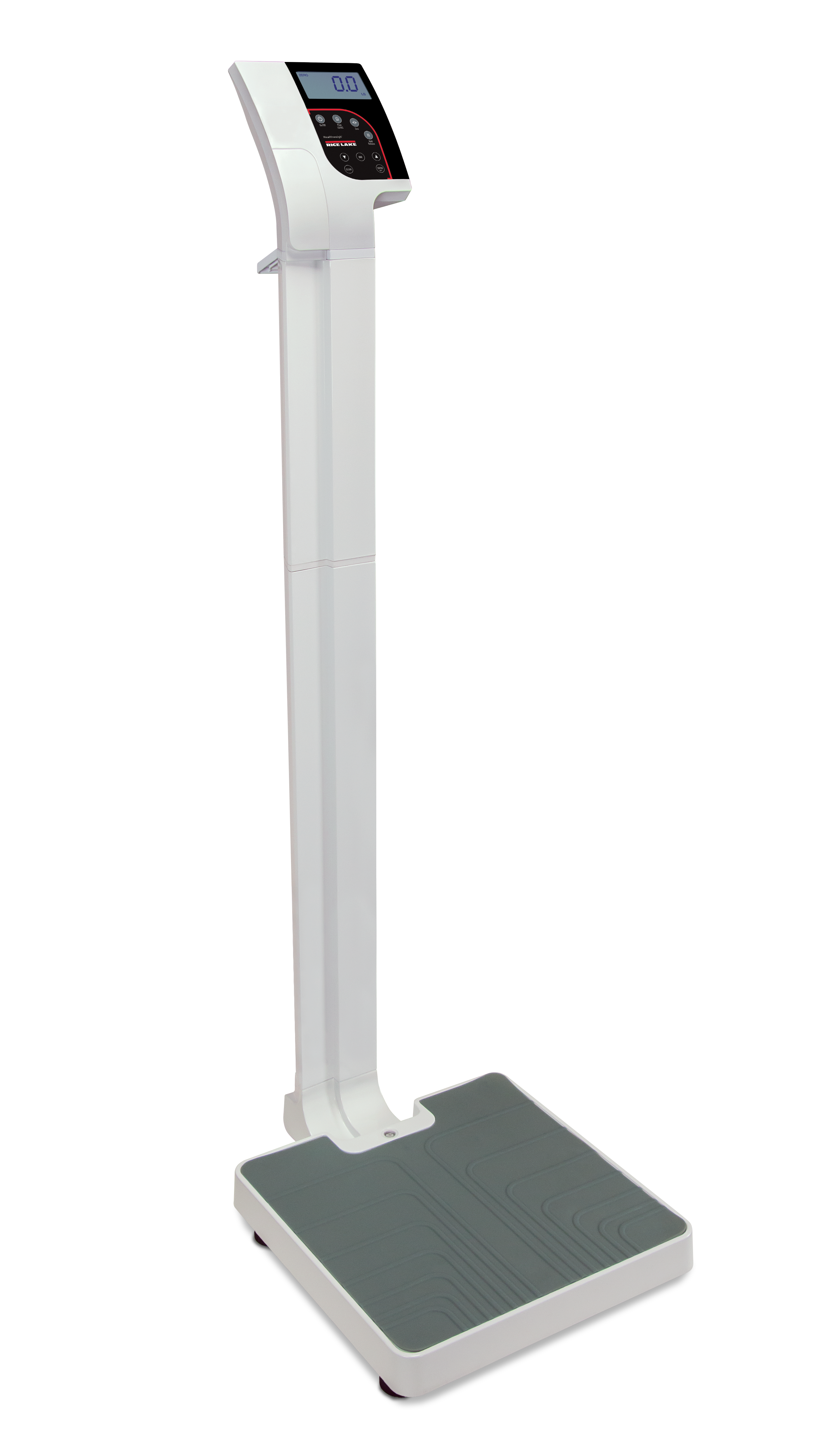

150-10-6 Digital Physician Scale Waist-Level

Waist-Level Digital Physician Scale

The Rice Lake Healthweigh® 150-10-6 digital physician scale is designed with a modern appearance and features a waist-level digital display at just over four feet for ease of use. The large, stable scale base is both comfortable and easily transported with two built-in rubber wheels. The 150-10-6 can be powered from an optional AC adapter or standard alkaline batteries. Its large push-button display lights up for simple viewing and an audible beep sounds at the end of each weigh cycle.

Capacity:
550 × 0.2 lb (250 × 0.1 kg)

Platform Dimensions:
(L × W × H)
14.70 × 14.70 × 3.00 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Temperature:
Operating:
50 °F to 104 °F (10 °C to 40 °C)

Approvals:
c-Met, E113986

Warranty:
Two-year limited

Dimensions Inches Centimeters
A 48.40 123.0
B 22.40 57.0
C 14.70 37.5
D 3.00 7.6





Shipping Weight
Part # Model # L × W × H Package Wgt. Dim Wgt. Shipping Wgt.
161786 150-10-6 30 × 19 × 9 in 25 lb 37 lb 37 lb
194732 150-10-6BLE 30 × 19 × 9 in 25 lb 37 lb 37 lb

Resources/Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles
What is ATOL and How Does it Affect My Scale? Email Health Scales Articles

Title Download Email
150-10-6 Digital Physician Scale Waist-level Catalog Page Download Email

Title Version Revision Download Email Category Archived
Digital Physician Scale Waist-Level 150-10-6 Operation Manual C Download Email Health Scales No
Digital Physician Scale Waist-Level 150-10-6 Technical Manual C Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales D Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales Yes
Changing the ATOL Setting A Download Email No

Title Download Email
150-10-5, 150-10-6 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Digital Physician Scales Request Download Email Health Scales|Physician Scales
Calibrating Patient Weighing Scales Request Download Email Health Scales
Medical Product Guide Request Download Email Health Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Health Scale Product Line Overview View Download Email Health Scales|Wheelchair Scales|Chair Scales|Pediatric Scales|Mechanical Health Scales|Home Health Scales
ScaleTalk: How to Calibrate a Rice Lake Medical Scale View Download Email Health Scales
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Proper Patient Weighing for Rice Lake Physician Scales View Download Email Health Scales|Physician Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email Indicators / Controllers
Measurement Solutions Throughout a Healthcare Facility View Download Email Health Scales

Title Download Email Category
150-10-6 Digital Physician Scale Warranty Download Email Health Scales

Title Download Email Category
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
Prescription Dosing Depends on Weight Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales

Parts

Part # Description List Price Cart/Quote
161786
Scale,Waist Level 150-10-6 550lb(250kg) x 0.2lb(100g) includes 6 AA Alkaline batteries

List Price: $675.00
194732
Scale,Waist Level 150-10-6BLE 550lb(250kg) x 0.2lb(100g) includes 6 AA Alkaline batteries and Bluetooth BLE 4.0

List Price: $910.00

Options

Part # Description List Price Cart/Quote
115655 Adapter,120-240VAC/9 VDC Power supply with US wall adapter

List Price: $43.00
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $30.00
102508 Power Cord, 220VAC AC, 9VDC 500MA, Healthweigh (includes EU plug), MSDS Required

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
79074 Cable Assy, USB 2.0, Male Type A to Male Type B, Black, 6 Feet

List Price: $35.00
217091 Cable Assy,Communication DB9 Female to RJ45 Female, 4 Conductor 26 AWG, PVC Jacket

List Price: $25.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

1 WEB 150 10 5 SC

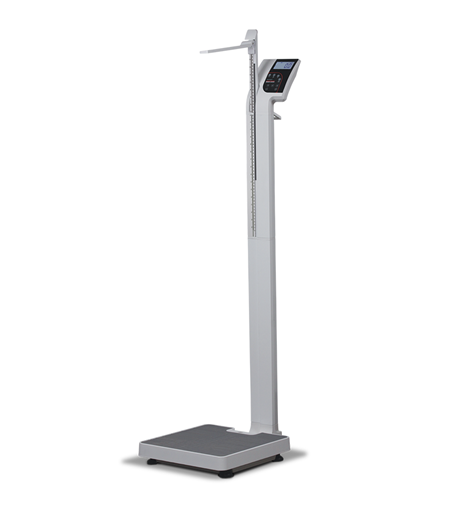

150-10-5 Digital Physician Scale Eye-Level

The Rice Lake Healthweigh® 150-10-5 digital physician scale is designed for both modern appearance and contemporary function, making it ideal for a range of medical and fitness environments.

WEB SC 150 10 7

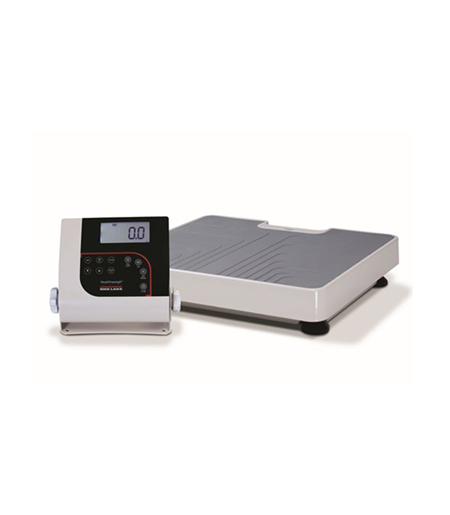

150-10-7 Digital Physician Scale Floor-Level

The Rice Lake Healthweigh® 150-10-7 floor-level digital physician scale provides precision weight measurements up to 550 pounds.

WEB 150 10 8 SC

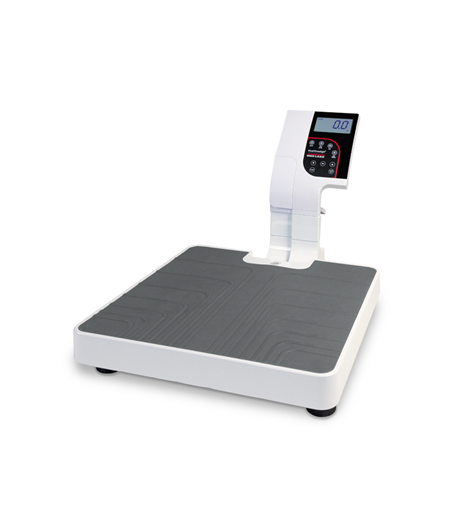

150-10-8 Digital Physician Scale Floor-Level
