150-10-7 Digital Physician Scale Floor-Level

Request Quote/Same-day Shipping Available

  • Large, stable scale base
  • Push-button LCD display
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EHR capable
  • USB or Bluetooth® BLE 4.0 available, part number selectable
  • Hold function
  • Zero function
  • BMI (body mass index) function
  • 6 ft cable between digital display and base
  • Factory calibrated

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO CEMET

WARNING: Cancer and Reproductive Harm California Proposition 65

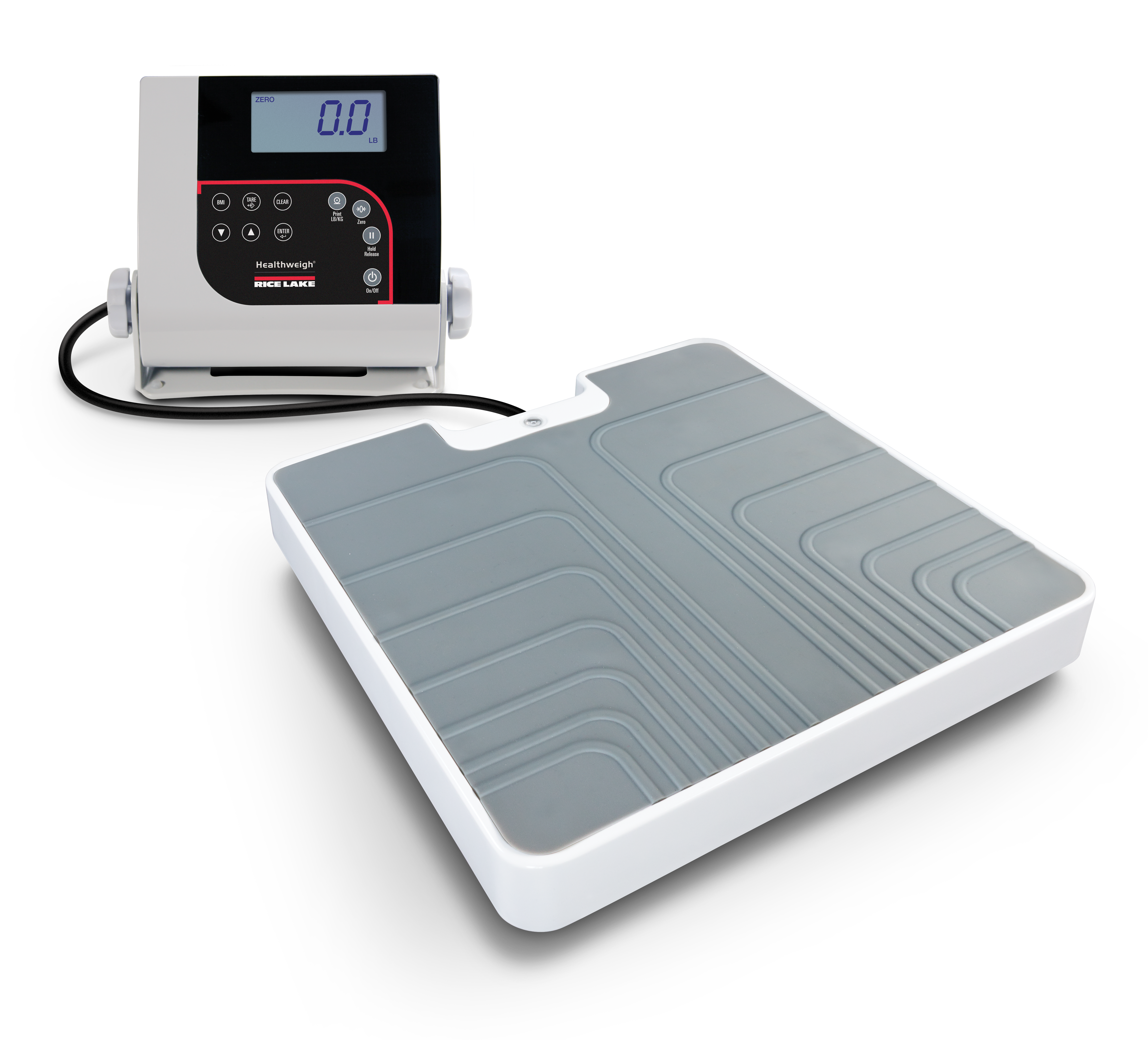

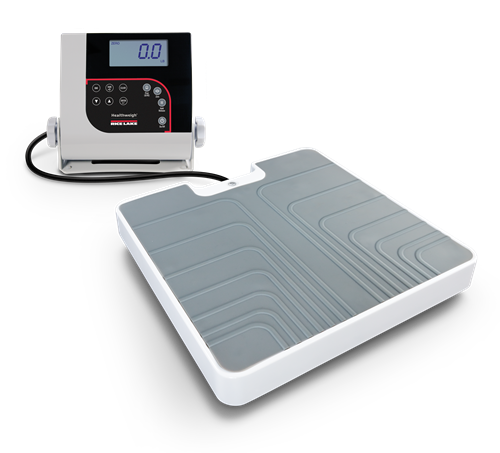

150-10-7 Digital Physician Scale Floor-Level

The Rice Lake 150-10-7 digital physician scale provides precision weight measurements up to 550 pounds. The large, stable scale base is both comfortable and easily transported with an optional carrying case. Whether powered from an optional AC adaptor or standard alkaline batteries, the 150-10-7 is easy to use. Its large push-button display lights up for easy viewing and an audible beep sounds at the end of each weigh cycle.

Capacity:
550 lb x 0.2 lb (250 kg x 0.1 kg)

Platform Dimensions:
(W x L x H) 14.5 in x 14.5 in x 3 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adaptor (optional)

Operating Temperature:
50° F to 104° F (10° C to 40° C)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured


Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Approvals:
c-Met, E113986

Warranty:
Two-year limited warranty

Dimensions
  Inches Centimeters
A 14.7 37.5
B 14.7 37.5
C 3.0 7.6
D 7.8 20
E 6.7 17







Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
121304 150-10-7 25 18 6 17 20 20
194728 150-10-7BLE 25 18 6 17 20 20





Revit files include all the architectural details related to the product design for project specification planning, such as building details, floor plans, and sizing.

Download Revit File

Resources / Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
Rice Lake Medical Scales Go to the Mat View Email Health Scales Application Story
The Importance of Medical Scale Calibration View Email Calibration Weights Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles

Title Download Email
150-10-7 Digital Physician Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
150-10-7 Digital Floor Level Scale Operation Manual 11454 C Download Email Health Scales No
150-10-7 Digital Floor Level Scale Technical Manual 11439 B Download Email Health Scales No
BLE Addendum Download Email Health Scales No
Bluetooth Setup Instructions A Download Email Health Scales No

Title Download Email
150-10-7 Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Digital Physician Scales Request Download Email Health Scales|Physician Scales
Calibrating Patient Weighing Scales Collateral Wizard Request Download Email Health Scales
Medical Product Guide Request Download Email Health Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Calibration Weights for Patient Weighing Download Email Health Scales

Title View Download Email Category
Health Scale Product Line Overview View Download Email Health Scales
Calibrating a Rice Lake Medical Scale View Download Email Health Scales
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Proper Patient Weighing for Rice Lake Physician Scales View Download Email Health Scales|Physician Scales

Title Download Email Category
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
Prescription Dosing Depends on Weight Download Email Health Scales

Parts

Part # Description List Price Cart
121304 Scale,Floor Level 150-10-7 550lb(250kg) x 0.2lb(100g) includes 6 AA Alkaline batteries

List Price: $480.00

194728 Scale,Floor Level 150-10-7BLE 550lb(250kg) x 0.2lb(100g) includes 6 AA Alkaline batteries and Bluetooth BLE 4.0

List Price: $715.00

Options

Part # Description List Price Cart
102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00

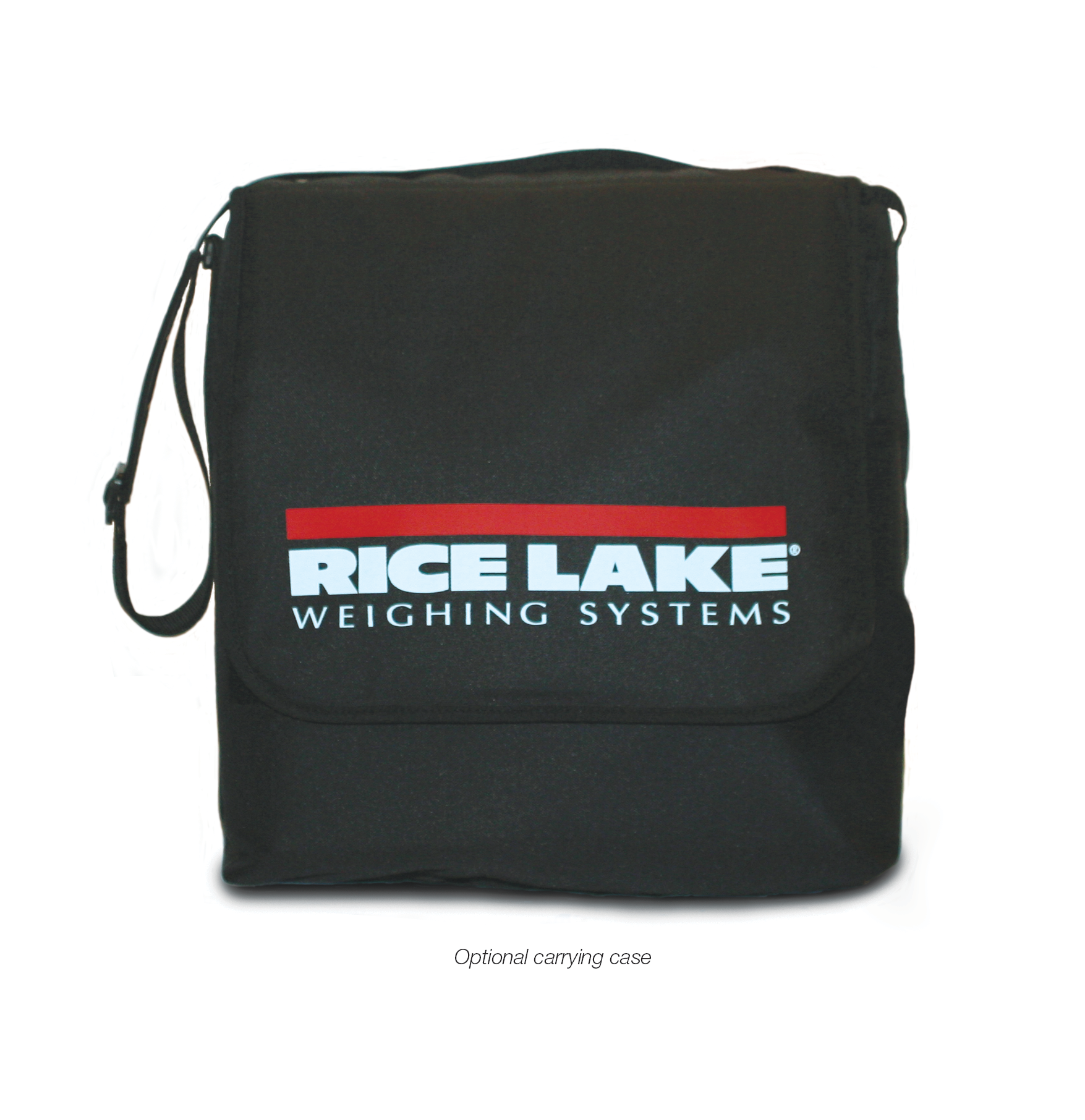

107445 Carrying Case, Scale 1

List Price: $92.00

115655 Adapter,120-240VAC/9 VDC

List Price: $43.00

133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved

List Price: $25.00

81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $420.00

186830 Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45

List Price: $65.00
