Product PDF

250-10-4 Bariatric Scale with Handrail and Chair Seat

  • Handrail for support and safety
  • Padded seat with backrest

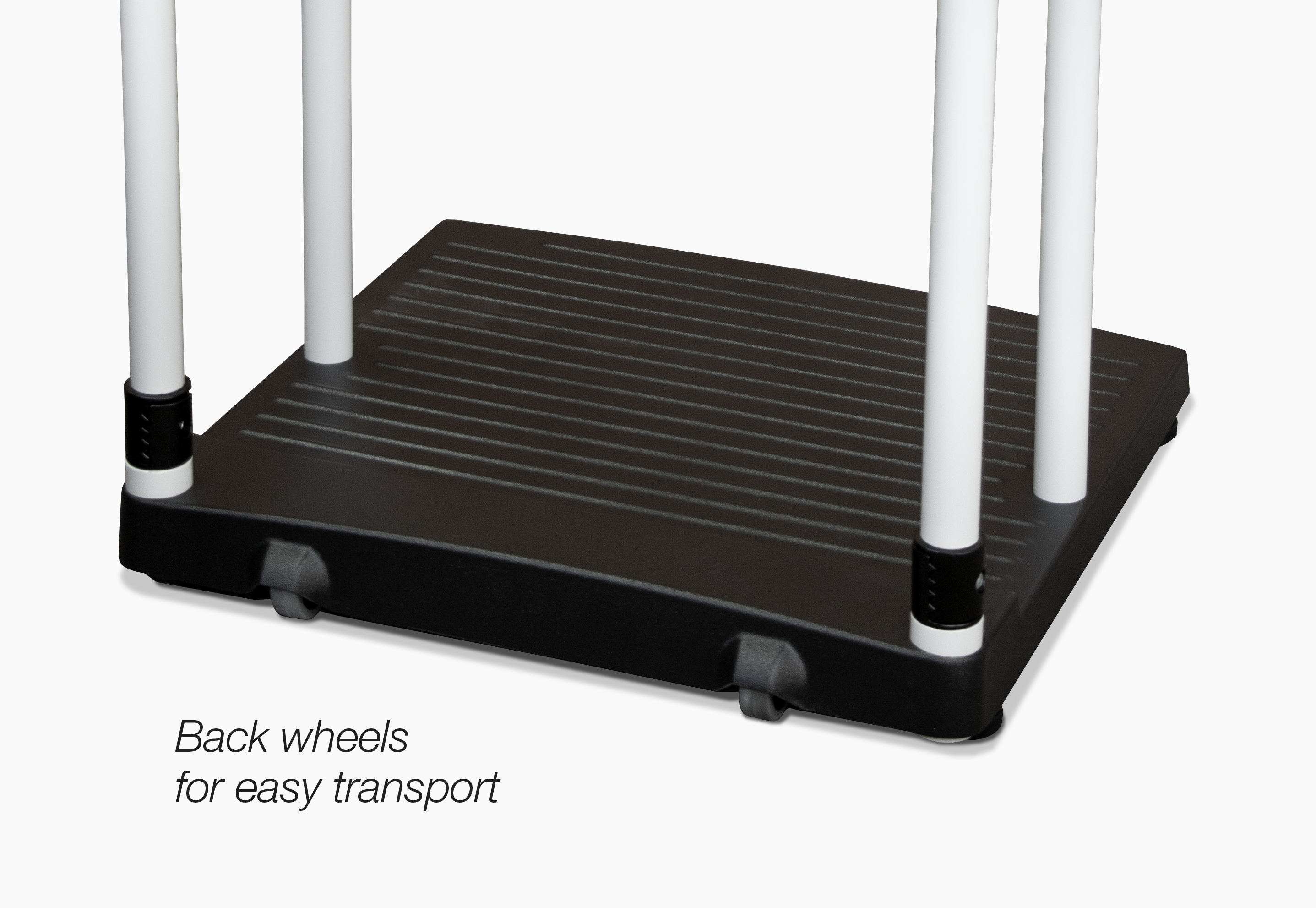

  • Two wheels for ease of portability
  • Large 1-inch LCD display
  • Nonslip platform
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EMR capable
  • Serial and USB data communication ports
  • Bluetooth® BLE 4.0 available, part number selectable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

Request Quote

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO CEMET

WARNING: Cancer and Reproductive Harm California Proposition 65

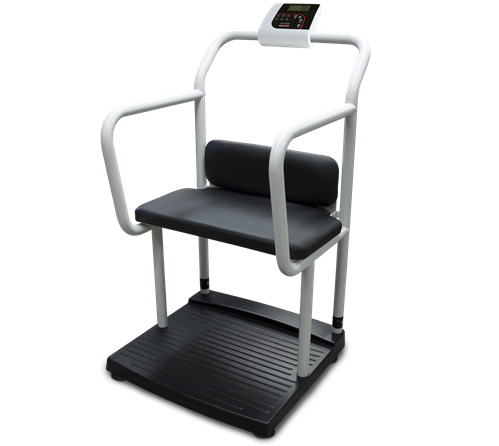

250-10-4 Bariatric Scale with Handrail and Chair Seat

Bariatric Scale with Handrail and Chair Seat

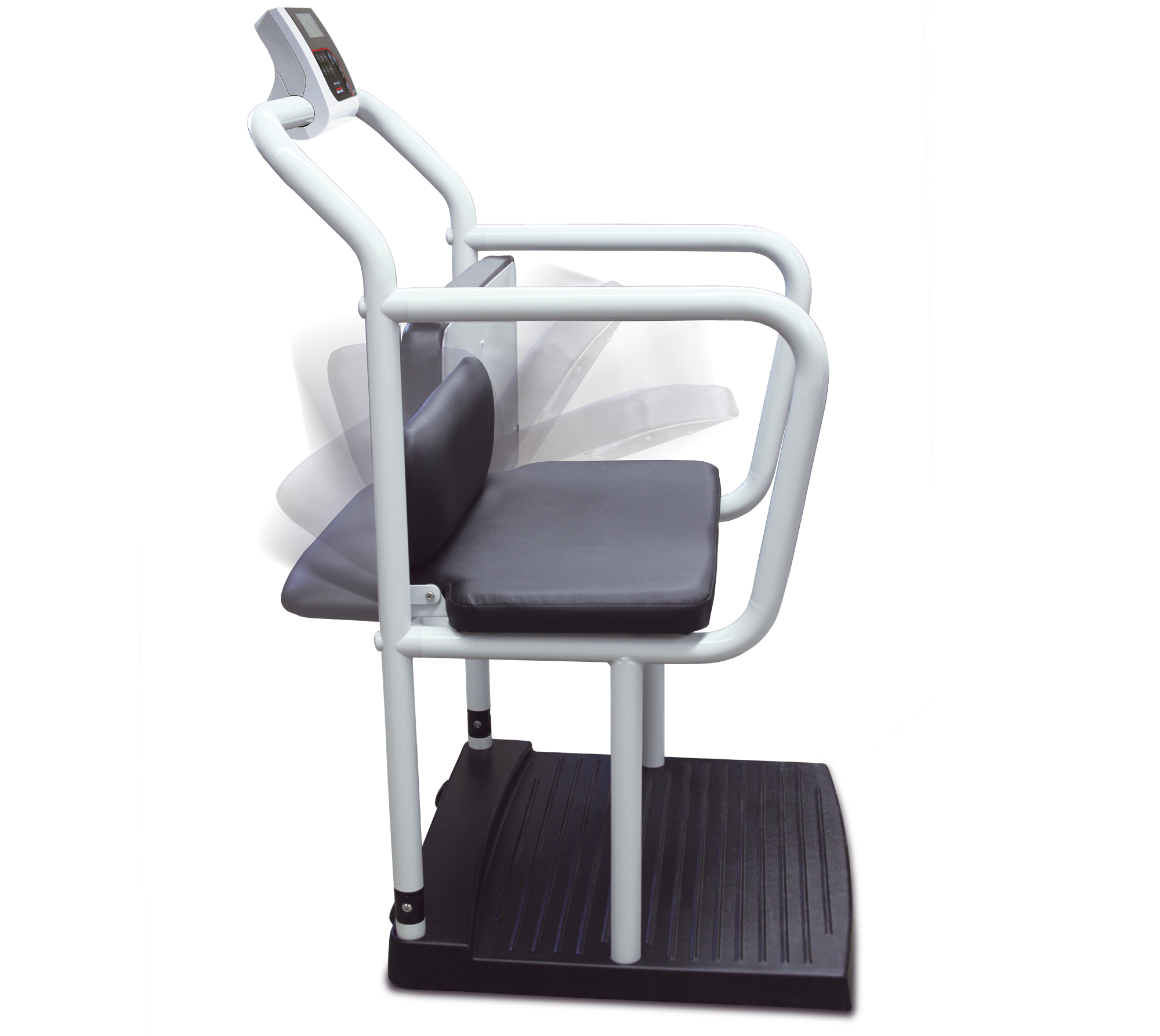

Rice Lake's Healthweigh® 250-10-4 bariatric scale with handrail and chair seat is designed for weighing patients who need extra support and safety during weighments. Patients can be weighed comfortably and safely while seated with the large, stable folding seat. Advanced movement compensation technology eliminates errors caused by involuntary movement of unsteady patients. Two heavy-duty rear wheels make it simple and effortless to move and store.

Capacity:
1,000 × 0.2 lb (450 × 0.1 kg)

Platform Dimensions:
(L × W × H)
25 × 20 × 3 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Operating Temperature:
50 °F to 104 °F (10 °C to 40 °C)

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Approvals:
c-Met, E113986

Warranty:
Two-year limited

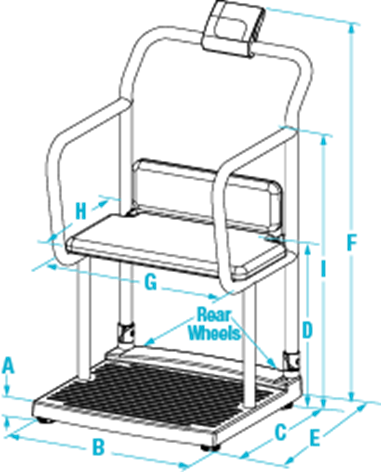

Dimensions
  Inches Centimeters
A 3.0 7.6
B 25.7 65.3
C 25.2 64.0
D 21.6 54.9
E 32.0 81.1
F 47.5 120.7
G 20.0 50.8
H 12.0 30.5







Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
133120 250-10-4 32 27 46 70 286 286
194734 250-10-4BLE 32 27 46 70 286 286





Resources / Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles
5 Reasons Why You May Need A Handrail Scale Email Handrail Scales|Health Scales Articles

Title Download Email
250-10-4 Bariatric Handrail Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Bariatric Handrail Scale with Seat 250-10-4 Operation Manual E Download Email Health Scales|Handrail Scales No
Bariatric Handrail Scale with Seat 250-10-4 Technical Manual D Download Email Health Scales|Handrail Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales B Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales Yes

Title Download Email
250-10-4 Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Bariatric Handrail Models 250-10-2, 250-10-4 Request Download Email Health Scales|Handrail Scales
Medical Product Guide Request Download Email Health Scales
Calibrating Patient Weighing Scales Collateral Wizard Request Download Email Health Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Healthweigh Indicator Keypad and CPU Board Testing Download Email Health Scales

Title View Download Email Category
Unpacking and Assembling Rice Lake's 250-10-4 Bariatric Scale with Handrail and Chair Seat View Download Email Health Scales
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales
Proper Patient Weighing for Rice Lake Bariatric Handrail Scales View Download Email Health Scales|Handrail Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators View Download Email Health Scales
ScaleTalk: How to Connect the Load Cell Cable on Healthweigh Indicators View Download Email Health Scales

Title Download Email Category
250-10-4 Bariatric Handrail Scale Warranty Download Email Health Scales

Title Download Email Category
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
Prescription Dosing Depends on Weight Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales

Parts

Part # Description List Price Cart
133120
Scale, Handrail Bariatric Scale 250-10-4 1000lb(450kg) x 0.2lb(100g) with Chair Seat includes 6 AA size Alkaline batteries

List Price: $2,030.00
194734
Scale, Handrail Bariatric Scale 250-10-4BLE 1000lb(450kg) x 0.2lb(100g) with Chair Seat and Bluetooth BLE 4.0 includes 6 AA size Alkaline batteries

List Price: $2,265.00

Options

Part # Description List Price Cart
115655 Adapter,120-240VAC/9 VDC

List Price: $43.00
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $25.00
102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
79074 Cable, USB 6ft USB-A (male) to USB-B (male)

List Price: $35.00
217091 Cable, Communication DB9 (female)to RJ45 (male), 4 Conductor

List Price: $25.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC 250 10 2

250-10-2 Bariatric Handrail Scale

Rice Lake's Healthweigh® 250-10-2 bariatric scale with handrail is designed for weighing patients who need extra support and safety.

WEB SC 260 10 1

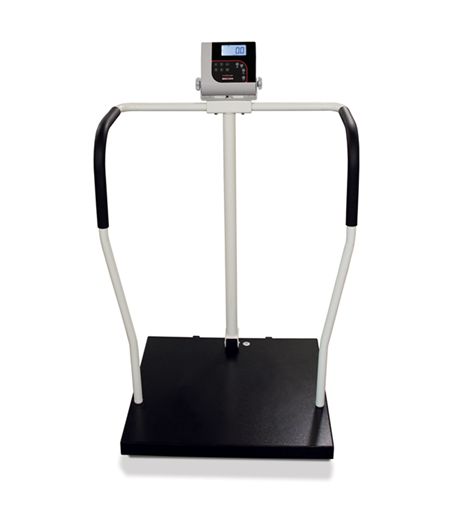

260-10-1 Bariatric Handrail Scale
