350-10-7 Single-ramp Wheelchair Platform Scale

Request Quote


  • Two wheels for portability
  • Single ramp
  • Non-slip platform
  • Large 1-inch LCD display
  • Motiontrap™ movement compensation technology
  • Unit of measure toggle or locking
  • EHR capable
  • USB or Bluetooth® BLE 4.0 available, part number selectable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO CEMET

WARNING: Cancer and Reproductive Harm California Proposition 65

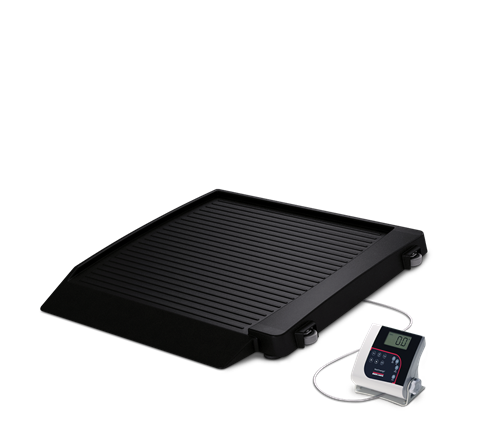

Single-ramp Wheelchair Platform Scale

Rice Lake's 350-10-7 single-ramp wheelchair platform scale allows high capacity, accurate weighing for a wide range of patients. Convenient keypad tare reduces errors and increases efficiency. This sturdy scale is easily transported on two heavy-duty rear wheels to any location.

Capacity:
1,000 × 0.2 lb (450 × 0.1 kg)

Platform Dimensions Without Ramps:
(W × L × H)
32.0 × 29.5 × 2.4 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours of continuous use with batteries
Automatic power-off can be configured

Operating Temperature:
50 °F to 104 °F (10 °C to 40 °C)

Display:
5-digit LCD display, 0.75 in (1.9 mm) digit height

Approvals:
c-Met, E113986

Warranty:
Two-year limited

Dimensions
  Inches Centimeters
A 29.5 74.9
B 32.0 81.3
C 2.4 6.1
D 9.25 23.5
E 37.5 95.3





Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
141446 350-10-7 45 44 7 78 100 100
194738 350-10-7BLE 45 44 7 78 100 100





Resources / Downloads

Title Download Email
350-10-7 Single-ramp Wheelchair Platform Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
350-10 Series Digital Wheelchair Scale Operator Manual E Download Email Health Scales|Wheelchair Scales No
350-10 Series Digital Wheelchair Scale Technical Manual F Download Email Health Scales|Wheelchair Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales B Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales No

Title Download Email
350-10-7, 350-10-8 Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Wheelchair Scales: Vacuum Formed Scale Top Request Download Email Health Scales|Wheelchair Scales
Medical Product Guide Request Download Email Health Scales
Calibrating Patient Weighing Scales Collateral Wizard Request Download Email Health Scales

Title Version Size Release Date Download Email
Health Scales USB Driver - Titanium 10-button model 1 1.2 KB 06/17/2014 Download Email

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales
Calibrating a Rice Lake Medical Scale View Download Email Health Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email

Title Download Email Category
350-10-7 Single-Ramp Wheelchair Platform Scale Warranty Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales

Parts

Part # Description List Price Cart
141446 Scale, Wheelchair Platform Scale, 350-10-7 1000lb(450kg) x 0.2lb(100g) with (1) 9.25in. Ramp includes 6 AA size Alkaline batteries

List Price: $1,225.00

194738 Scale, Wheelchair Platform Scale, 350-10-7BLE 1000lb(450kg) x 0.2lb(100g) with (1) 9.25in. Ramp with Bluetooth BLE 4.0 and 6 AA size Alkaline batteries

List Price: $1,460.00

Options

Part # Description List Price Cart
115655 Adapter,120-240VAC/9 VDC

List Price: $43.00

133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved

List Price: $25.00

102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00

81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00

186830 Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45

List Price: $69.00
