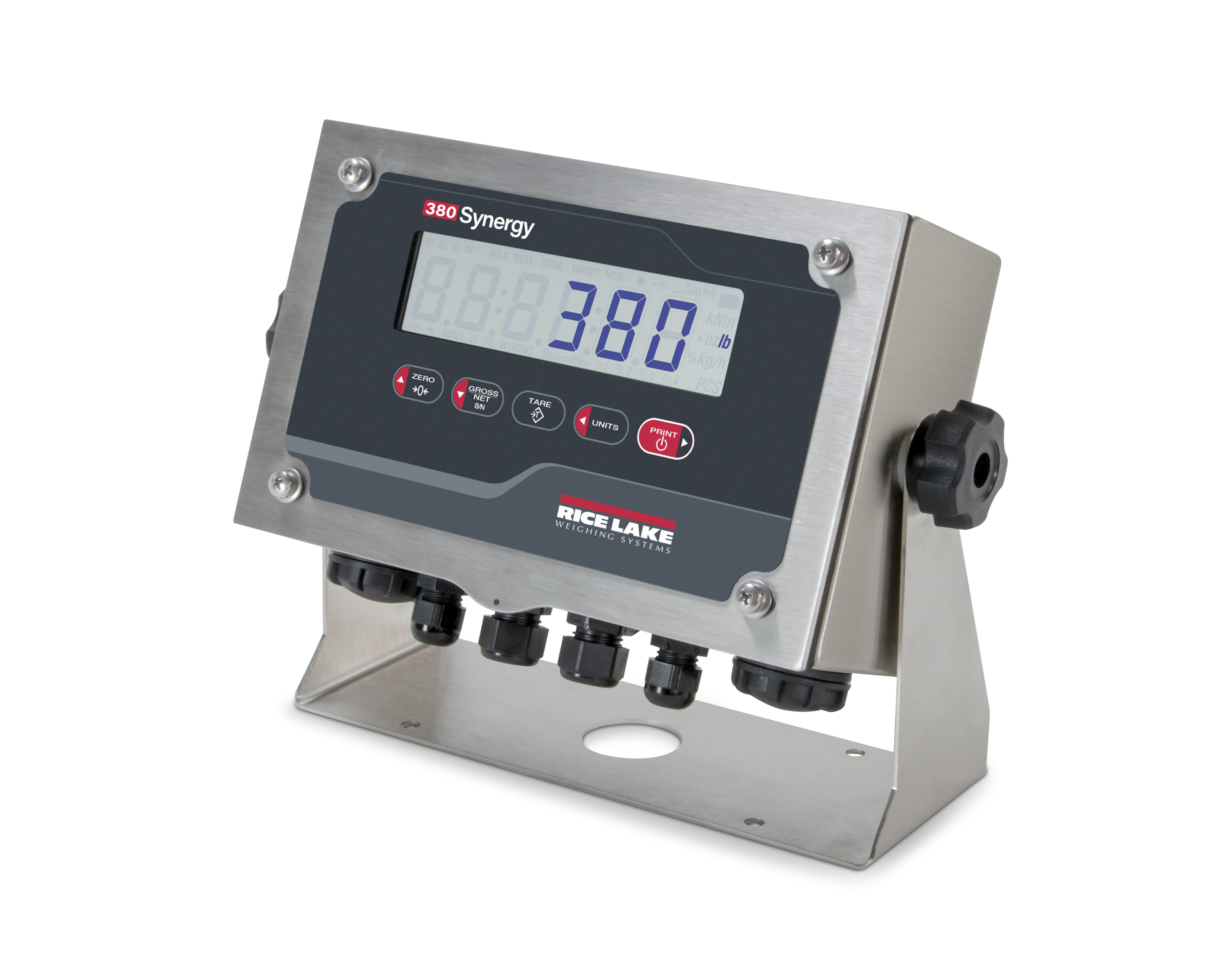

380 Synergy Series Digital Weight Indicator

  • LCD display
  • Alkaline battery powered
  • Push-button and keyed tare
  • Two communication ports
  • Five tactile buttons
  • Configurable print formats

Options

  • Time/date
  • External power supply

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW ULCUS CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Powerful, Straightforward Operation

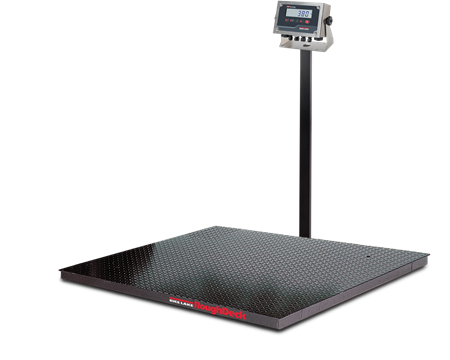

Utilize the 380 Synergy Series indicator for straightforward weighing systems including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.

The 380 Synergy is battery powered, providing up to 100 hours of continuous use. A five-button keypad makes operation quick and simple while RS-232 and USB ports make it easy to connect to peripheral equipment.

Configurable print formats allow you to print only the most important information to your application. Optional date/time and external power supply are also available to meet the needs of your application.

Durable Construction

A stainless steel, IP66 enclosure means the 380 Synergy is dust-tight and can stand up to high-pressure water. A bright, six-digit LCD display makes weight data easy to see.

Power:
Batteries: 4 alkaline C-cell (not included)
Optional: 115/230VAC to 12VDC adapter

Power Consumption:
6 W max with optional external power adapter

Battery Life:
100 hours with 1 x 350 ohm load cell, no backlight
45 hours with 4 x 350 ohm load cells, low backlight
20 hours with 8 x 350 ohm load cells, low backlight

Excitation Voltage:
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-0.3 mV to +30 mV
Common mode voltage 0.7V to 3.3V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 100,000

System Linearity:
Within 0.01% full scale

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Display:
Six 1 in (25 mm) tall, LCD digits

Keys/Buttons:
5 tactile buttons

Dimensions:
(L × W × H)
11.58 × 74.53 × 8.57 in
(294 × 115 × 218 mm)

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
IP66, 304 Stainless steel

Weight:
6.25 lb (3 kg)

Warranty:
Two-year limited

EMC Immunity:
10 V/m

Approvals:
NTEP CC 21-051, Class III/IIIL, 10,000 d
Measurement Canada AM-6184
cULus
CE marked



Dimensions
A 9.50 in (241 mm) E 4.53 in (115 mm)
B 6.00 in (152 mm) F 3.53 in (90 mm)
C 8.57 in (218 mm)
D 11.58 in (294 mm)



Resources / Downloads

Title Download Email
380 Synergy Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
380 Synergy Digital Weight Indicator Technical Manual D Download Email Weight Indicators|Indicators / Controllers No

Title Collateral Wizard Request Download Email Category
380 Synergy Digital Weight Indicator Request Download Email Indicators / Controllers|Weight Indicators
Synergy Series Digital Weight Indicators Matrix Download Email
Rice Lake Indicator Family Matrix Request Download Email Indicators / Controllers

Title View Download Email Category
ScaleTalk: 380 Synergy Series Setup & Calibration View Email
ScaleTalk: How to Access the Configuration Menu on the 380 Synergy Series View Download Email
ScaleTalk: How to Default the 380 Synergy Series View Download Email

Parts

Part # Description List Price Cart
202711 Indicator,380 Universal Segmented LCD Display, Battery Powered, Synergy Series

List Price: $635.00

Options

Part # Description List Price Cart
206433 Power Supply Assy,12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input

List Price: $52.00

204258 BRD ASSY, RTC MODULE 380 RTC ADD-ON BOARD, ROHS

List Price: $112.00
