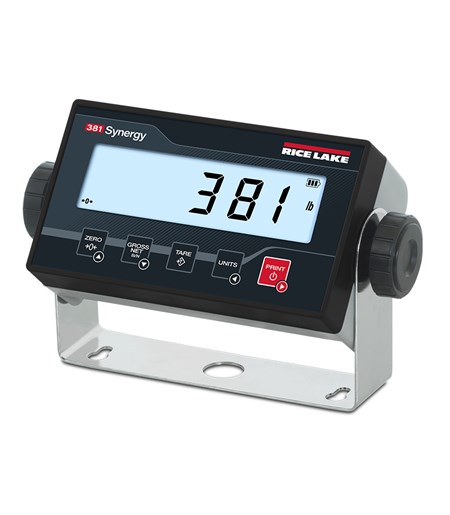

380X Synergy Series Washdown Digital Weight Indicator

Power:
Battery: Lithium ion
Charger: 120 VAC internal

Power Consumption:
25 W max with internal power

Battery Life:
45 hours, one 350 ohm load cell, no backlight
15 hours, four 350 ohm load cells, no backlight
10 hours, eight 350 ohm load cells, backlight

Excitation Voltage:
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-0.3 mV to +30 mV
Common mode voltage 0.7 V to 3.3 V

Analog Signal Sensitivity:
1 µV/graduation recommended

A/D Sample Rate:
5, 6, 10, 12, 20, 25, 40, 50, 80, 100 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 100,000

System Linearity:
Within 0.01% full scale

Communication Ports:
One full-duplex RS-232 (three-wire)
One USB 2.0

Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Display:
Six 1 in (25 mm) tall, LCD digits

Keys/Buttons:
Five-tactile buttons

Dimensions:
(L × W × H)
11.58 × 4.53 × 8.57 in
(294 × 115 × 218 mm)

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
IP69K, 304 Stainless steel

Weight:
6.25 lb (3 kg)

Warranty:
One year limited on battery
Two year limited on indicator and parts

EMC Immunity:
10 V/m

Approvals:
NTEP 21-051
Measurement Canada AM-6184
cULus
CE
UKCA
IEC
