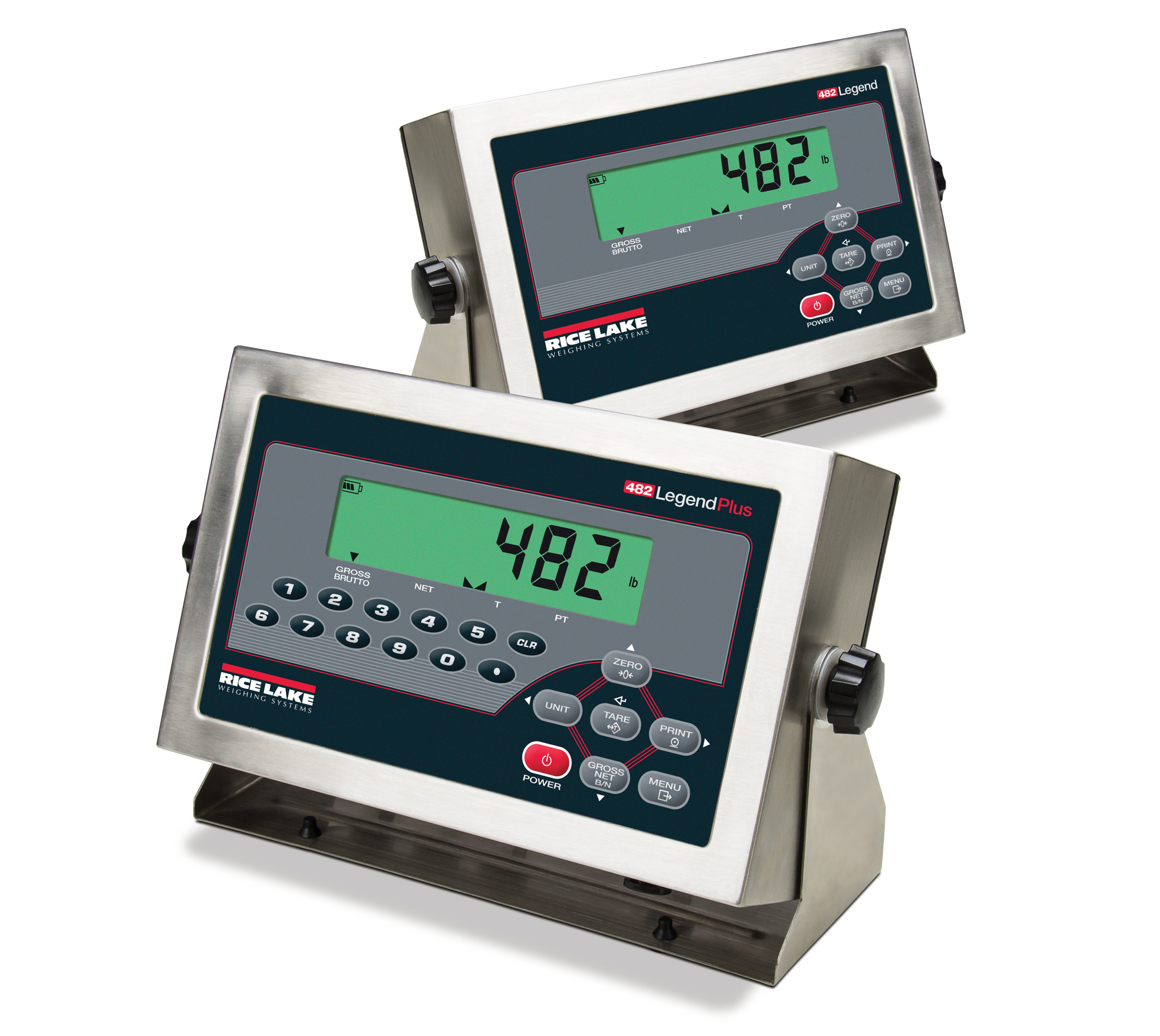

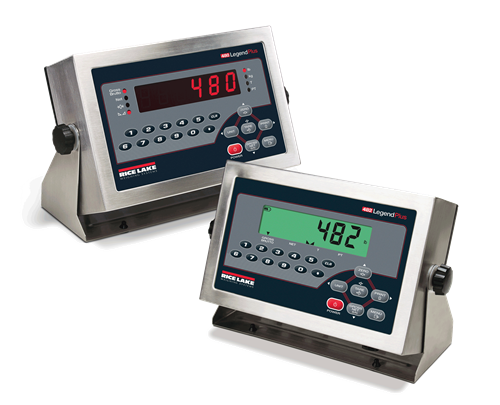

480/482 Legend™ Series Digital Weight Indicator

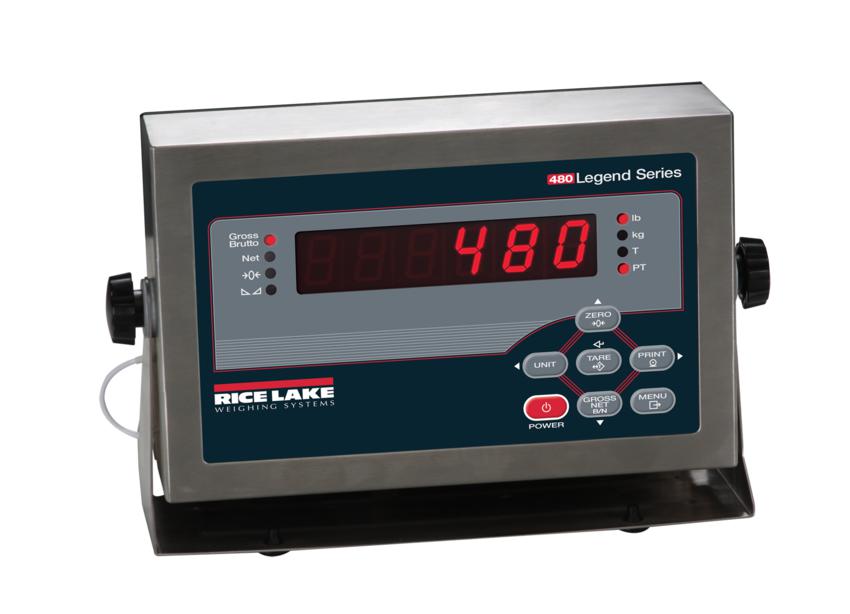

  • LED display, 0.8 in (20 mm), six-digit, seven-segment (480)

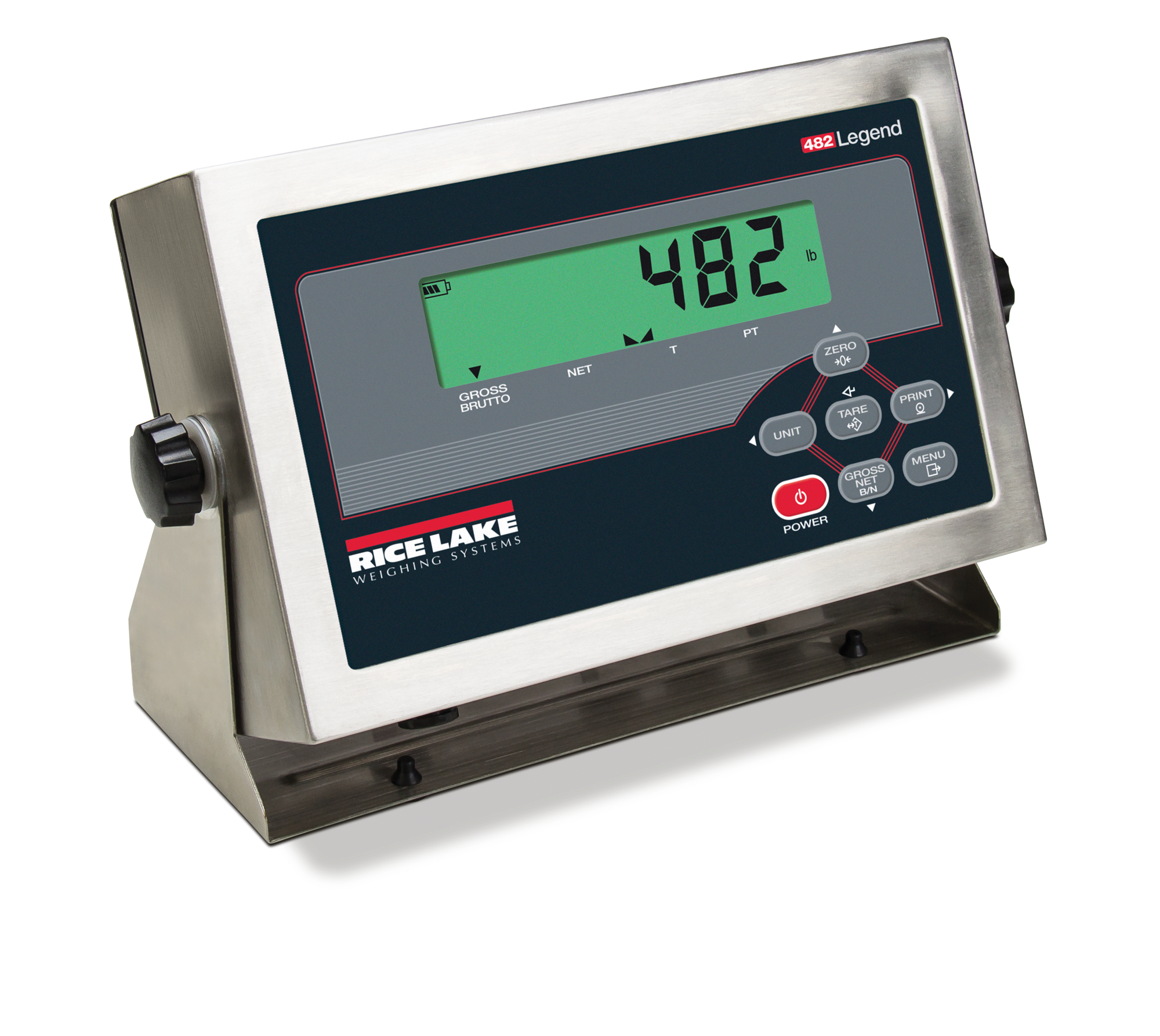

  • LCD backlit display, 0.8 in (20 mm), six-digit, seven segment (482)
  • Time and date, battery backed
  • Local/remote operation
  • Numeric keypad (480/482 Plus)
  • Keyed entries for setpoint values (480/482 Plus)
  • Two independent serial ports, RS-232 and 20 mA
  • NEMA Type 4X/IP66 stainless steel washdown enclosure
  • Programmable ticket formats for gross, net, accumulator and setpoints
  • Five continuous stream formats
  • Adapter filter or rolling average filter
  • Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
  • Eight setpoints, sequenced batch engine
  • Configurable with Revolution® software

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo ULCUS LOGO Measurementcanada Approved BW CE Mark LOGO NOM LOGO EU Certified NAWI

WARNING: Cancer and Reproductive Harm California Proposition 65

Defining Value and Performance

With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.

Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.

The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify

Power:
Line voltages: 100 to 240 VAC
Frequency: 50 to 60 Hz
DC voltages: n/a
Power consumption: 8 W

Excitation Voltage:
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
±7mV/V

Analog Signal Sensitivity:
0.1 μV/graduation minimum,
0. 5 μV/graduation recommended

A/D Sample Rate:
5, 10, 20, 40 Hz, software selectable

Resolution:
Internal: 523,000 counts
Display: 100,000 graduations

System Linearity:
Within 0.01% of full scale

Digital I/O:
Optional 2 or 4 inputs
4 or 8 dry-contact relays

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

(Optional) Analog Output:
16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA

(Optional) Relay Board:
Two opto-isolated, 5 to 24 VDC, active high inputs.
Two inputs (requires relay output option). Primary keys, pseudo functions, batching functions.
(4) 30 VDC, 2 amp dry-contract relays

(Optional) Ethernet and USB Board:
USB five-pin header for PC, printer or flash drive.
Ethernet TCP/IP, RJ45 jack, server and client ports.

Display:
480/480 Plus: LED display
0.8 in (20 mm), six-digit, seven-segment
482/482 Plus: LCD backlit display, Transmissive/Transflective
0.8 in (20 mm), six-digit, seven-segment

Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Weight:
6.4 lb (2.9 kg)

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Warranty:
Two-year limited

EMC Immunity:
EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, and 11

Approvals:
NTEP CC 12-123, Class III/IIIL, 10 000d
Measurement Canada AM-5892, Class III/IIIHD, 10,000d
OIML R76/2006-NL1-12.48
EU Test Certificate TC8322
CE Marked
cULus

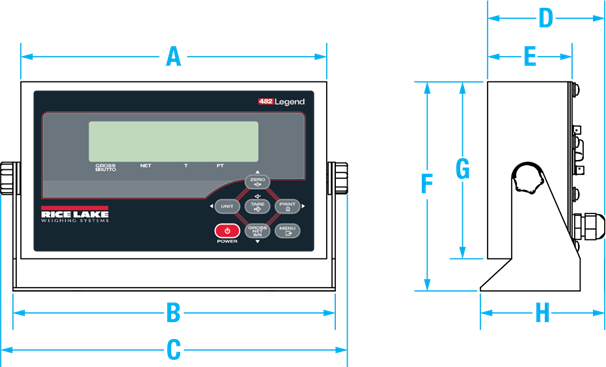

Dimensions
A 9.50 in (241 mm) D 3.65 in (92 mm) G 6.00 in (152 mm)
B 10.00 in (254 mm) E 2.75 in (70 mm) H 3.75 in (95 mm)
C 11.00 in (279 mm) F 7.00 in (178 mm)



Resources / Downloads

Title View Email Category Type
Extreme Clean: Meeting Meat's Cleanliness Standards View Email Floor Scales Application Story
King of the Zoo View Email Articles
Quest for the Giant Pumpkin View Email Articles
Studies with Scales View Email Floor Scales|Indicators / Controllers Application Story
The Nose Knows View Email Floor Scales Articles|Application Story

Title Download Email
480/482 Legend Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
480 Legend Series Digital Weight Indicator Technical Manual 1 N Download Email Indicators / Controllers|Weight Indicators No
480 Legend Series Digital Weight Indicator Operation Manual 1 D Download Email Indicators / Controllers|Weight Indicators No
482 Legend Series Digital Weight Indicator Technical Manual 1 D Download Email Indicators / Controllers|Weight Indicators No
482 Legend Series Digital Weight Indicator Operation Manual 1 C Download Email Indicators / Controllers|Weight Indicators No
480/482 Panel Mount Option C Download Email Indicators / Controllers|Weight Indicators No
480/482 Legend Series Battery Option Installation B Download Email Indicators / Controllers|Weight Indicators No
480/482 Legend Series USB/Ethernet Option E Download Email Indicators / Controllers|Weight Indicators No
480/482 Menu Map B Download Email Indicators / Controllers|Weight Indicators No

Title Download Email
480/482 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
480 Legend Series Digital Weight Indicator Request Download Email Indicators / Controllers
Rice Lake Weight Indicator Product Guide Request Download Email Indicators / Controllers|Weight Indicators
Rice Lake Indicator Family Matrix Request Download Email Indicators / Controllers

Title Version Size Release Date Download Email
480/482 Legend Series Firmware 1.06.03 346.9 KB 07/14/2021 Download Email

Title Version Size Release Date Download Email
Revolution Scale Software 3.37 214.6 MB 05/25/2022 Download Email
480 Legend Series USB Driver (connect to PC) - 1.4 KB 03/08/2017 Download Email
480/482/482-AG Flash Loader 1 887.2 KB 06/01/2015 Download Email

Title View Download Email Category
480 Legend Series: Configuration & Calibration View Download Email Weight Indicators|Indicators / Controllers
480 Legend Series: Digital Filtering Options View Download Email Weight Indicators|Indicators / Controllers
480 Legend Series: Menu Structure View Download Email Weight Indicators|Indicators / Controllers
480 Legend Series: Part 1, Overview View Download Email Weight Indicators|Indicators / Controllers
480 Legend Series: Part 2, Local/Remote Streaming View Download Email Weight Indicators|Indicators / Controllers
480 Legend Series: Part 3, Setpoint Setup View Download Email Weight Indicators|Indicators / Controllers
Go-Between Demonstration with 480 Legend Series View Download Email Indicators / Controllers|Accessories

Parts

480 Legend Series 115 VAC

Part # Description List Price Cart
126564 Indicator,480 Legend LED Display,115VAC NEMA 5-15 Plug, Stainless Steel Enclosure

List Price: $745.00

130338 Indicator,480 Legend LED Display, 115VAC NEMA 5-15 Plug, Stainless Steel Enclosure with Analog Output 0-10VDC, 4-20ma.

List Price: $1,145.00

480 Legend Series 90-264 VAC

480 Plus Legend Series 115 VAC

480 Plus Legend Series 90-264 VAC

482 Legend Series 115 VAC

482 Legend Series 90-264 VAC

482 Plus Legend Series 115 VAC

482 Plus Legend Series 90-264 VAC

Options

Part # Description List Price Cart
131340 Bracket,Mounting Assy for Option Modules in 480 Indicator

List Price: $29.00

131341 Ind OPT, Analog Output 480, 0-10VDC, 4-20Ma

List Price: $385.00

131342 Ind OPT, Relay 480 2 Digital Inputs, 4 Dry contact relays

List Price: $225.00

164604 Ind OPT,Ethernet Cable with Cord Grip, RJ45 Connector, 6 foot Length

List Price: $60.00

164602 Ind OPT,480 USB Cable with Cord Grip, Type A Female Connector, 6 inch (20cm) Length

List Price: $60.00

167707 Ind OPT,480 USB Cable with Cord Grip, Type A Male Connector, 200 CM Length

List Price: $60.00

167708 Ind OPT,480 USB Cable with Cord Grip, Type B Male Connector, 200 CM Length

List Price: $60.00

165379 Cable,480 Flash Update Connects into J14 via RS232.

List Price: $75.00

164650 Ind Opt,Battery Kit For 480/ 482. Includes Battery, Holder, Charger Board, Cable

List Price: $245.00

151100 Ind Opt,A/D Sealing Kit Cover for A/D on 480 Indicator

List Price: $38.00

151099 Panel,Mount Option 480/680 Indicator,Gasketed Non-NEMA Seal.

List Price: $185.00

83564 Overlay,Clear Protective Window with Adhesive Edge, Package of Five Each, IQ+355, 320IS, 420, CW90

List Price: $75.00

119201 LIT,Manual 480 Technical 480 Legend Series Technical Manual

List Price: $29.00

165124 LIT,Manual 482 Technical 482 Legend Series Technical Manual

List Price: $29.00

Primary Replacement Components

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

1 US Roughdeck 680

RoughDeck® Rough-n-Ready System Floor Scale and 680 Plus Indicator

The RoughDeck Rough-n-Ready Floor Scale System combines the power and intelligence of a digital diagnostic junction and the durability of a RoughDeck floor scale.

MSC30

BenchMark® MSC-30 Mobile Scale Cart

The BenchMark™ MSC mobile scale carts are ideal for applications where bench scale portability is necessary.

WEB SC Deckhand Rough N Ready

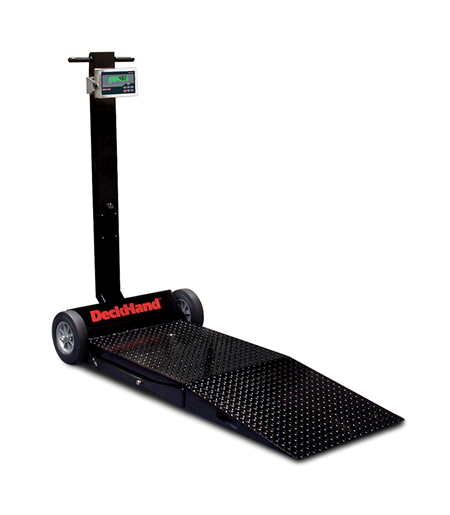

DeckHand™ Rough-n-Ready Portable Floor Scale System
