550-10-1 Digital Chair Scale

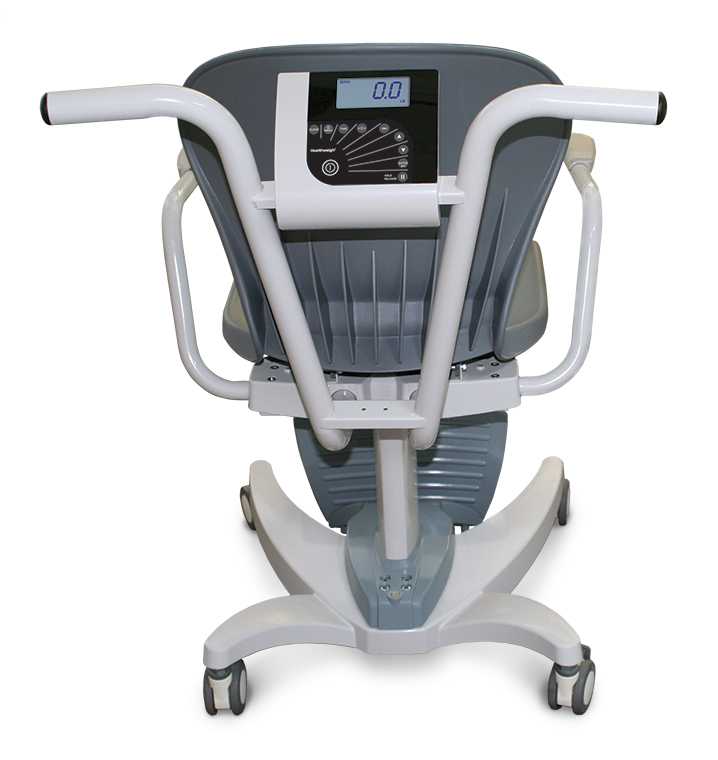

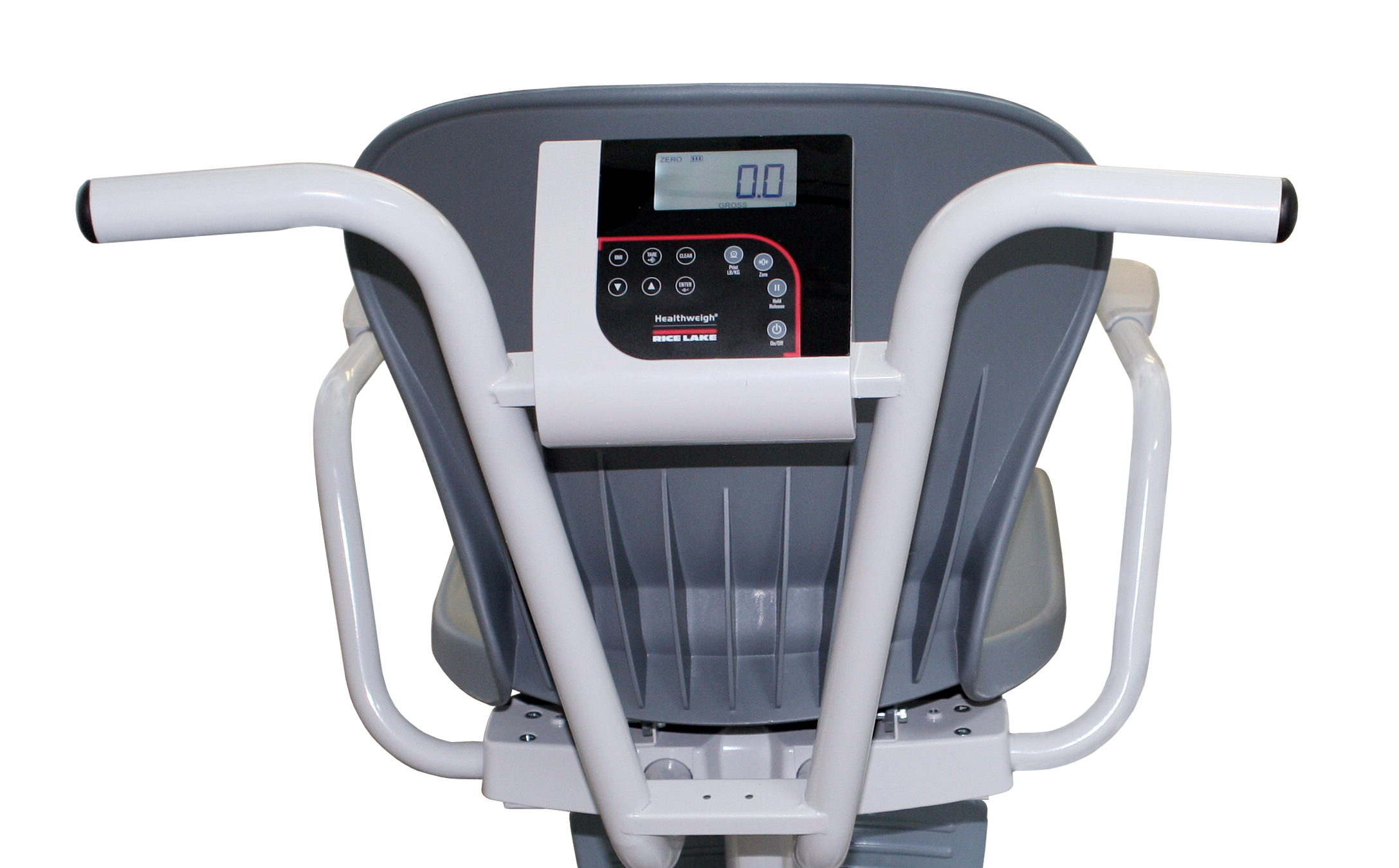

  • Large LCD display
  • Antimicrobial keypad
  • Enameled tubular steel frame
  • Four heavy-duty locking caster wheels

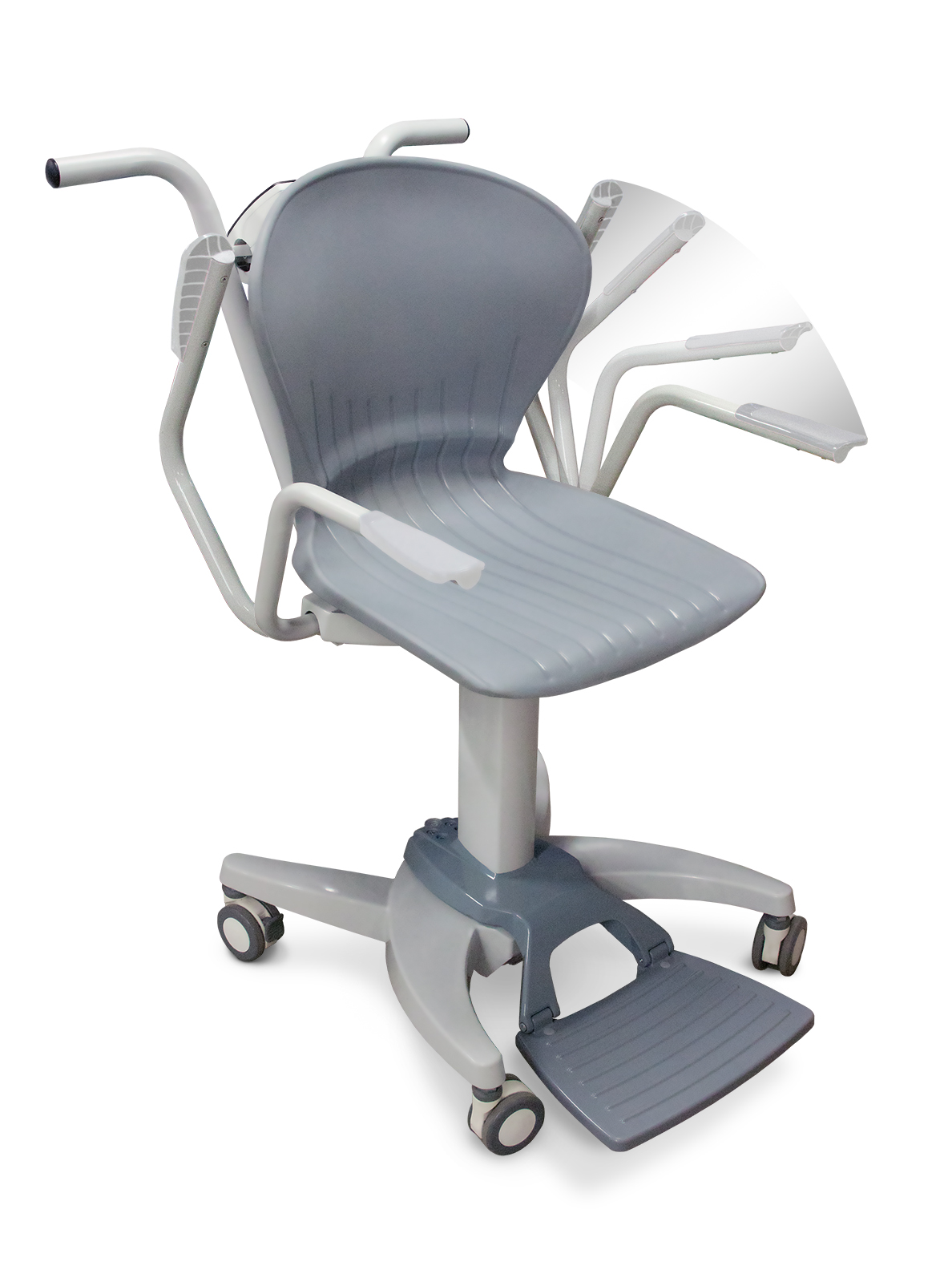

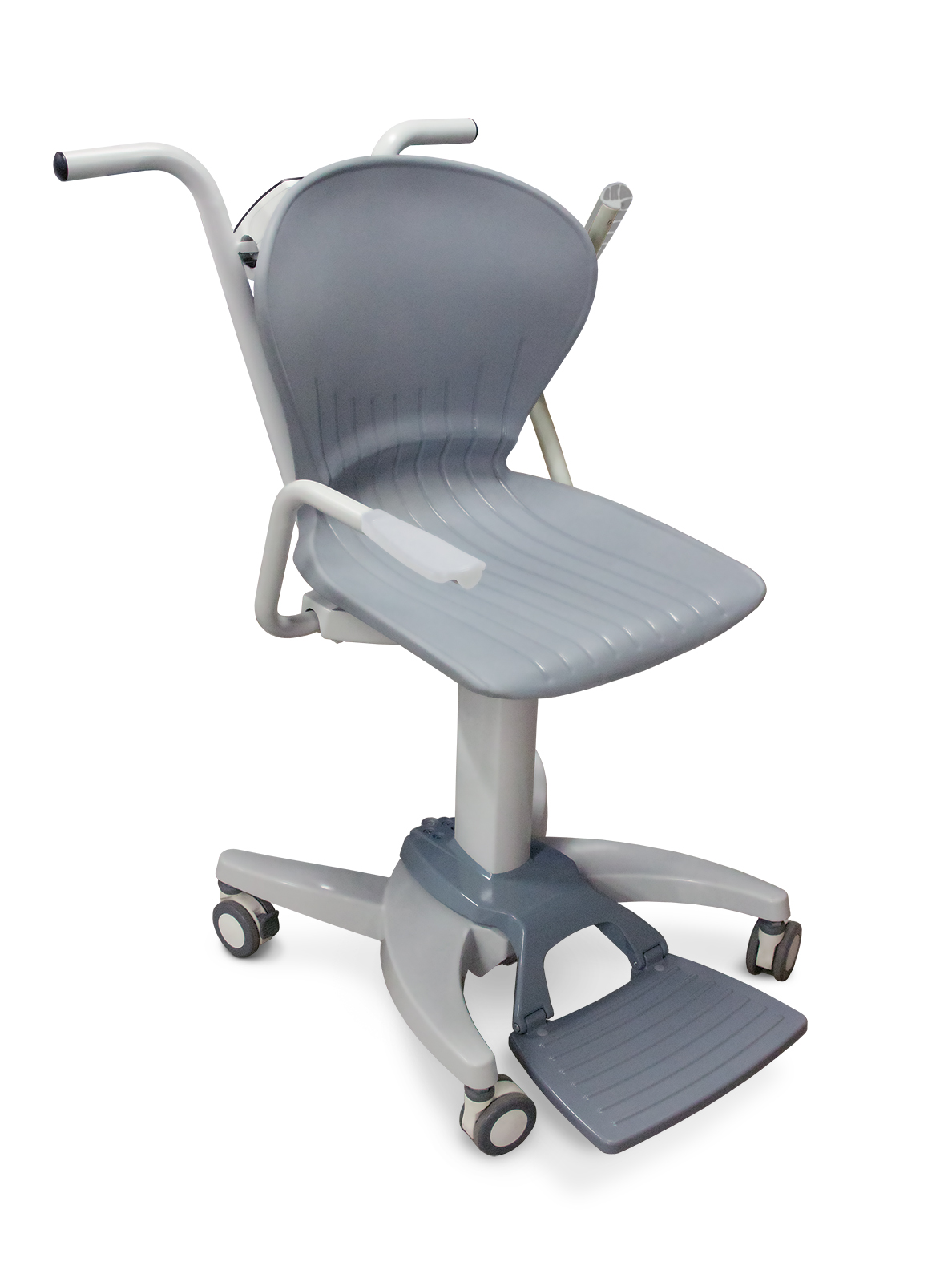

  • Swing-up arms
  • Flip-up footrest
  • Motiontrap™ movement compensation technology
  • Unit of measure toggle or locking
  • EMR capable
  • Serial and USB data communication ports
  • Bluetooth® BLE 4.0 available, part number selectable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

Request Quote
1 US 550 10 1 Digchairscale Sideview

550-10-1 Healthweigh® Digital Chair Scale

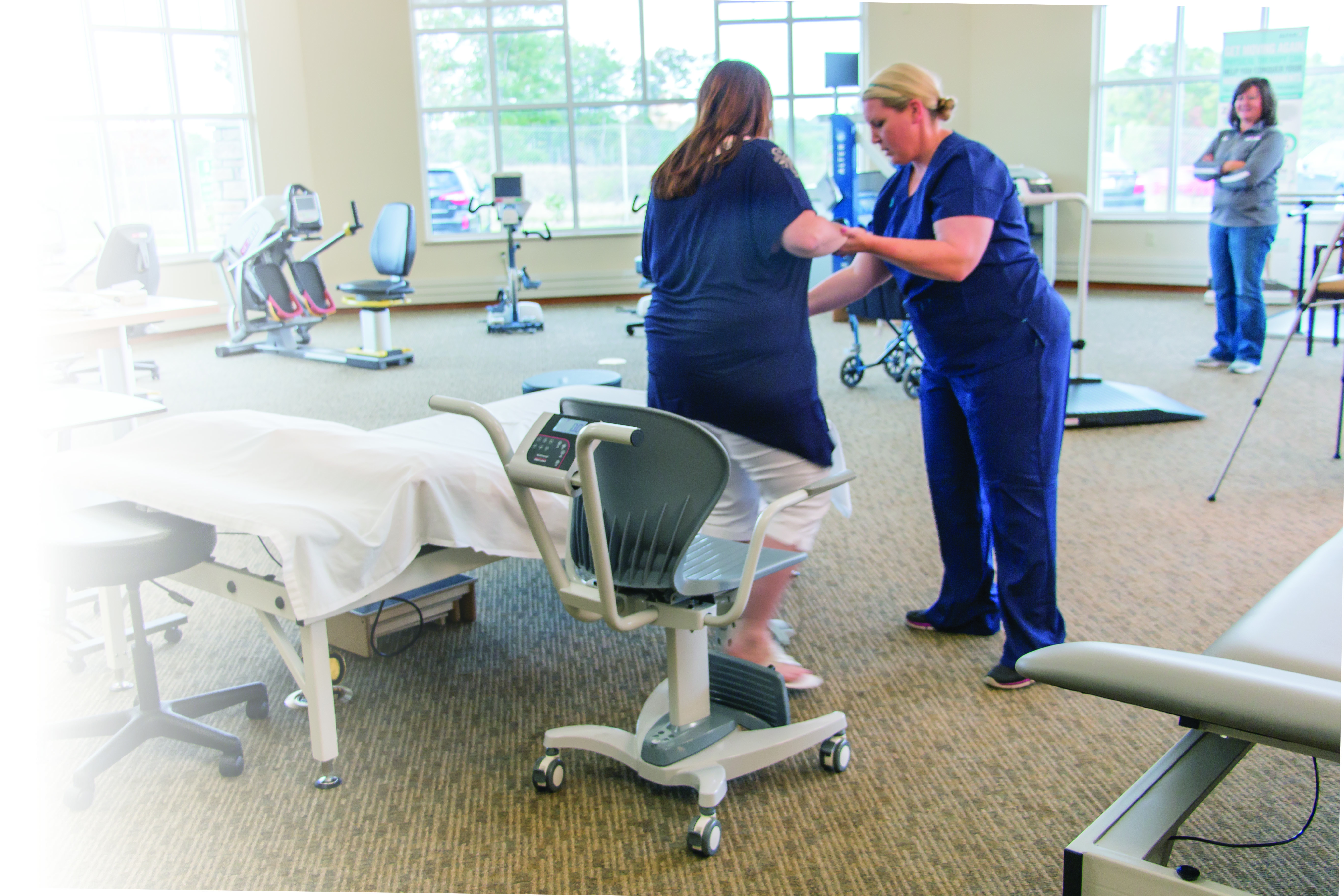

The Rice Lake Healthweigh® 550-10-1 digital chair scale is designed for patients who find it difficult to, or cannot, stand. The molded plastic seat is easy to clean, comfortable and safe up to 660 pounds. Swing-up arms enable easy access from either side, and a flip-up footrest can be used for additional patient comfort. A large push-button display lights up for easy viewing and an audible beep sounds at the end of each weigh cycle.

Capacity:
660 × 0.2 lb (300 × 0.1 kg)

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Temperature:
Operating:
50 °F to 104 °F (10 °C to 40 °C)

Warranty:
Two-year limited

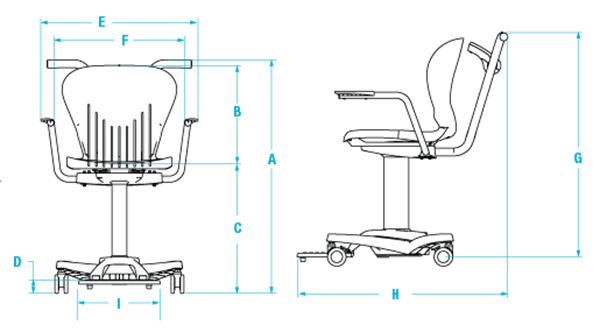

Dimensions
  Inches Centimeters
A 37.26 95.0
B 15.61 85.0
C 20.74 64.0
D 2.15 52.0
E 25.06 43.2
F 20.70 40.6
G 35.78 43.2
H 33.58 85.3
I 12.95 32.9





Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
119114 550-10-1 29 27 29 54 164 164
194740 550-10-1BLE 29 27 29 54 164 164

Resources/Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles
What is ATOL and How Does it Affect My Scale? Email Health Scales Articles

Title Download Email
550-10-1 Digital Chair Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Digital Chair Scale 550-10-1 Operation Manual H Download Email Health Scales No
Digital Chair Scale 550-10-1 Technical Manual H Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales D Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales Yes
Changing the ATOL Setting A Download Email No

Title Download Email
550-10-1 Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Digital Chair Scale 550-10-1 Request Download Email Health Scales|Chair Scales
Medical Product Guide Request Download Email Health Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Healthweigh Indicator Keypad and CPU Board Testing Download Email Health Scales
Healthweigh Indicators Load Cell Cable Connection Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales|Wheelchair Scales|Chair Scales|Pediatric Scales|Mechanical Health Scales|Home Health Scales
ScaleTalk: How to Connect the Load Cell Cable on Healthweigh Indicators View Download Email Health Scales|Load Cell Cable
Proper Patient Weighing for Rice Lake Chair Scales View Download Email Health Scales|Chair Scales
Unpacking and Assembling Rice Lake's 550-10-1 Chair Scale View Download Email Health Scales|Chair Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email Indicators / Controllers
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators View Download Email Health Scales
Measurement Solutions Throughout a Healthcare Facility View Download Email Health Scales

Title Download Email Category
550-10-1 Digital Chair Scale Warranty Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales

Parts

Part # Description List Price Cart/Quote
119114
Scale,Chair Plastic Seat 550-10-1 660lb(300kg) x 0.2lb(100g) includes 6 AA size Alkaline batteries

List Price: $1,240.00
194740
Scale,Chair Plastic Seat, 550-10-1BLE 660lb(300kg) x 0.2lb(100g) includes 6 AA size Alkaline batteries and Bluetooth BLE 4.0

List Price: $1,475.00

Options

Part # Description List Price Cart/Quote
115655 Adapter,120-240VAC/9 VDC Power supply with US wall adapter

List Price: $43.00
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $30.00
102508 Power Cord, 220VAC AC, 9VDC 500MA, Healthweigh (includes EU plug), MSDS Required

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
79074 Cable Assy, USB 2.0, Male Type A to Male Type B, Black, 6 Feet

List Price: $35.00
217091 Cable Assy,Communication DB9 Female to RJ45 Female, 4 Conductor 26 AWG, PVC Jacket

List Price: $25.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

560-10-1 Digital Chair Scale (1)

560-10-1 Digital Chair Scale

Rice Lake’s Healthweigh® 560-10-1 digital chair scale is efficiently designed for accurate and repeatable measurements for patients who find it difficult to walk or stand.

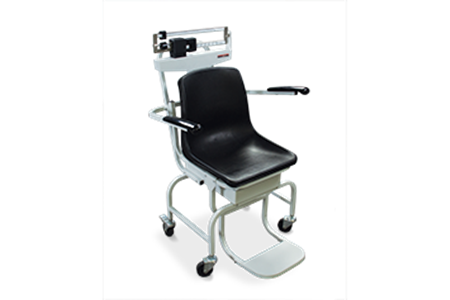

1 US Mechanicalchair Facingright
