560-10-1 Digital Chair Scale

Request Quote

  • Enameled tubular steel frame
  • Four heavy-duty caster wheels (rear wheels locking)
  • Swing-up arms

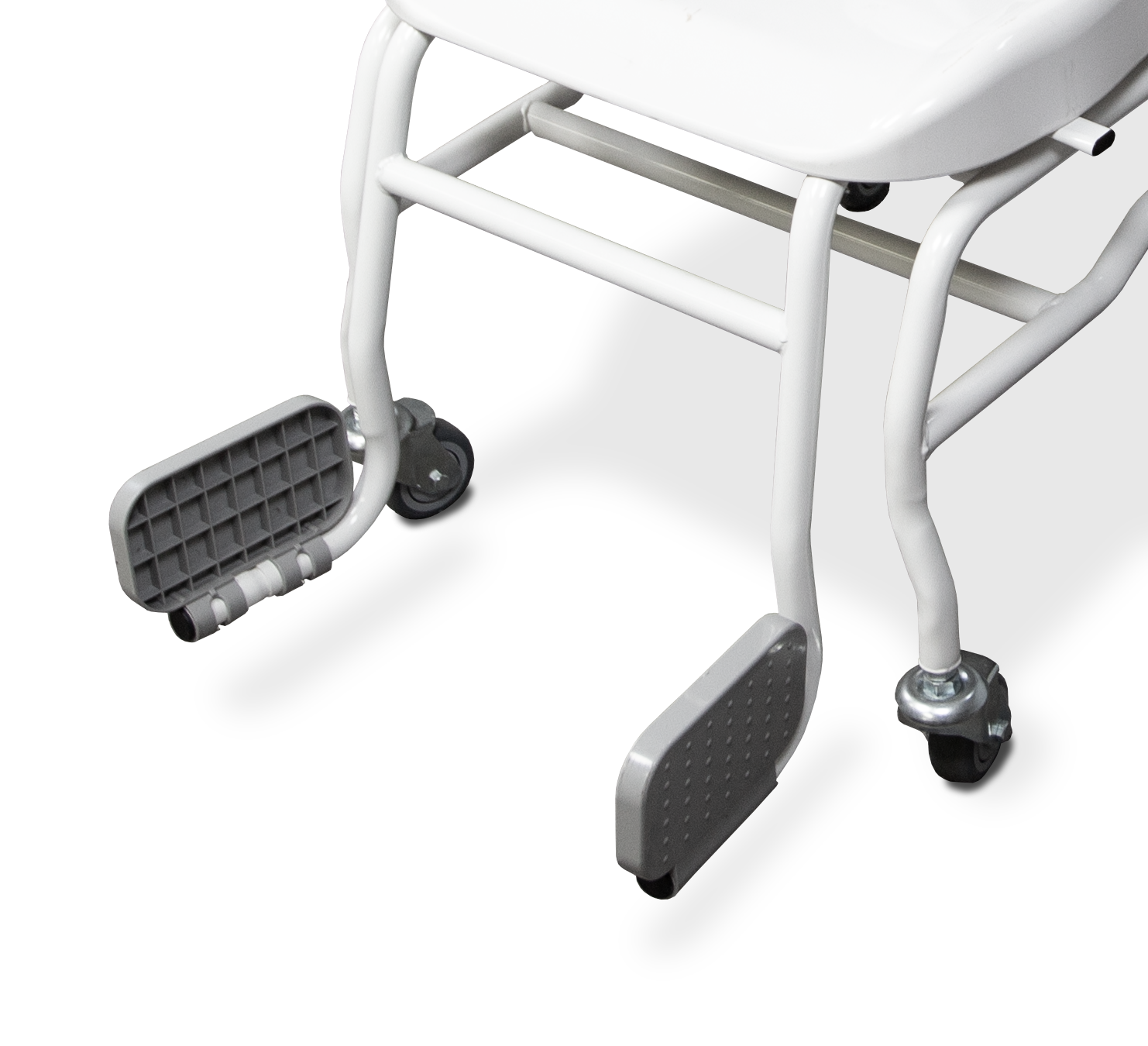

  • Side-folding footrests
  • Molded seat

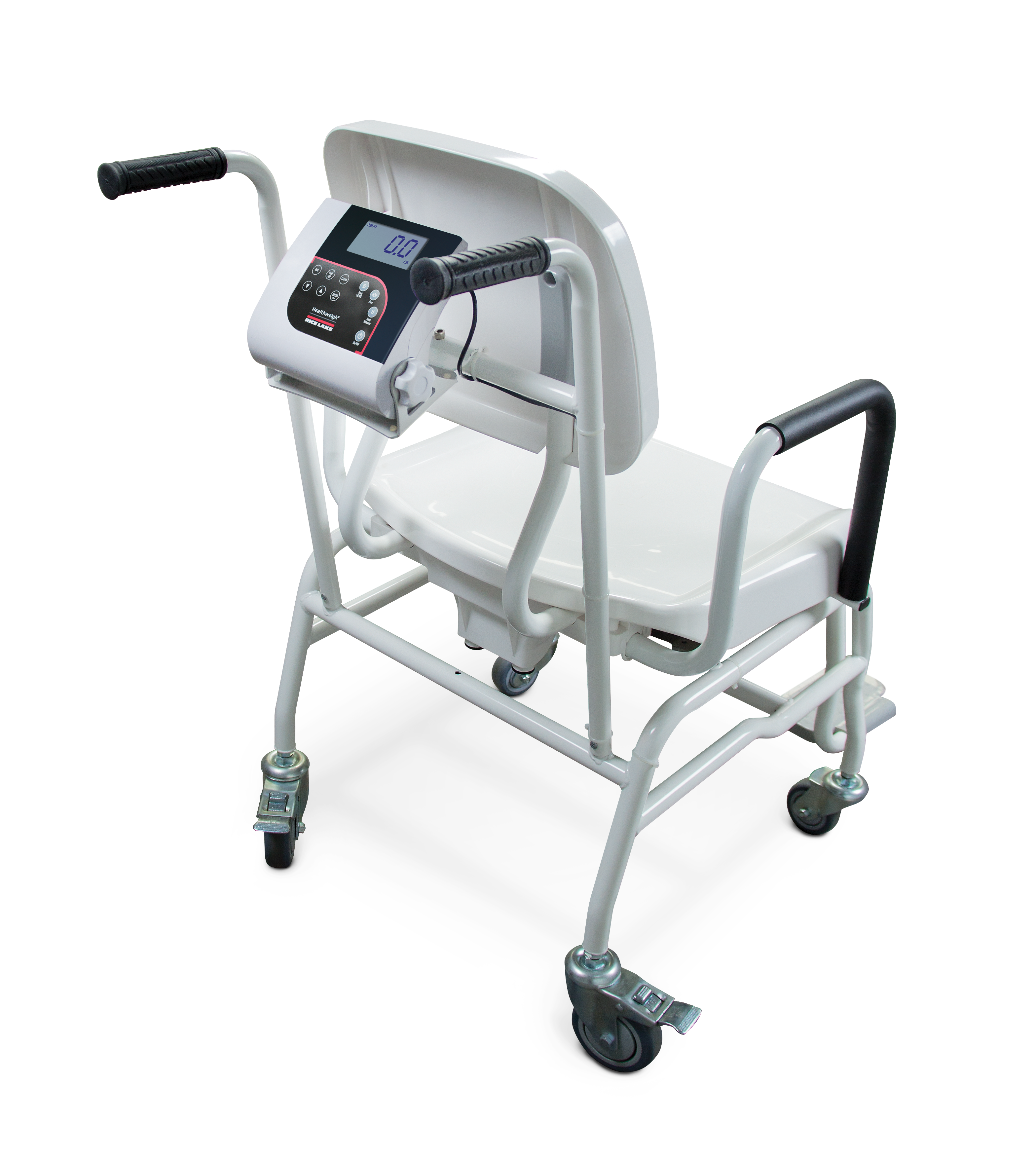

  • Large 1-inch LCD display
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EHR capable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

560-10-1 Digital Chair Scale

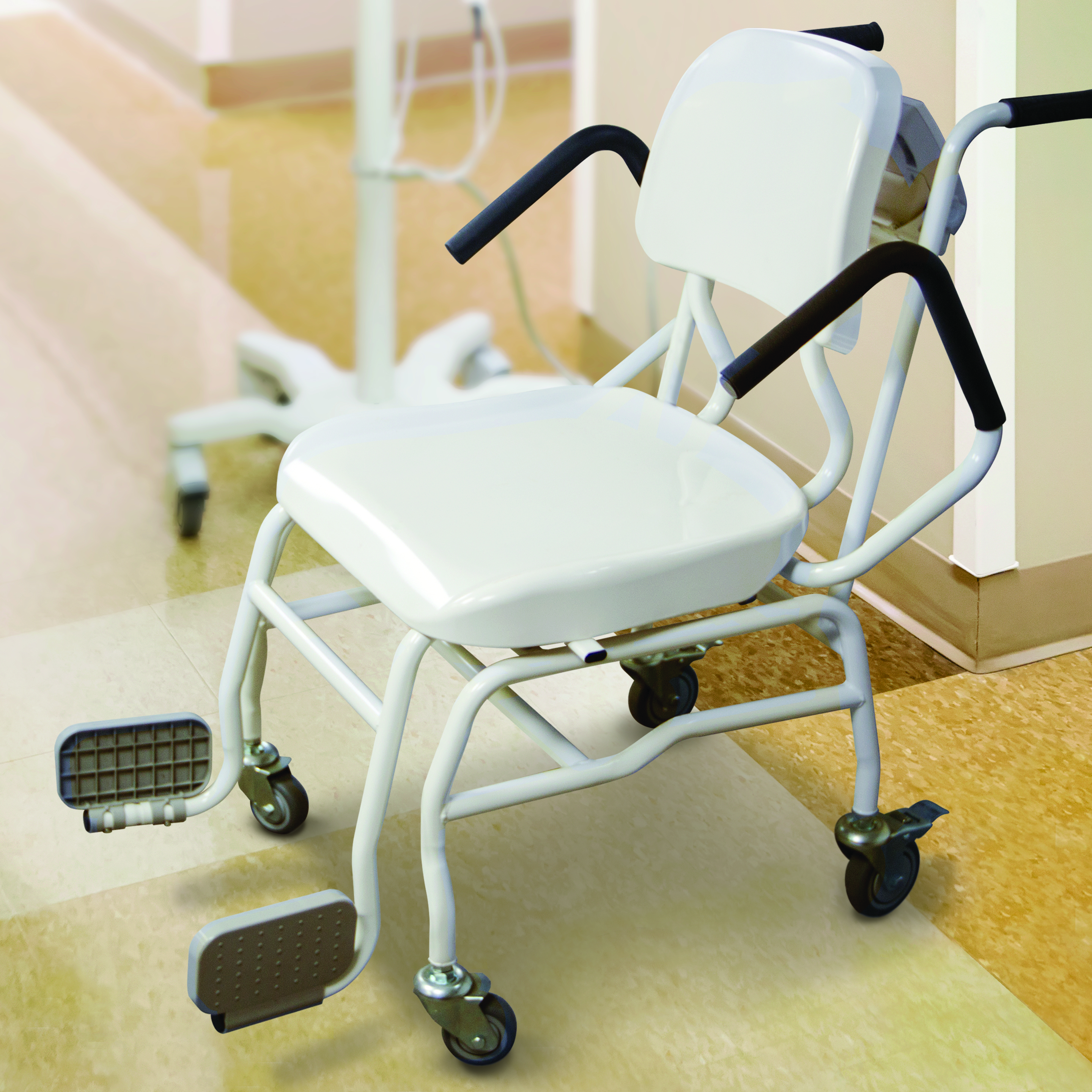

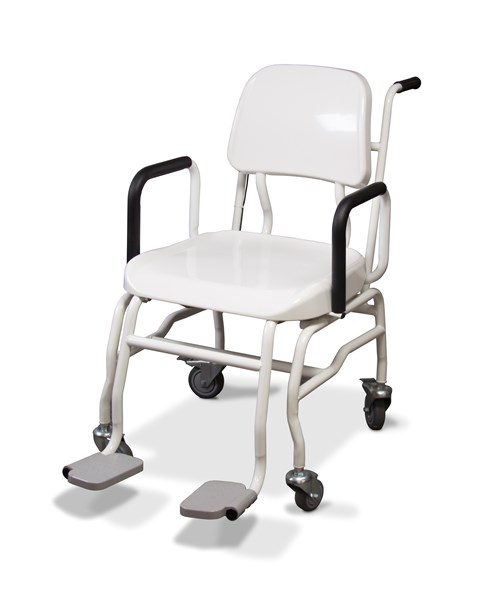

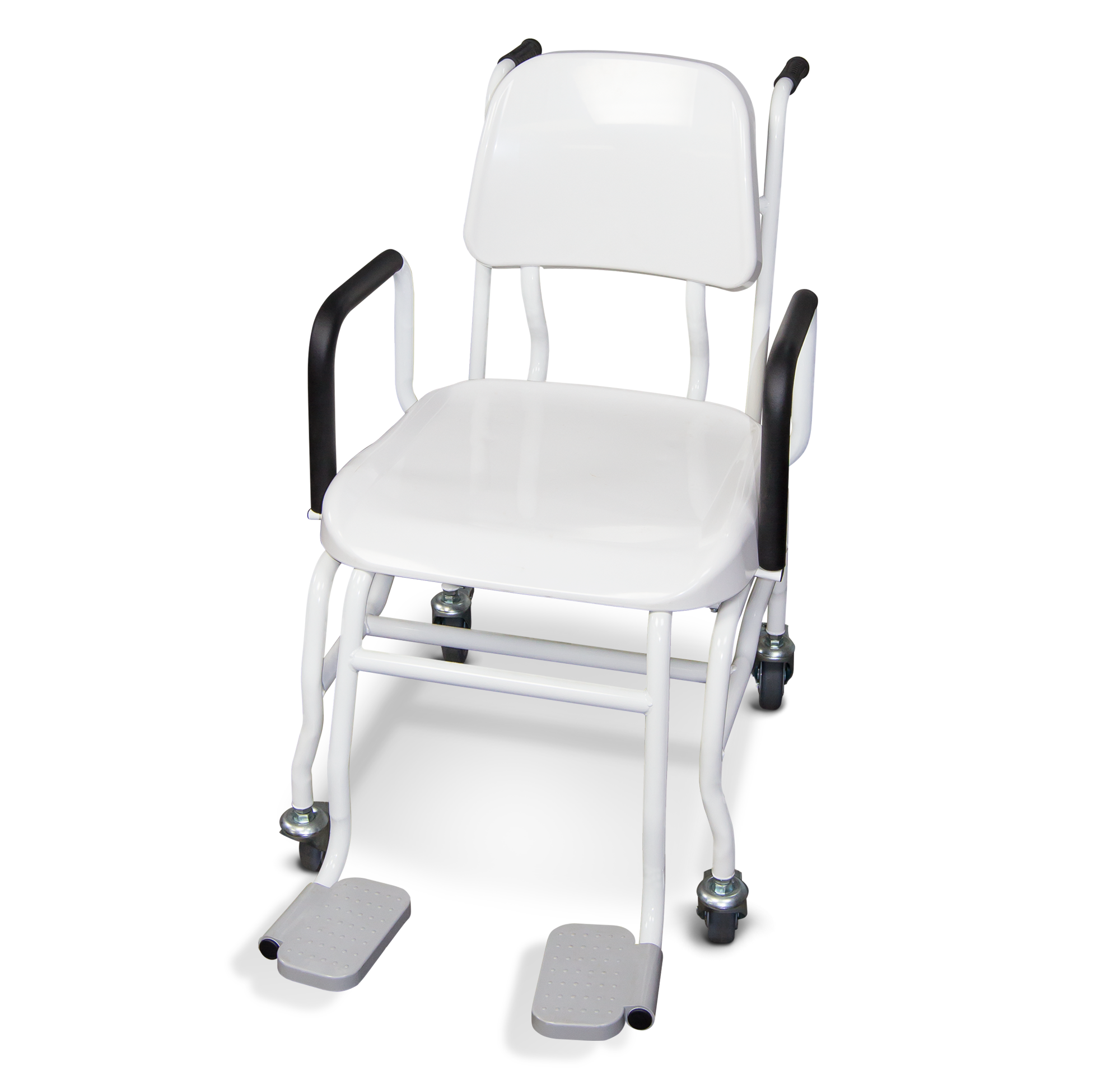

The Rice Lake 560-10-1 digital chair scale is designed for patients who find it difficult to, or cannot, stand. Two armrests and two footrests can be lifted separately for convenient patient access. The 20-inch wide molded plastic seat is easy to clean, comfortable and safe up to 660 pounds. A large push-button display lights up for easy viewing and an audible beep sounds at the end of each weigh cycle.

Capacity:
660 lb x 0.2 lb (300 kg x 0.1 kg)

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Power:
9 VDC provided by six AA alkaline batteries
(included) or 120 V/230 VAC adaptor (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Warranty:
Two-year limited warranty

Dimensions
  Inches Centimeters
A 20.1 51.1
B 17.3 44.0
C 20.1 51.1
D 36.4 92.5
E 5.9 15.0
F 42.9 109.0
G 34.6 88.0







Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
166644 560-10-1 33 23 27 65 148 148





Resources / Downloads

Title Download Email
560-10-1 Digital Chair Scale 20 Inch Wide Seat Catalog Page Download Email
560-10-1 Digital Chair Scale 17 Inch Wide Seat Catalog Page Email

Title Version Revision Download Email Category Archived
Bariatric Handrail Scale 260-10-1 Operation Manual Download Email Health Scales No
Height Rod Accessory - RL-260-10-1 Digital Handrail Scale Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales No

Title Collateral Wizard Request Download Email Category
Bariatric Handrail Scale 260-10-1 Request Download Email Health Scales|Handrail Scales
Medical Product Guide Request Download Email Health Scales

Title Version Size Release Date Download Email
Health Scales USB Driver - Titanium 10-button model 1 1.2 KB 06/17/2014 Download Email

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales

Title Download Email Category
560-10-1 Digital Chair Scale 20-inch Wide Seat Warranty Download Email

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales

Parts

Part # Description List Price Cart
166644 Scale,Chair Model 560-10-1 660lb(300kg) x 0.2lb(100g) includes ABS seat, lift away armrests, foldable footrests, 4 swivel wheels (rear lockable)

List Price: $1,175.00

Options

Part # Description List Price Cart
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved

List Price: $25.00

102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00

81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00

186830 Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45

List Price: $69.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
