680 Synergy Series Weight Indicator

  • Bright seven-digit, seven-segment LED display
  • Battery backed time and date
  • Full numeric keypad
  • Three serial ports: two RS-232, one full duplex or half duplex RS-485
  • Numeric keyed entry allowed for tare and setpoint entry
  • Formattable tickets
  • Ethernet TCP/IP
  • USB device
  • Stainless steel IP69K enclosure
  • Four onboard configurable digital I/O points, TTL logic
  • Local/Remote

Options:

  • Analog output: 16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA
  • RJ45 Ethernet connector

Note: IP Rating is IP66 with RJ45 option. Rating is valid only when the cover is in place, not in use

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW OIML Logo LOGO EU Certified NAWI ULCUS CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

The Next Generation of Configurable Indicators

Rice Lake’s configurable 680 Synergy Series indicator combines powerful features found in advanced instrumentation with easy-to-use functions of more basic indicators. Designed with the customer in mind, the 680 is suitable for real-world, industrial environments. Tackle general purpose weighing, straightforward automation and a wide range of applications with the 680 Synergy Series.

Powerful Functions Backed by Advanced Communication

With eight setpoints and four digital I/O, the 680 can perform basic batching and filling operations. Design a multi-step procedure and run it automatically from beginning to end with the 680’s configurable batch engine. Users can also customize printed tickets with formattable gross, net, setpoint and auxiliary print formats. The 680 also supports multiple onboard communication options, cutting costs and providing connection to multiple devices such as printers and computers.

Durable, IP69K Construction

Constructed with durable 304 stainless steel and able to withstand harsh wash-downs, the 680 maximizes process efficiency in virtually any environment or application. An IP69K rating ensures the 680 can stand up to high-pressure, high-temperature washdowns found in food processing environments.

Power:
Line voltages: 100-240 VAC
Frequency: 50-60 Hz

Power Consumption:
~2W (AC) with one 350 ohm load cell, 15W max

Excitation Voltage:
10 VDC (± 5 VDC), 8 x 350Ω or 16 x 700Ω load cells

Analog Signal Input Range:
-5 mV to +70 mV

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
6.25-120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O - 5V logic

Communication Ports:
Two RS-232 (three-wire)
RS-485/422 (five-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)

Status Annunciators:
Eight LED annunciators

Display:
Seven 0.8 in tall, seven-segment digits

Keys/Buttons:
Flat membrane panel, tactile feel (18 buttons plus ON/OFF)

Temperature Range:
Legal: 14° F to 104° F (-10° C to 40° C)
Industrial: 14° F to 122° F (-10° C to 50° C)

Dimensions (W X H X D):
11.58 in x 8.57 in x 4.05 in
(30 cm x 22 cm x 10 cm)

Weight:
6.25 lb (3 kg)

Rating/Material:
Rating: IP69K
IP66 with RJ45
Material: AISI 304 Stainless Steel

Warranty:
Two-year limited warranty

EMC Immunity:
10 V/m

Approvals:
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121, Class III/IIIHD, 10,000d
OIML
EU Test Certificate TC11562
UL/cUL Listed
CE Marked

Dimensions
A 10.02 in (254.5 mm) E 3.40 in (86.3 mm) I 3.80 in (96.5 mm)
B 11.58 in (294.1 mm) F 4.05 in (102.87 mm) J 4.05 in (102.87 mm)
C 6.00 in (152.4 mm) G 6.00 in (152.4 mm) K 4.74 in (120.4 mm)
D 8.57 in (217.6 mm) H 8.57 in (217.6 mm)



Resources / Downloads

Title Download Email
680 Synergy Catalog Page Download Email

Title Version Revision Download Email Category Archived
680 Synergy Plus Digital Weight Indicator Technical Manual 1 K Download Email Weight Indicators|Indicators / Controllers No
Synergy Series Single Analog Output Option Card Addendum B Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware/Options No

Title Download Email
680 Synergy Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
680 Synergy Plus Digital Weight Indicator Collateral Wizard Request Download Email Indicators / Controllers
Rice Lake Weight Indicator Product Guide Request Download Email Indicators / Controllers|Weight Indicators

Title Version Size Download Email
680 Synergy Plus Firmware 1.10.00 477.8 KB Download Email
Revolution Scale Software 3.35 214.5 MB Download Email

Title View Email Category
680 Synergy Plus Digital Weight Indicator Real Time Clock Fix Download Email Indicators / Controllers|Weight Indicators

Title View Download Email Category
ScaleTalk: Configuring a Static IP Address on the 680 Synergy Plus Weight Indicator View Download Email Indicators / Controllers
ScaleTalk: Configuring Sensing on the 680 Synergy Plus View Download Email Indicators / Controllers
ScaleTalk: Defaulting the 680 View Download Email Indicators / Controllers
ScaleTalk: Setting Capacity on the 680 View Download Email Indicators / Controllers
680: Checking Firmware Version (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Configuring a Static IP Address (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Configuring Capacity and Resolution (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Defaulting the Indicator (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Enabling Streaming (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Performing a Two-point Calibration (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Setting the Date (Interactive) View Email Weight Indicators|Indicators / Controllers
680: Updating Firmware View Email Weight Indicators|Indicators / Controllers

Parts

115-230 VAC

Part # Description List Price Cart
193152 Indicator,680 Plus Universal LED Display, 115-230VAC Power Supply, US Power Cord

List Price: $885.00

193153 Indicator,680 Plus Universal LED Display, 115-230VAC Power Supply, Europe Power Cord

List Price: $885.00

196326 Indicator,680 Plus Universal LED Display, 115-230VAC Power Supply, UK Power Cord

List Price: $885.00

196327 Indicator,680 Plus Universal LED Display, 115-230VAC Power Supply, AUS Power Cord

List Price: $885.00

9-36 VDC (Not UL approved)

With Analog Output Card

With External RJ45 Connector (IP rating is IP66 with RJ-45 option)

Options

Part # Description List Price Cart
195084 Ind Opt,Analog Output 680 Series, Install Kit

List Price: $345.00

151099 Panel,Mount Option 480/680 Indicator,Gasketed Non-NEMA Seal.

List Price: $175.00

195684 Board ASSY,Replacement 680 CPU with battery installed.

List Price: $445.00

194477 Parts Kit,680 Indicator

List Price: $30.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

1 US Roughdeck 680

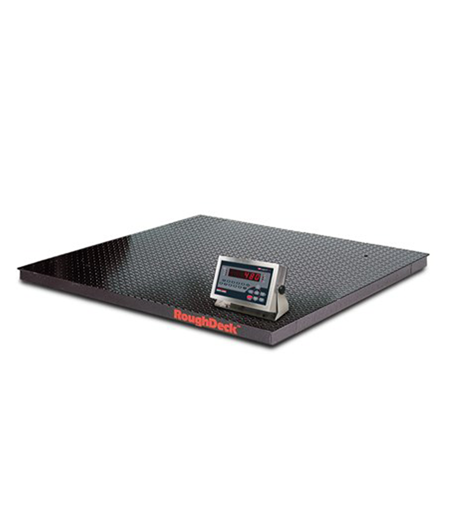

RoughDeck® Rough-n-Ready System Floor Scale and 680 Plus Indicator
