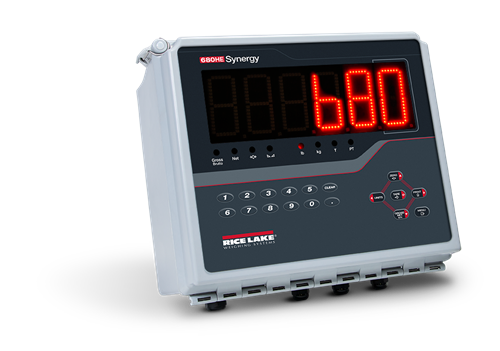

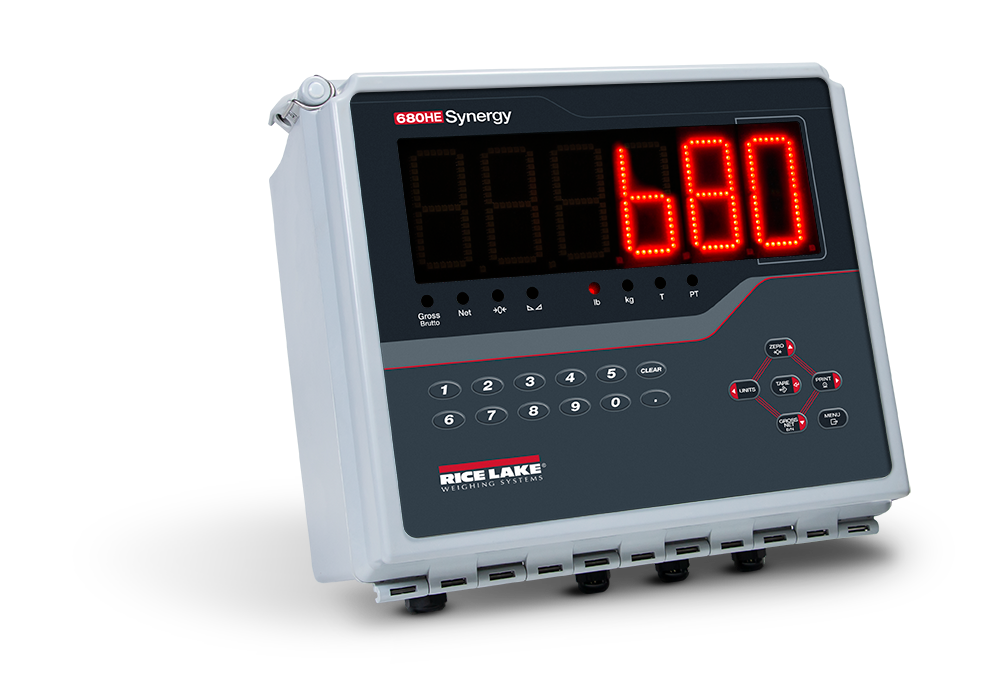

680HE Synergy Series Hostile Environment Digital Weight Indicator

Power:
Line voltages: 100 to 240 VAC
Frequency: 50/60 Hz

Power Consumption:
12W (AC) with one 350 ohm load cell, 30W max

Excitation Voltage:
10 VDC (± 5 VDC)

Analog Signal Input Range:
-0.5 mV/V to +7 mV/V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 100,000

System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O-5V logic

Communication Ports:
Two full-duplex RS-232
RS-485/422 (five-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)

Annunciators:
Eight LED annunciators

Display:
Six 2.5 in tall, seven-segment digits

Keys/Buttons:
Flat membrane panel, tactile feel
(18 buttons)

Dimensions:
(L × W × H)
12.50 × 6.30 × 10.50 in
(318 × 160 × 267 mm)

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
IP66, FRP

Weight:
7.9 lb (3.5 kg)

Warranty:
Two-year limited

EMC Immunity:
10 V/m

Approvals:
NTEP 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C
CE Marked
cULus Listed
