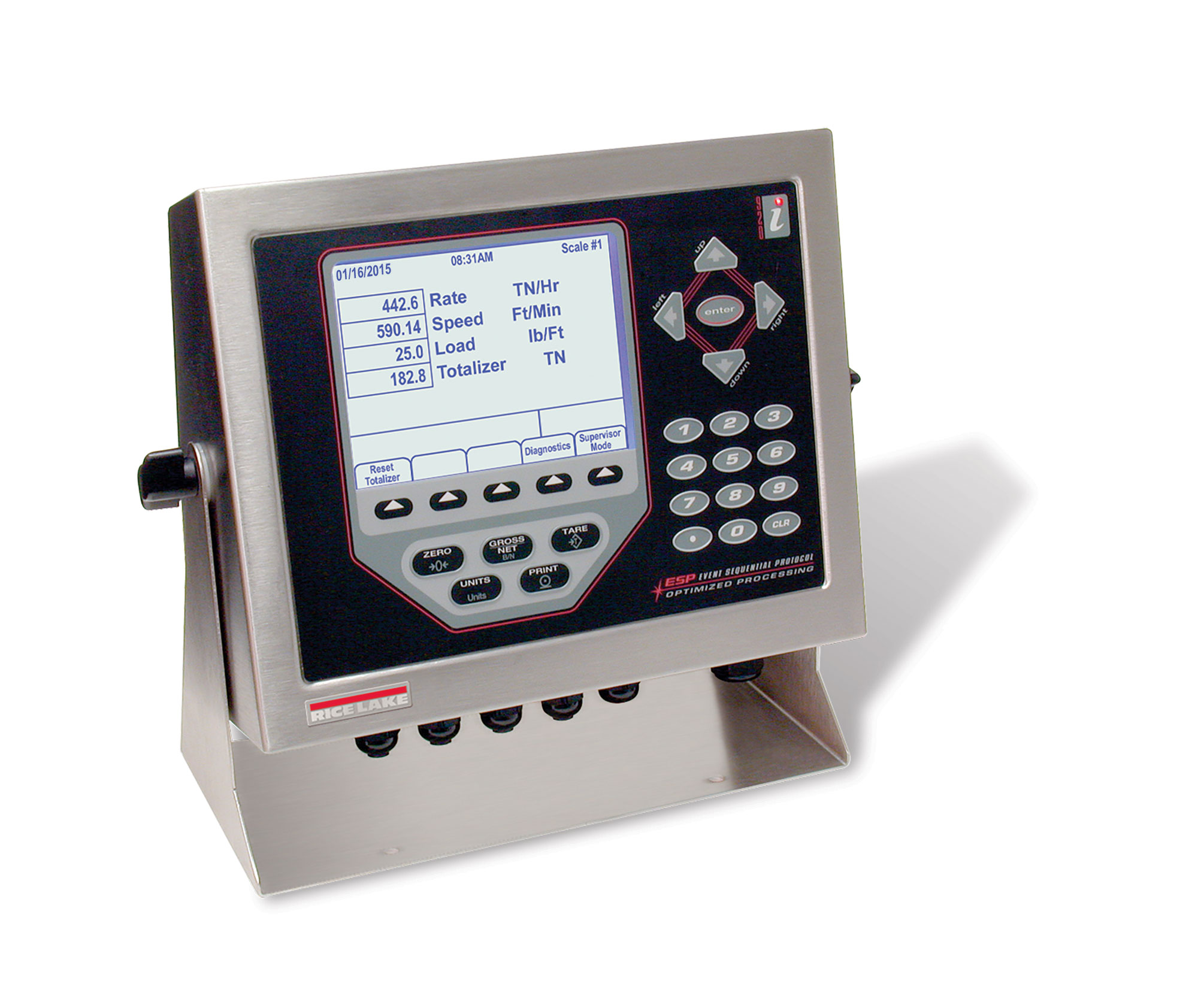

920i® Belt Scale Integrator

  • Large (W × H) 4.6 × 3.4 in, 320 × 240 pixel backlit LCD graphical display
  • NEMA Type 4X/IP66 stainless steel display enclosure
  • Four bidirectional communication ports
  • Rate and speed time displayed by the hour, minute or second
  • Measurement displayed in feet or meters
  • Unit of rate displayed in tons, pounds, kilograms, metric tons or long tons
  • Digital I/O for totalizer
  • Optional analog and alarm outputs
  • For added security, integrator has the ability to be password protected
  • Optional communication protocol cards include ControlNet, Rockwell Automation’s DeviceNet, Rockwell
  • Automation’s Remote I/O, Rockwell Automation’s EtherNet IP, Profibus DP, 0 to 10 VAC or 4 to 20 mA analog output, Ethernet TCP/IP
  • Standard communication RS-232, RS-485, 20 mA current loop
  • Built-in support for ticket printing

Approvals

Some approval documents are available to view by clicking the icons below.

ULCUS CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Line Voltages:
115 or 230 VAC,
Frequency: 50 or 60 Hz

Power Consumption:
340 mA, maximum at 115 VAC (26 W)
240 mA at 230 VAC (26 W)

Excitation Voltage:
10 ± VDC, 16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-10 mV to +45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz
1.0 μV/graduation typical at 120 Hz
4.0 μV/graduation typical at 960 Hz

A/D sample rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal Resolution: 8 million counts/8,000,000

System Linearity:
± 0.01% full scale

Digital I/O:
Six I/O channels on CPU board; optional 24-channel I/O expansion boards available

Circuit Protection:
RFI, EMI, ESD protection

Serial Ports:
Four ports on CPU board support up to 115,200 bps; optional dual-channel serial expansion boards available
Port 1: Full duplex RS-232
Port 2: RS-232 with CTS/RTS; PS/2 keyboard interface via DB-9 connector
Port 3: Full duplex RS-232, 20 mA output
Port 4: Full duplex RS-232, 2-wire RS-485, 20 mA output

Display:
(W × H)
4.6 × 3.4 in
(116 × 86 mm)
320 × 240 pixel VGA liquid crystal display (LCD) module with adjustable contrast

Keyboard:
27-key membrane panel, tactile feel, PS/2 port for external keyboard connection

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to +40 °C)
Operating:14 °F to 122 °F (-10 °C to +50 °C)

Dimensions:
Universal: (W × H ×x D)
10.6 × 10.9 × 4.6 in
(268 × 276 × 117 mm)
Deep Universal: (W x H x D)
10.8 × 10.9 × 5.4 in
(273 × 276 × 136 mm)

Weight:
Panel Mount Enclosure: 8.5 lb (3.9 kg)
Deep Universal: 11 lb (5.0 kg)

Rating/Material:
NEMA Type 4X/IP66, stainless steel

Warranty:
Integrator and Load Cells Two-year limited

Approvals:
CE Marked
UL and C-UL listed (universal, deep and wall mount enclosure)
Custom wall mount approved for 508A (optional)
Panel mount UL recognized
