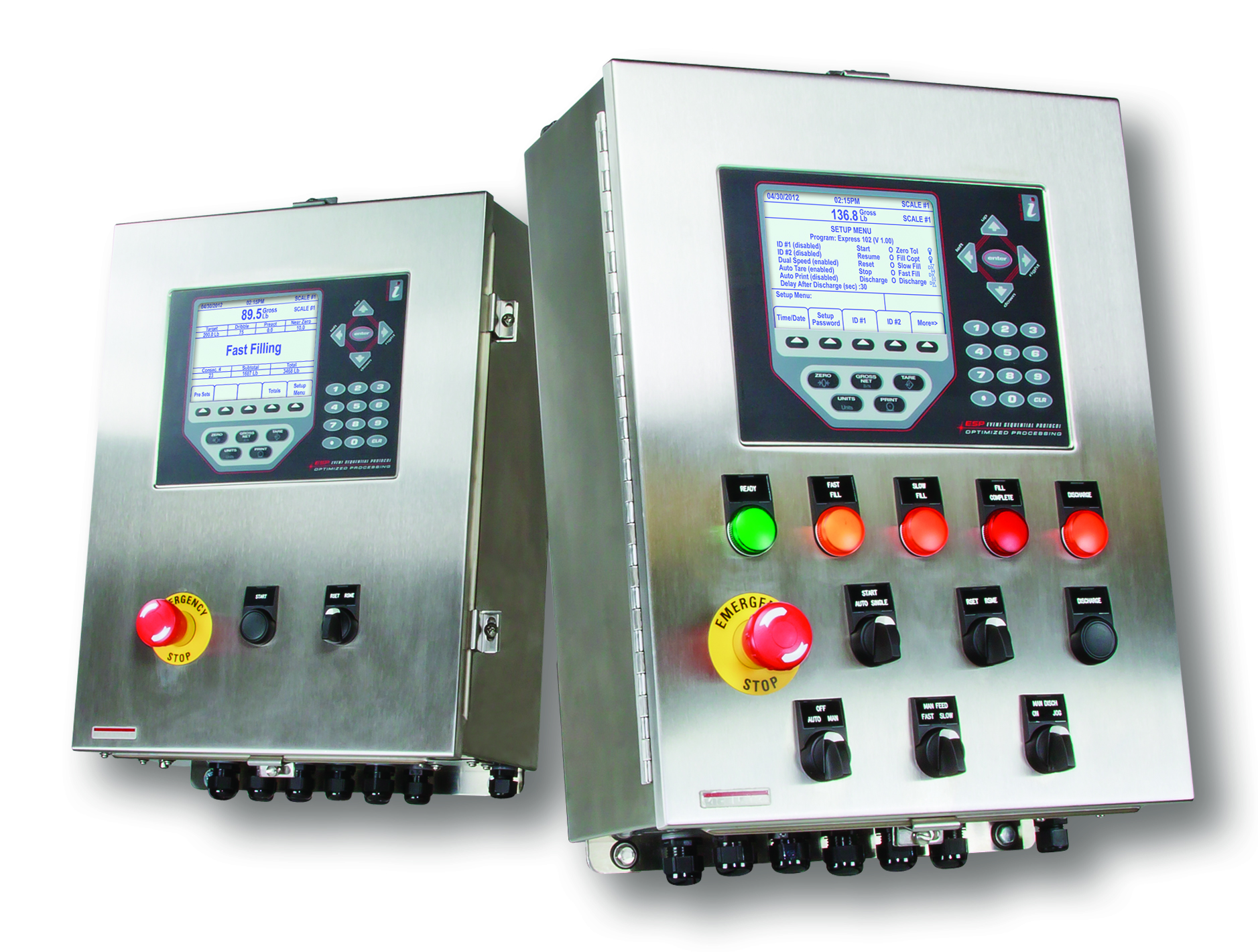

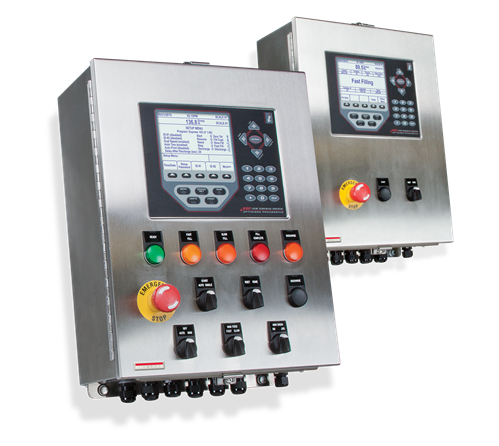

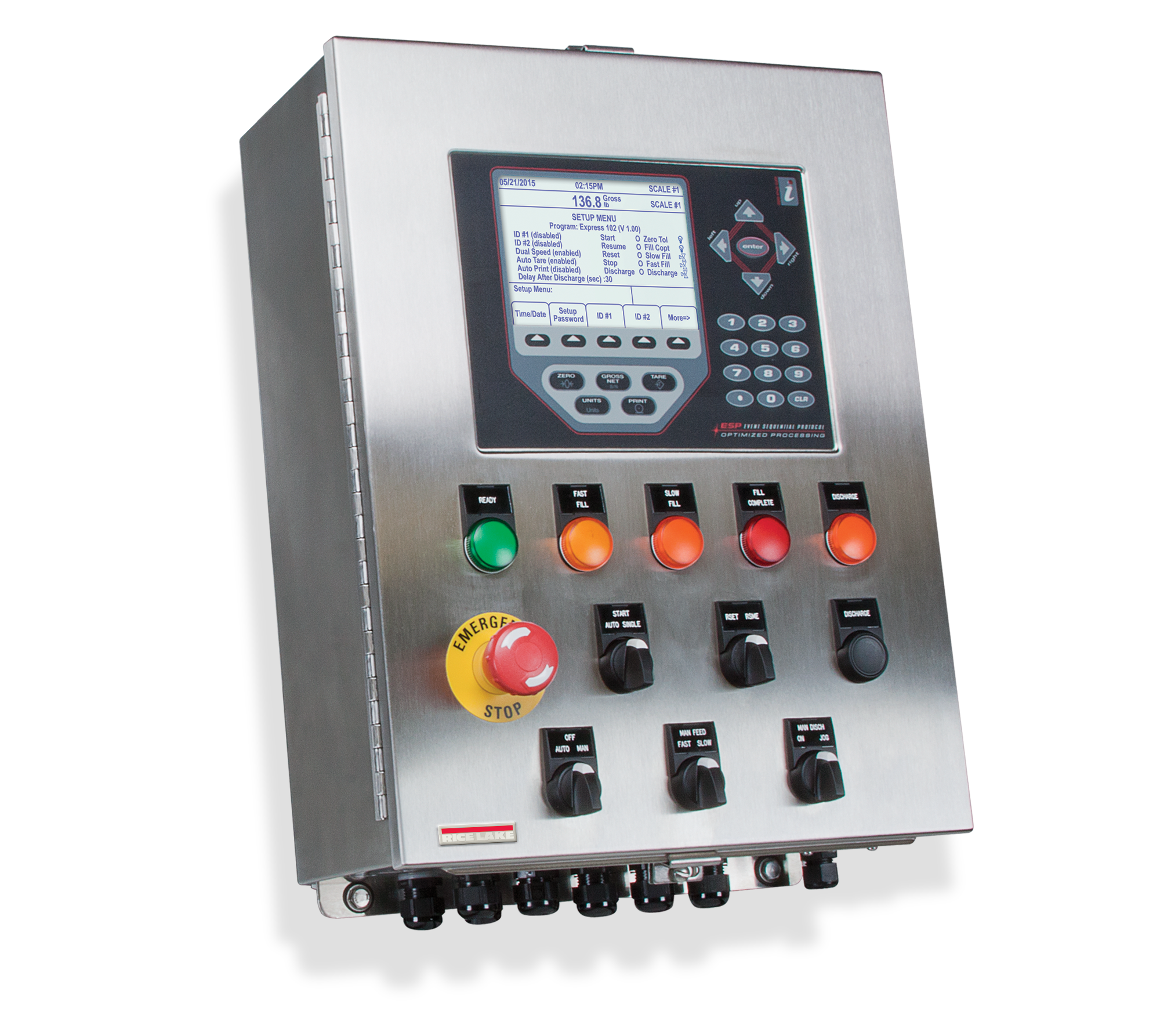

920i® FlexWeigh Systems Bulkweighers
- Wall mount stainless steel enclosure
- Application program 107, 108, 109
- Front panel switches E-Stop, Start/Resume, End Cycle, Ship/Recv (only 109)
- Softkeys for presets, ID1 and ID2
- Accumulating weight streaming
- Fill and discharge sequence controls
- Fill and discharge gate monitoring
- Printer online checking
- Weigh and surge hopper overfill monitoring
- Transmitted audit trail
- Digital I/O board
- Relay rack and SSR relay outputs
Options
- Pilot lights for error indication
- Manual override switches
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
107 Shipping Bulkweigher
- The 920i FlexWeigh 107 is designed for basic shipping mode in bulkweighing applications. In shipping mode, a scale is loaded and discharged repetitively until the accumulated weight meets the overall target value.
108 Receiving Bulkweigher
- The 920i FlexWeigh 108 is designed for basic receiving mode in bulkweighing applications. In receiving mode, a scale is loaded and discharged until there is no more product to receive. To end the cycle, the End Cycle button is pressed.
109 Ship/Receive Bulkweigher
- The 920i FlexWeigh 109 allows the user to select which mode of operation to use. This is done with a three position locking key switch.
111 Flip Flop Filler
- The 920i FlexWeigh 111 is designed for filling two scales to a target weight in sequential "flip-flop" fashion. As one scale is filled, operators can prep the second scale, e.g., moving a container into place.
112 Flip Flop Filler with Discharge
- The 920i FlexWeigh 112 is designed for filling two scales to a target weight in sequential "flip-flop" fashion. As on scale is filled, the second scale is discharged via independent or manual methods.
920i Flexweigh Bulkweighers - Standard Switches/Outputs
| Standard Switches | 107 | 108 | 109 |
|---|---|---|---|
| E-Stop mushroom | X | X | X |
| Start/Resume | X | X | X |
| End Cycle | X | X | X |
| Ship/Recv | - | - | X |
| Standard Inputs | 107 | 108 | 109 |
|---|---|---|---|
| Fill gate closed | X | X | X |
| Discharge gate closed | X | X | X |
| Surge hopper not full | X | X | X |
| Weigh hopper not full | X | X | X |
| Printer online | X | X | X |
| Standard Outputs | 107 | 108 | 109 |
|---|---|---|---|
| Slow cycle alarm | OPT | OPT | OPT |
| Gate alarm | OPT | OPT | OPT |
| Scale over fill alarm | OPT | OPT | OPT |
| Low surge alarm | OPT | OPT | OPT |
| Printer alarm | OPT | OPT | OPT |
| Open fill gate | X | X | X |
| Open discharge gate | X | X | X |
920i Flexweigh Bulkweighers - Optional Switches
| Optional Switches | Type | 107 | 108 | 109 |
|---|---|---|---|---|
| Manual/Off/Auto | 3 position key selector | X | X | X |
| Man Fill On/-/Jog | Maintained/Off/Spring Return | - | X | X |
| Man Disch On/-/Jog | Maintained/Off/Spring Return | - | X | X |
| Discharge | - | X | - | - |
Resources/Downloads
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| 920i FlexWeigh Systems 107, 108, 109 Bulkweigher Operating Instructions | 1 | G | Download |  Email |
Indicators / Controllers|Automated Systems | No |
| FlexWeigh Systems 111 and 112 Flip Flop Fillers Operation Manual | B | Download | Email |
Indicators / Controllers|Automated Systems | No |
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 207906 | Indicator,920i Flexweigh Systems 107, Stainless Steel Wallmount, 115/230VAC |
List Price: $6,795.00 |
|
| 207907 | Indicator,920i Flexweigh Systems 108, Stainless Steel Wallmount, 115/230VAC |
List Price: $6,795.00 |
|
| 207908 | Indicator,920i Flexweigh Systems 109, Stainless Steel Wallmount, 115/230VAC |
List Price: $7,145.00 |
|
| 207909 | Indicator,920i Flexweigh Systems 111, Stainless Steel Wallmount, 115/230VAC |
List Price: $6,445.00 |
|
| 207910 | Indicator,920i Flexweigh Systems 112, Stainless Steel Wallmount, 115/230VAC |
List Price: $6,845.00 |
Options
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 151848 | LIT,Manual 920i Bulkweigh Flexweigh 107-108-109 Bulkweigher Operation Manual |
List Price: $25.00 |
