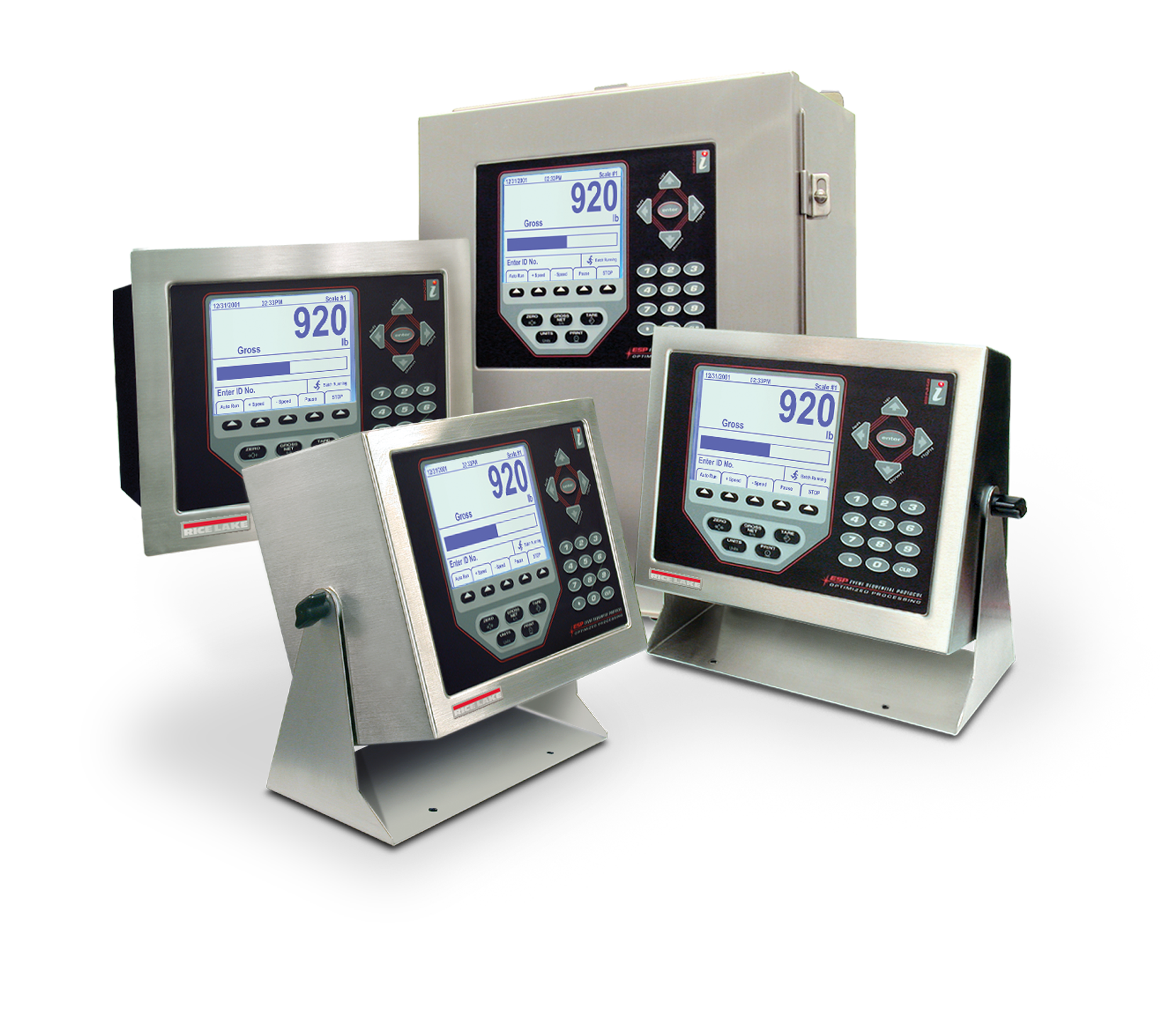

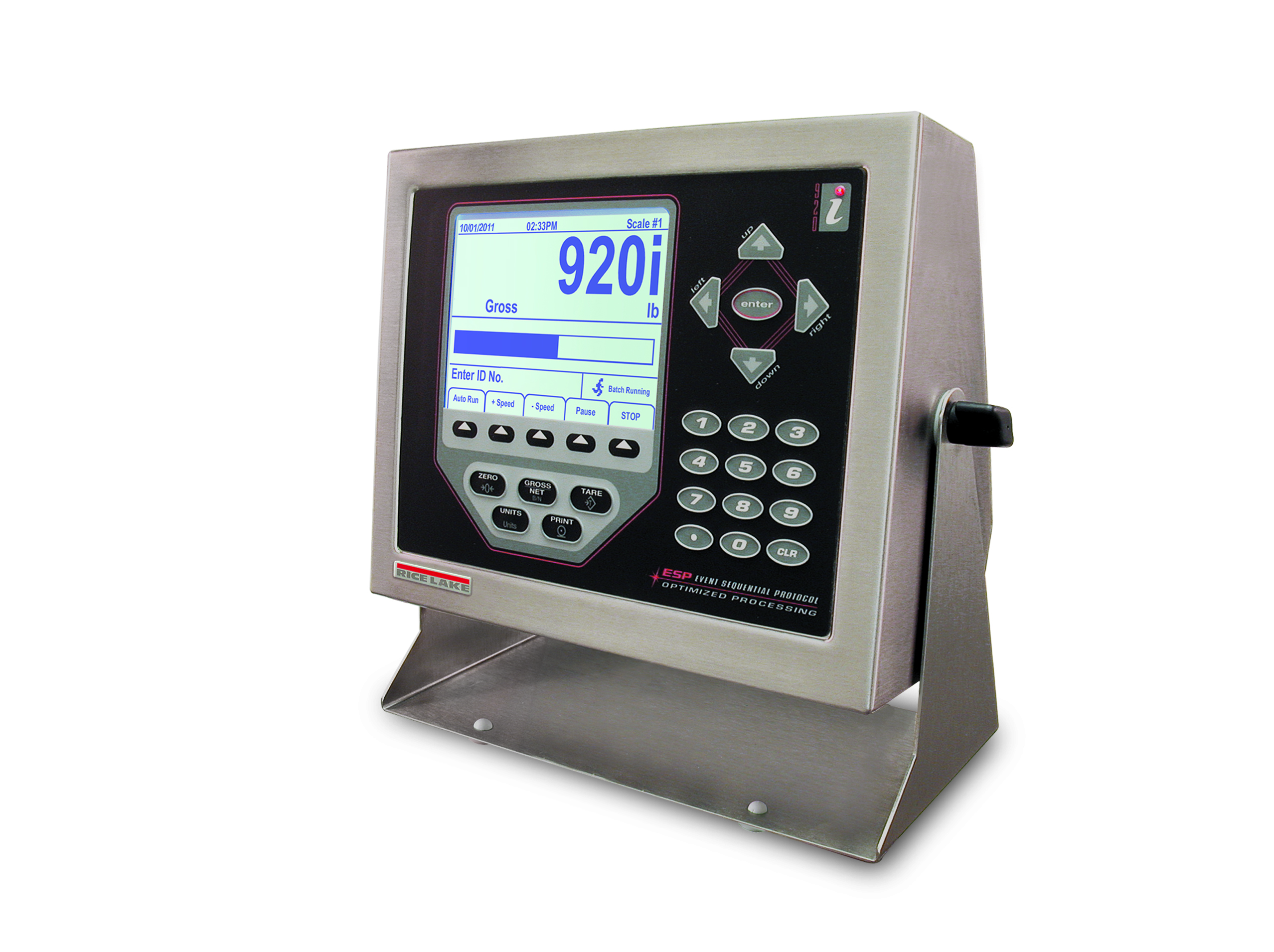

920i® Series Programmable Weight Indicator and Controller

  • Customizable back-lit LCD graphical user interface
  • 22 softkeys with 10 user-defined keys
  • Tactile keypad for scale operations, numeric entry and navigation
  • On-screen keyboard available during entry mode (or external keyboard)
  • Supports twenty-eight scales within five different kinds:
    • Analog load cell, multi-range/interval weighing
    • Total scale summing
    • Serial input scales
    • iQUBE² scales
    • Program scales
  • Two to fourteen option slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs, and protocol interfaces
  • iRite™ Programming Software
  • Customizable user applications with event-based functions
  • 150 built-in functions for application processes & data tables
  • Four serial ports supporting RS-232, RS-485, 20mA
  • USB Type A and B replaces Serial on Port 2 (USB model)
  • Alibi memory captures serial port transmissions
  • Configurable data stream format
  • 100 setpoints, 27 configurable setpoint types
  • Six digital I/O for control
  • Three different enclosure types: universal with tilt stand, panel mount and wall mount

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Rohs UL List Recog OIML Logo ULCUS LOGO Measurementcanada Approved BW CE Mark LOGO NOM

WARNING: Cancer and Reproductive Harm California Proposition 65

Flexibility. Power. Simplicity. It's all in the box.

The 920i® weight indicator and process controller blends revolutionary user interfaces, total flexibility and processing performance with the simplicity of a basic weight indicator. A crisp, highly customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a virtually indestructible enclosure to create one of the industry’s most trusted weight indicators and process controllers.

Adding an entirely new dimension in flexibility for solution providers and users alike, the 920i indicator/controller brings simplified customization at a fraction of the cost of traditional process instrumentation. From tailored basic weighing to complex process automation, the 920i gives you features, programmability and power for your process.

Power:
AC voltages: 100-240 VAC
Frequency: 50-60 Hz
DC voltages: 12-24 VDC
Consumption:
AC: 25W (universal) or 65W (others)
DC: 25W for all models

Excitation Voltage:
10 ± VDC
16 x 350Ω or
32 x 700Ω load cells per A/D card

Analog Signal Input Range:
-45 mV to +45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000
Display: 1,000,000

System Linearity:
± 0.01% full scale

Digital I/O:
Six I/O channels on CPU board;

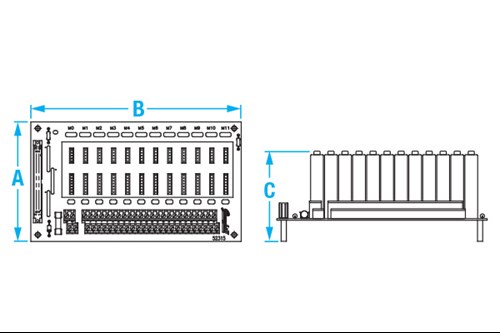

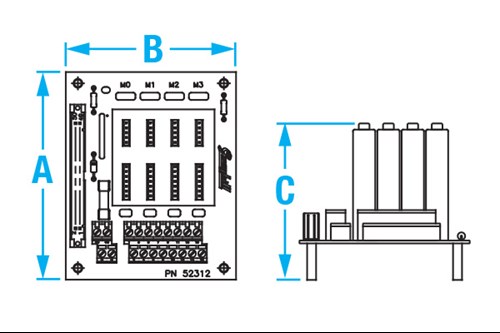

Optional 24-channel I/O expansion boards

Communication Ports:
Four ports on CPU board support up to 115,200bps
Port 1: Full duplex RS-232
Port 2: RS-232 with CTS/RTS; PS/2 keyboard
interface or USB type A and B connectors
Port 3: Full duplex RS-232, 20mA
Port 4: Full duplex RS-232, 2-wire RS-485, 20mA
Optional dual-channel serial expansion boards
Channel A: RS-232, RS-485, 20 mA
Channel B: RS-232, 20 mA

Display:
(W x H) 4.6 in x 3.4 in (116 mm x 86 mm),
320 x 240 pixel
LCD module with adjustable contrast.
Transmissive display
Transflective display (optional)

Keys/Buttons:
27-key membrane panel, tactile feel,
PS/2 or USB port for external keyboard connection

Temperature Range:
Certified: 14°F to 104°F (-10°C to +40˚C)
Operating: 14°F to 122°F (-10°C to +50˚C)

Weight:
Universal enclosure: 9.5 lb (4.3 kg)
Wall mount enclosure: 23.0 lb (10.4 kg)
Panel mount enclosure: 8.5 lb (3.9 kg)
Deep universal: 11 lb (5.0 kg)

Rating/Material:
NEMA Type 4X, Type 12, IP66, stainless steel

Warranty:
Two-year limited warranty

EMC Immunity:
EN 50082 Part 2
IEC EN 61000-4-2, 3, 4, 5, 6, 8, 11

Approvals:
NTEP CC 01-088, Class III/IIIL 10,000d
Measurement Canada AM-5426,
Class III/III HD 10,000d
OIML approved 6,000/10,000, TC11584
UL/cUL Listed (universal, deep and wall mount)
UL/cUL Recognized (panel mount)
UL/cUL Listed 508A (custom wall mount)
CE Marked

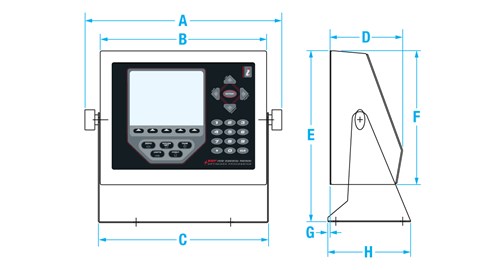

920i Universal Dimensions
A 12.50 in (318 mm) D 4.61 in (117 mm) G 0.14 in (3.5 mm)
B 10.56 in (268 mm) E 10.87 in (276 mm) H 5.25 in (206 mm)
C 10.90 in (277 mm) F 8.50 in (216 mm)





920i Deep Universal Dimensions
A 12.50 in (318 mm) D 5.36 in (216 mm) F 8.50 in (216 mm)
B 10.76 in (273 mm) E 10.87 in (276 mm) G 5.88 in (149 mm)
C 10.90 in (277 mm)

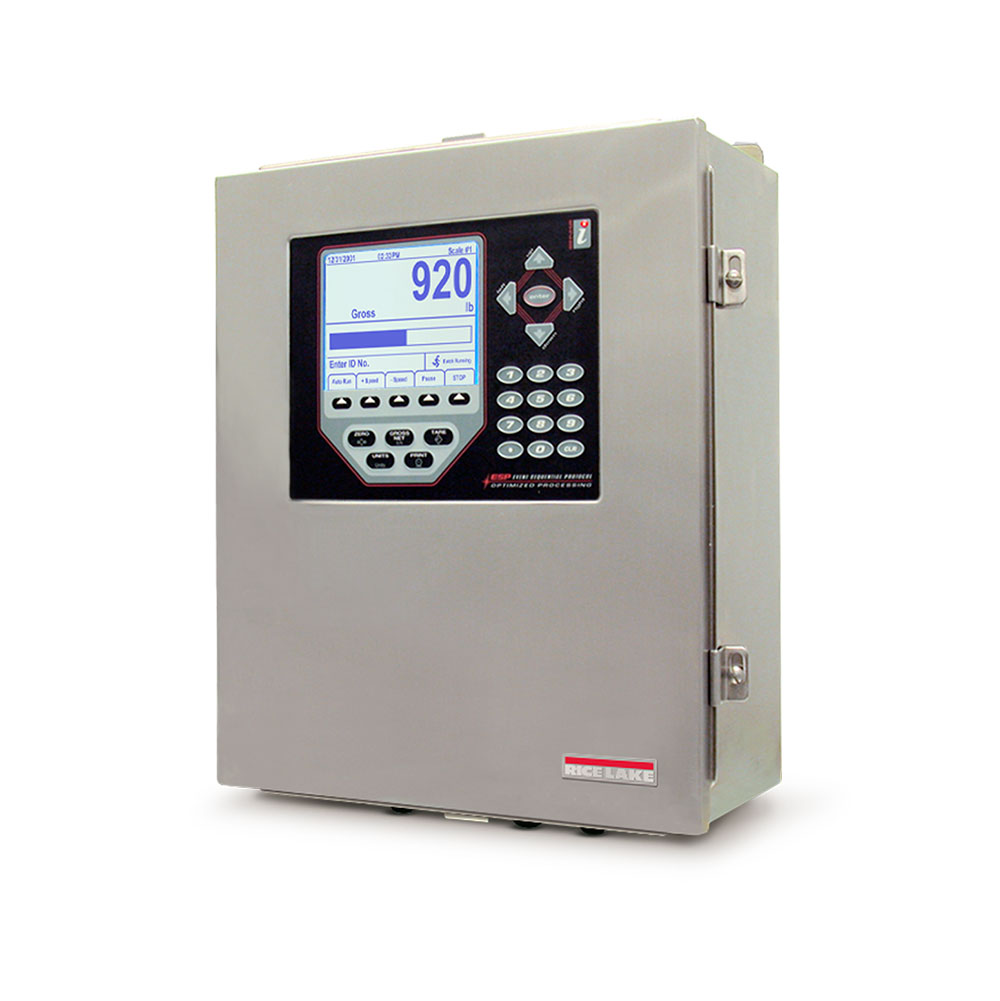

920i Wall Mount Dimensions
A 14.30 in (363 mm) D 18.84 in (479 mm) F 14.30 in (363 mm)
B 11.00 in (279 mm) E 19.63 in (499 mm) G 6.75 in (171 mm)
C 18.00 in (462 mm)





920i Panel Mount Dimensions
A 11.56 in (294 mm) C 5.20 in (132 mm)
B 9.16 in (233 mm) D 7.95 in (202 mm)
