920i® with Group Weighing Software Livestock, Multiple Animal, Digital Weight Indicator

  • USB port supports USB 2.0 flash drives
  • Shows current weighment, last weighment and total weighments
  • Shrink percentage can be changed between weighments
  • Run reports or download to Excel
  • Shows head count, average weight, total weight per group of animals
  • Print or download summary ticket when completed with job/application
  • Homerun cable installed

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW ULCUS

WARNING: Cancer and Reproductive Harm California Proposition 65

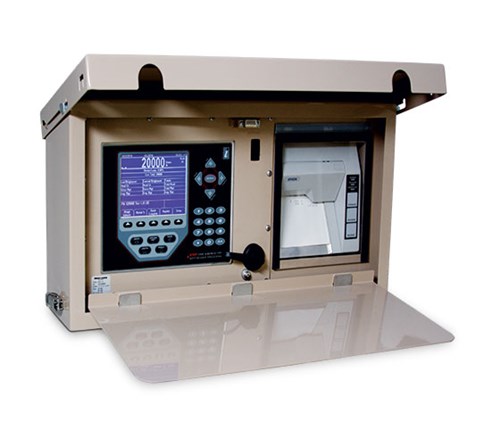

The 920i weigh center features a built-in 920i indicator and ticket printer in a weatherproof enclosure. The 920i features a large backlit LCD graphical display with easy navigation and a straightforward user interface. The weigh center includes a weatherproof USB port to transfer results to a flash drive and upload to a PC database or spreadsheet. The 920i indicator can be equipped with Group Weighing or single animal Rate of Gain software. If used with mobile or portable scales, the 920i weigh center eliminates the need to recalibrate the scale after relocation.

Power:
AC voltages: 115 VAC
Frequency: 50 or 60 Hz
DC voltages: 12 VDC

Power Consumption:
340 mA, maximum at 115 VAC (26 W)

Excitation Voltage:
10 ± VDC, 16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-10 mV to +45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz
1.0 μV/graduation typical at 120 Hz
4.0 μV/graduation typical at 960 Hz

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 9,999,999

System Linearity:
±0.01% full scale

Communication Ports:
Four ports on CPU board support up to 115,200 bps
Port 1: Full duplex RS-232
Port 2: USB Type A and Type B connectors
Port 3: Full duplex RS-232, 20 mA output
Port 4: Full duplex RS-232, 2-wire RS-485,
20 mA output

Display:
(L × H) 4.6 x 3.4 in (116 x 86 mm), 320 x 240 pixel VGA liquid crystal display (LCD) module with adjustable contrast
Transflective display - standard

Keys/Buttons:
27-key membrane panel, tactile feel

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Weight:
Enclosure: 9.5 lb (4.3 kg)

Rating/Material:
NEMA Type 4X/IP66
Stainless steel

Warranty:
Two-year limited

Approvals:
NTEP CC 01-088, Class III/IIIL 10,000d
Measurement Canada AM-5426, Class III/III HD 10,000d
cULus Listed

Resources / Downloads

Title Download Email
920i w/Group Weighing Software Catalog Page Download Email

Title Version Revision Download Email Category Archived
920i Rate of Gain Program Operation Manual D Download Email Agriculture|Livestock Scales|Software No
920i Weigh Center Addendum - Upload to Excel using a Flash Drive Instructions A Download Email Agriculture|Livestock Scales No
920i Weigh Center Operation Manual I Download Email Agriculture|Livestock Scales No
920i® Weigh Center Contrast Control Potentiometer Installation A Download Email Agriculture|Livestock Scales No
Operator Card – 920AG Livestock Weigh Center Quick Start A Download Email Indicator Software|Weight Indicators|Livestock Scales|Agriculture No
Operator Card – 920i Livestock Rate of Gain Quick Start Download Email Weight Indicators|Indicators / Controllers|Agriculture|Livestock Scales No

Title Download Email
920i Weigh Center Replacement Parts Catalog Page Download Email
920i Weigh Center Internal Components Replacement Parts Catalog Page Download Email
920i Weigh Center Mounting and Wiring Assembly Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales

Title Version Size Release Date Download Email
920i Mobile AG Weigh Center iRite Application 1.08 1.3 MB 07/30/2019 Download Email
920i Static AG Weigh Center iRite Application 1.05 1.3 MB 07/30/2019 Download Email

Title View Download Email Category
ScaleTalk: Importing Livestock Scale Data from a Flash Drive to a PC View Download Email Livestock Scales
ScaleTalk: Turning on Reports for Rice Lake Livestock Scales View Download Email Livestock Scales

Parts

Part # Description List Price Cart
167689 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 115 VAC

Call for price

169478 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 12VDC

Call for price

131436 Weigh Center,920i with Printer and Cabling MAS-M AG Scale

Call for price
