920i® with Rate of Gain Software Livestock, Single Animal, Digital Weight Indicator

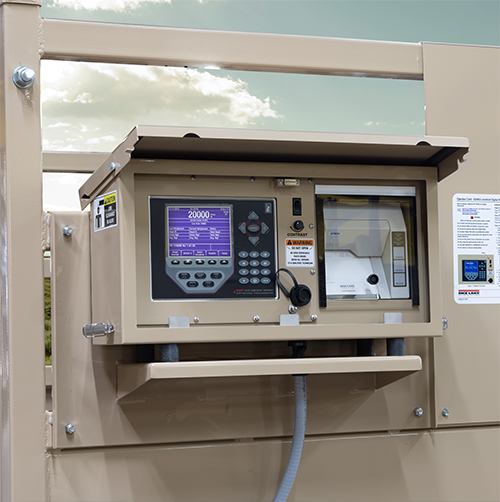

  • Weigh center includes ticket printer for legal ticket printing
  • USB port to transfer weight data to a flash drive

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

A Large, Backlight Display Livestock Digital Weight Indicator

The 920i digital weight indicator features a large backlit LCD graphical display with easy navigation and a straightforward user interface. The 920i includes a NEMA Type 4X/IP66 stainless steel enclosure to protect instrumentation from the environment. The 920i can be equipped with Group Weighing or single animal Rate of Gain software. With its USB port, animal weight results can be transferred to a flash drive and uploaded to a PC database or spreadsheet.



Power:
AC voltages: 115 VAC
Frequency: 50 or 60 Hz
DC voltages: 12 VDC

Power Consumption:
340 mA, maximum at 115 VAC (26 W)

Excitation Voltage:
10 ± VDC, 16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-10 mV to +45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz
1.0 μV/graduation typical at 120 Hz
4.0 μV/graduation typical at 960 Hz

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 9,999,999

System Linearity:
±0.01% full scale

Communication Ports:
Four ports on CPU board support up to 115,200 bps
Port 1: Full duplex RS-232
Port 2: USB Type A and Type B connectors
Port 3: Full duplex RS-232, 20 mA output
Port 4: Full duplex RS-232, 2-wire RS-485,
20 mA output

Display:
(L × H) 4.6 × 3.4 in (116 × 86 mm), 320 × 240 pixel VGA liquid crystal display (LCD) module with adjustable contrast
Transflective display - standard

Keyboard:
27-key membrane panel, tactile feel

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Weight:
Enclosure: 9.5 lb (4.3 kg)

Rating/Material:
NEMA Type 4X/IP66
Stainless steel

Warranty:
Two-year limited

Approvals:
NTEP CC 01-088, Class III/IIIL 10,000d
Measurement Canada AM-5426, Class III/III HD 10,000d
cULus Listed

Resources / Downloads

Title Download Email
920i w/ Rate of Gain Software Catalog Page Download Email

Title Version Revision Download Email Category Archived
920i AC/DC Agricultural Multi-Animal Indicator C Download Email Livestock Scales|Weight Indicators|Indicators / Controllers No
920i Rate of Gain Program Operation Manual D Download Email Agriculture|Livestock Scales|Software No
Operator Card – 920AG Livestock Weigh Center Quick Start A Download Email Indicator Software|Weight Indicators|Livestock Scales|Agriculture No
Operator Card – 920i Livestock Rate of Gain Quick Start Download Email Weight Indicators|Indicators / Controllers|Agriculture|Livestock Scales No

Title Collateral Wizard Request Download Email Category
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales

Title Version Size Release Date Download Email
920i Mobile AG Weigh Center iRite Application 1.08 1.3 MB 07/30/2019 Download Email
920i Static AG Weigh Center iRite Application 1.05 1.3 MB 07/30/2019 Download Email

Title View Download Email Category
ScaleTalk: Turning on Reports for Rice Lake Livestock Scales View Download Email Livestock Scales

Parts

Part # Description List Price Cart
172854 Indicator,920i-Ag 920i-Ag Digital Weight Indicator With Rate Of Gain Software Installed 115 VAC Single Channel A/D For Stationary Scales

Call for price

173139 Weigh Center,920i with Rate of Gain, Printer, and Cabling SAS-M AG Scale

Call for price

205351 920i based Weigh Center, Single Animal Rate of Gain software, static with TM-U295 ticket printer; 115 VAC AC version includes enclosure, 920i and ticket printer, NO inclinometer, for use on stationary scales only

Call for price

Options

Part # Description List Price Cart
172852 Tag Reader,RS420 Portable Stick Reader with Reader, IEC Cable, Data Cable and External Power Adapter Recharger ALLFLEX RS420

List Price: $2,940.00
