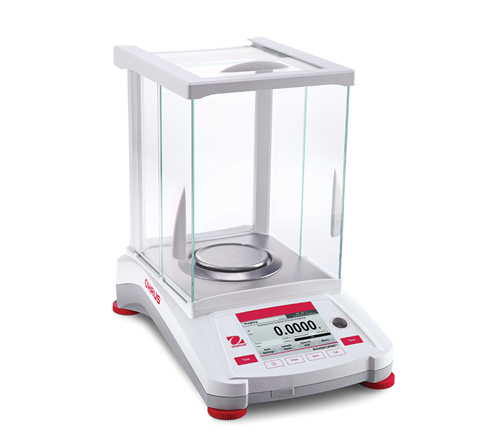

Adventurer Series, OHAUS Analytical Balance

Stable, accurate and fast operation, ensuring optimal weighing results
Color touchscreen with 4.3 in (109 mm) display size
Dual USB ports and RS-232 provide connectivity options
Space-saving, top-mounted draft shield on analytical models
Real time clock with GLP/GMP data
Below minimum sample weight indication with minimum weight feature
AutoCal™ automatic calibration

Request More Information

WARNING: Cancer and Reproductive Harm California Proposition 65

HD View

Innovative and Functional Analytical Balance

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer Pro™ Series analytical balance incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class.

Adventurer Series, OHAUS Analytical Specifications

Weighing Units:
Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Troy Ounce, Grain, Newton (See technical manual for complete listing)

Operating Modes:
Counting, Weighing, Dynamic Weighing, Checkweighing, Percent Weighing, Totalization, Display Hold, Density Determination, Formulation

Power:
100 to 240 VAC, 0.3A, 50 to 60 HZ AC adapter

Calibration Weight:
AX124: 100 g
AX224: 224 g
AX324: 300 g

Operating Temperature:
50 °F to 86 °F (10 °C to 30 °C)

Est. Weight:
17.2 lb (7.8 kg)

Warranty:
Two-year limited

Adventurer Series, OHAUS Analytical Models

Model	Capacity	Readability	Repeatability	Linearity	Weighing Chamber	Pan Size	Dimensions	Part #
AX124	120 g	0.0001 g	1 mg	0.2 mg	9.05 x 13.92 x 13.39 in (230 x 354 x 340 mm)	3.5 in (90 mm)	13.93 x 13.39 x 9.05 in (354 x 340 x 230 mm)	164622
AX224	220 g	0.0001 g	1 mg	0.2 mg	9.05 x 13.92 x 13.39 in (230 x 354 x 340 mm)	3.5 in (90 mm)	13.93 x 13.39 x 9.05 in (354 x 340 x 230 mm)	164623
AX324	320 g	0.0001 g	1 mg	0.2 mg	9.05 x 13.92 x 13.39 in (230 x 354 x 340 mm)	3.5 in (90 mm)	13.93 x 13.39 x 9.05 in (354 x 340 x 230 mm)	164625

Resources / Downloads

Catalogs

Title	Download	Email
Ohaus Adventurer Series Analytical Balance, Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
OHAUS Adventurer Series Manual			Download	Email	Precision Balances	No

Parts

Part #	Description	List Price	Cart
164622	Balance,Ohaus, AX124 Analytical, Adventurer, 120g x 0.0001g, 120V adapter	List Price: $3,598.00	View Cart
164623	Balance,Ohaus, AX224 Analytical, Adventurer, 220g x 0.0001g, 120 VAC Adapter Internal Calibration Adjustment.	List Price: $3,972.00	View Cart
164625	Balance,Ohaus, AX324 Analytical, Adventurer, 320g x 0.0001g, 100VAC to 240VAC Adapter Internal Calibration Adjustment.	List Price: $4,341.00	View Cart

Options

Part #	Description	List Price	Cart
77712	Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery	List Price: $232.00	View Cart
70406	Balance OPT,Cable 9-Pin Serial Ext	List Price: $232.00	View Cart
191875	Balance OPT,Security Device for Pioneer PX	List Price: $279.00	View Cart
191879	Balance OPT, USB Cable For Pioneer PX	List Price: $232.00	View Cart
67422	67422	List Price: $656.00	View Cart

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

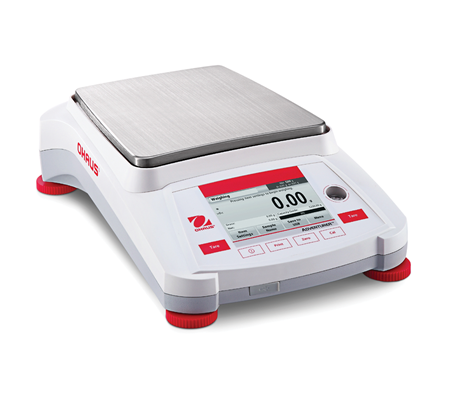

Adventurer Series, OHAUS Legal for Trade Balance
