AutoLift HE Hostile Environment Floor Scale

  • Includes scale, pit frame, pit coping and pneumatic control box
  • Rugged washdown design
  • 304 stainless steel construction
  • Rigid 304 stainless steel channel frame
  • Meets HACCP requirements
  • Manual, drop-in-place, safety bar
  • Four stainless steel, hermetically sealed, IP69K shear beam load cells
  • Load cells protected on all four sides
  • 20 ft of SURVIVOR® hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
  • Smooth stainless steel deck
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Requires 85-100 psi air pressure, opens 43 degrees
  • Air lines and pneumatic regulator included;
    conduit for load cell cable from junction box to indicator is not included

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

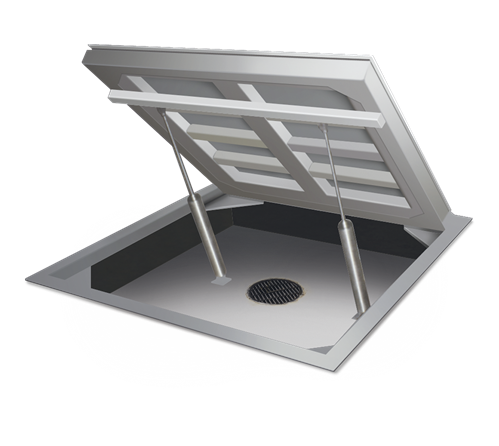

With its own pneumatic lifting arm, the low-profile AutoLift HE floor scale takes efficiency and safety further by providing hands-free access for washdown demands. The remote TuffSeal™ JB4SS stainless steel NEMA Type 4X junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronics far from damaging chemicals and moisture.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF in the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m)

Welding:
Stitch, consult factory if continuous is required

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty:
AutoLift HE weldment five years, load cells two years, all other components one year

Resources / Downloads

Title View Email Category Type
Let Your Enclosures Breathe Easy Email Junction Boxes Articles
What are IP Ratings? Email Checkweighers|Indicators / Controllers|Load Cells|Platform Scales|Precision Balances|Retail Equipment|Wrappers|Weigh Modules Articles

Title Download Email
AutoLift HE Catalog Page Download Email
AutoLift HE Pit Frame Concrete Details Catalog Page Download Email

Title Version Revision Download Email Category Archived
AutoLift HE Installation Manual E Download Email Platform Scales|Floor Scales No

Title Download Email
AutoLift HE Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
AutoLift HE Floor Scale Request Download Email Platform Scales|Floor Scales
Washdown Solutions Request Download Email Washdown Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales
AutoLift HE Installation Procedure View Download Email Floor Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Parts

Part # Description List Price Cart
42207 Scale,Pneumatic Lift ASSY 4x4HPSSP-2K 2,000 lb NTEP III SST

List Price: $16,795.00

42208 Scale,Pneumatic Lift ASSY 4x4HPSSP-5K 5,000 lb NTEP III SST

List Price: $16,795.00

42209 Scale,Pneumatic Lift ASSY 4x4HPSSP-10K 10,000 lb NTEP III SST

List Price: $17,395.00

42211 Scale,Pneumatic Lift ASSY 5x5HPSSP-2K 2,000 lb NTEP III SST

List Price: $20,155.00

42212 Scale,Pneumatic Lift ASSY 5x5HPSSP-5K 5,000 lb NTEP III SST

List Price: $20,155.00

42213 Scale,Pneumatic Lift ASSY 5x5HPSSP-10K 10,000 lb NTEP III SST

List Price: $20,755.00

Options

Part # Description List Price Cart
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $310.00

Consult Four drilled deck holes for scale height adjustment

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
