Automated Ticketing Kiosks

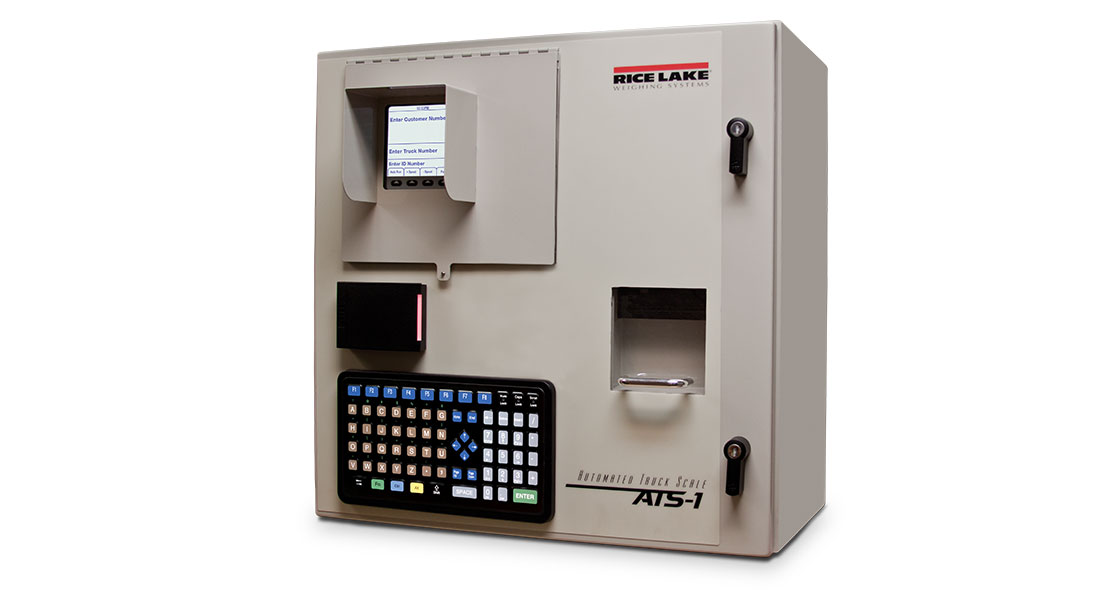

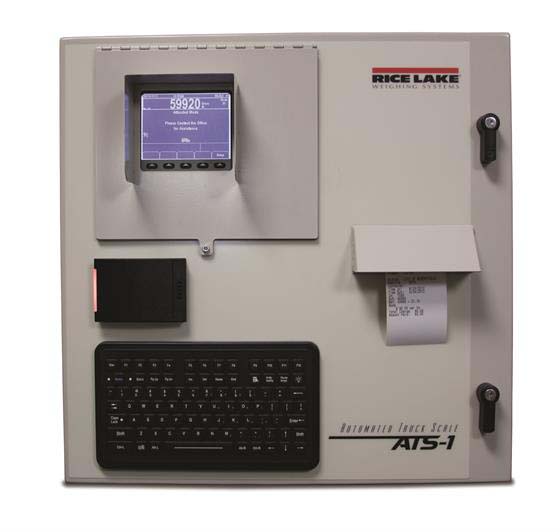

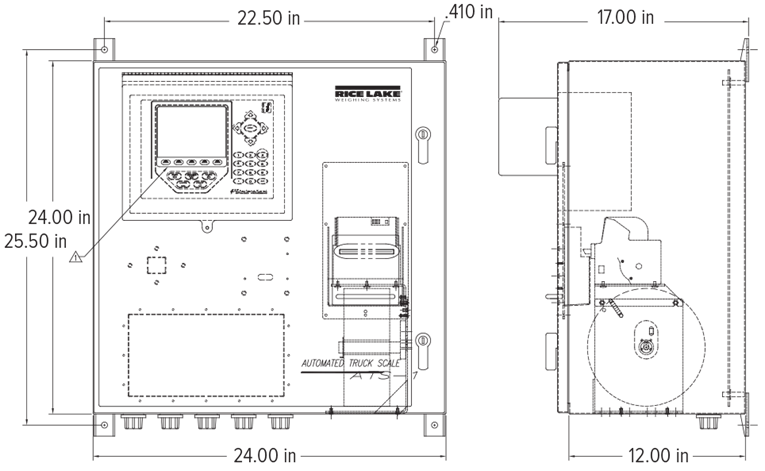

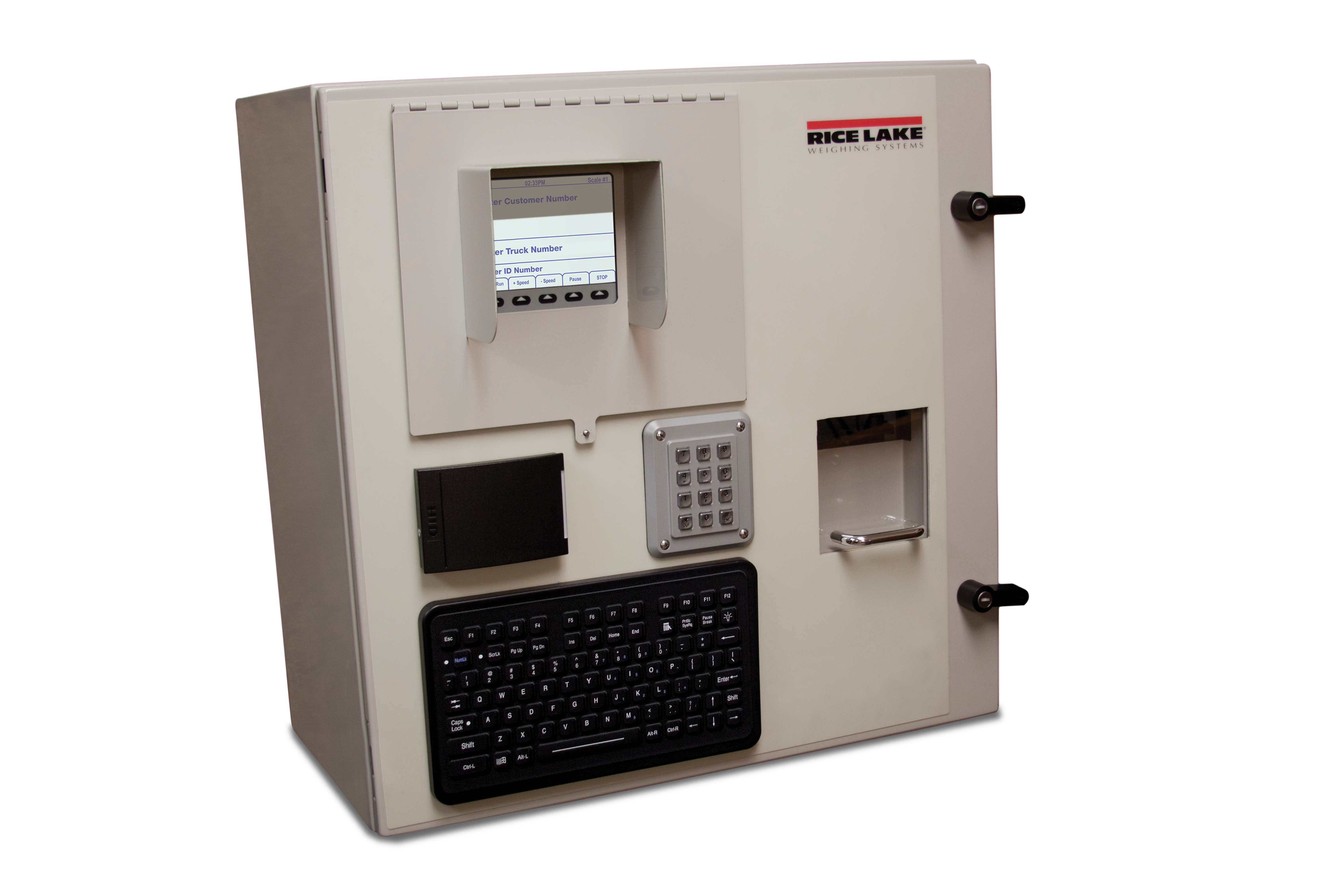

Weigh Out/Printer Kiosk

  • 920i® HMI with sun shield
  • Six serial ports
  • 1 MB database memory
  • Two option slots
  • Slide door access to ticket
  • 8-in paper roll
  • Operator prompting
  • Formattable tickets
  • Transmits weight to remote display
  • Stop/Go remote display traffic light control
  • Direct thermal kiosk printer
  • One-year warranty

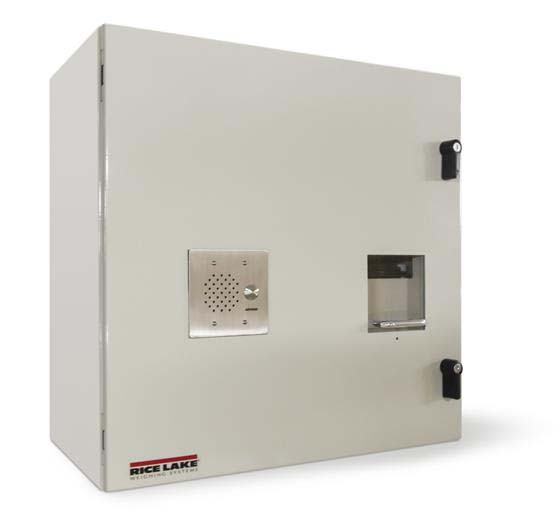

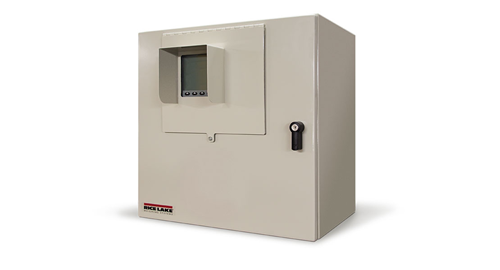

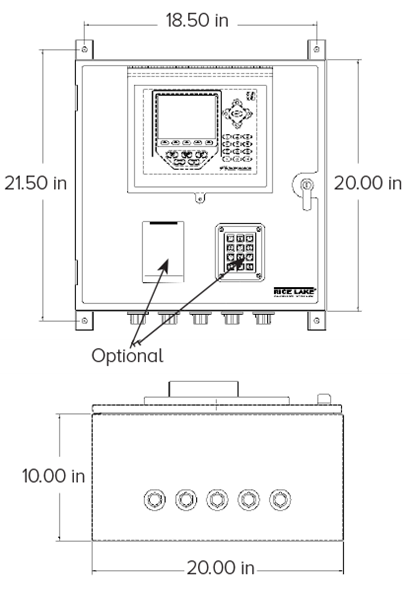

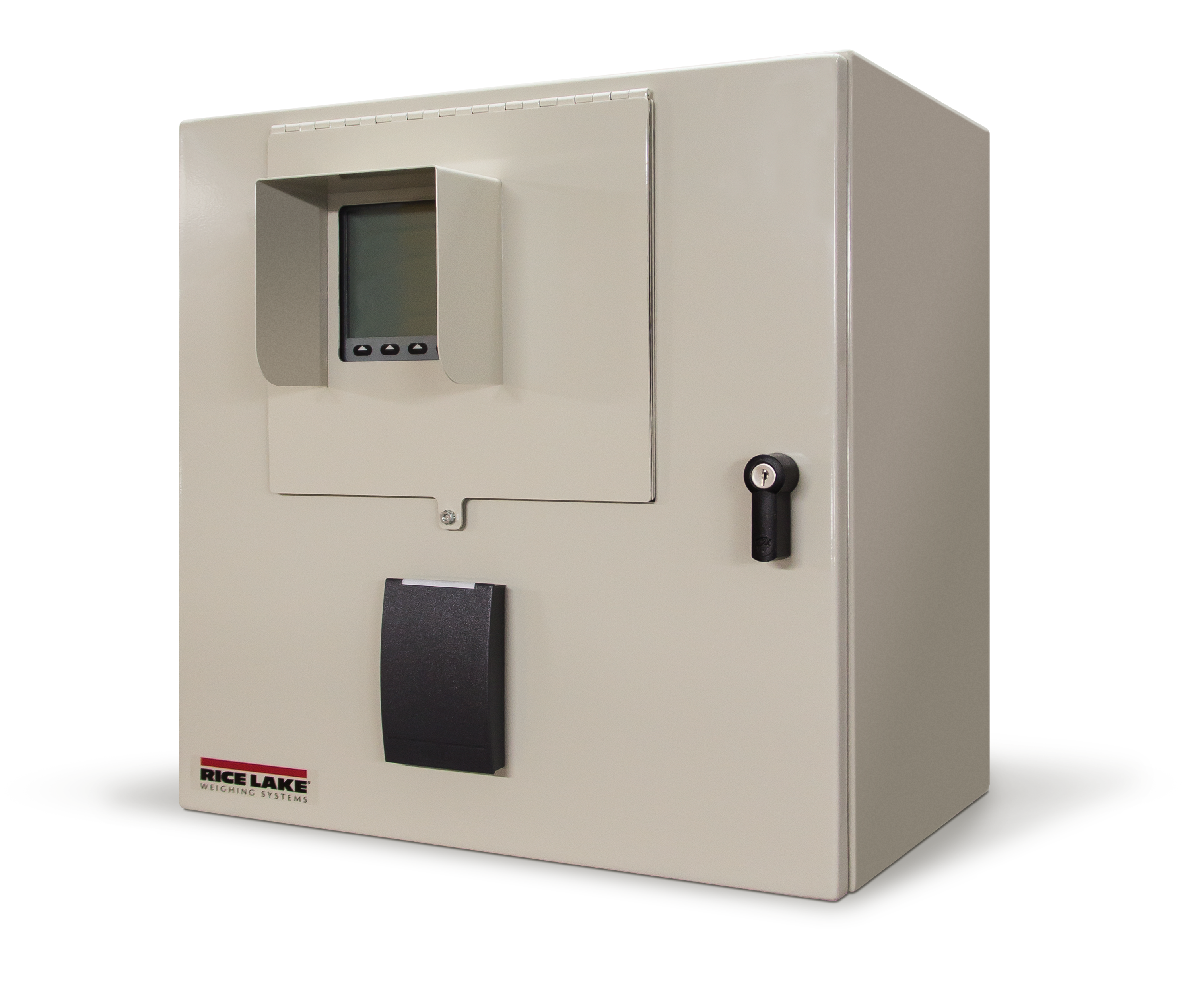

Weigh/Check In Kiosk

  • 920i® HMI with sun shield
  • Four serial ports
  • 120 VAC
  • Two option slots for 920i option cards
  • One-year warranty

Weigh Out/Printer Kiosk Options

  • Ethernet TCP/IP (wired and Wi-Fi options available)
  • Single or dual channel A/D cards
  • RFID reader
  • Currency accepter (US currency only)
  • Internal heater
  • Gate control
  • Loop detector output
  • Automated traffic light control
  • Credit card reader (US and Canadian currency)

Consult for the following options

  • Stainless steel enclosure
  • Bar code badge scanner
  • 230 VAC

Automated Kiosk Systems Streamline Traffic and Data Management

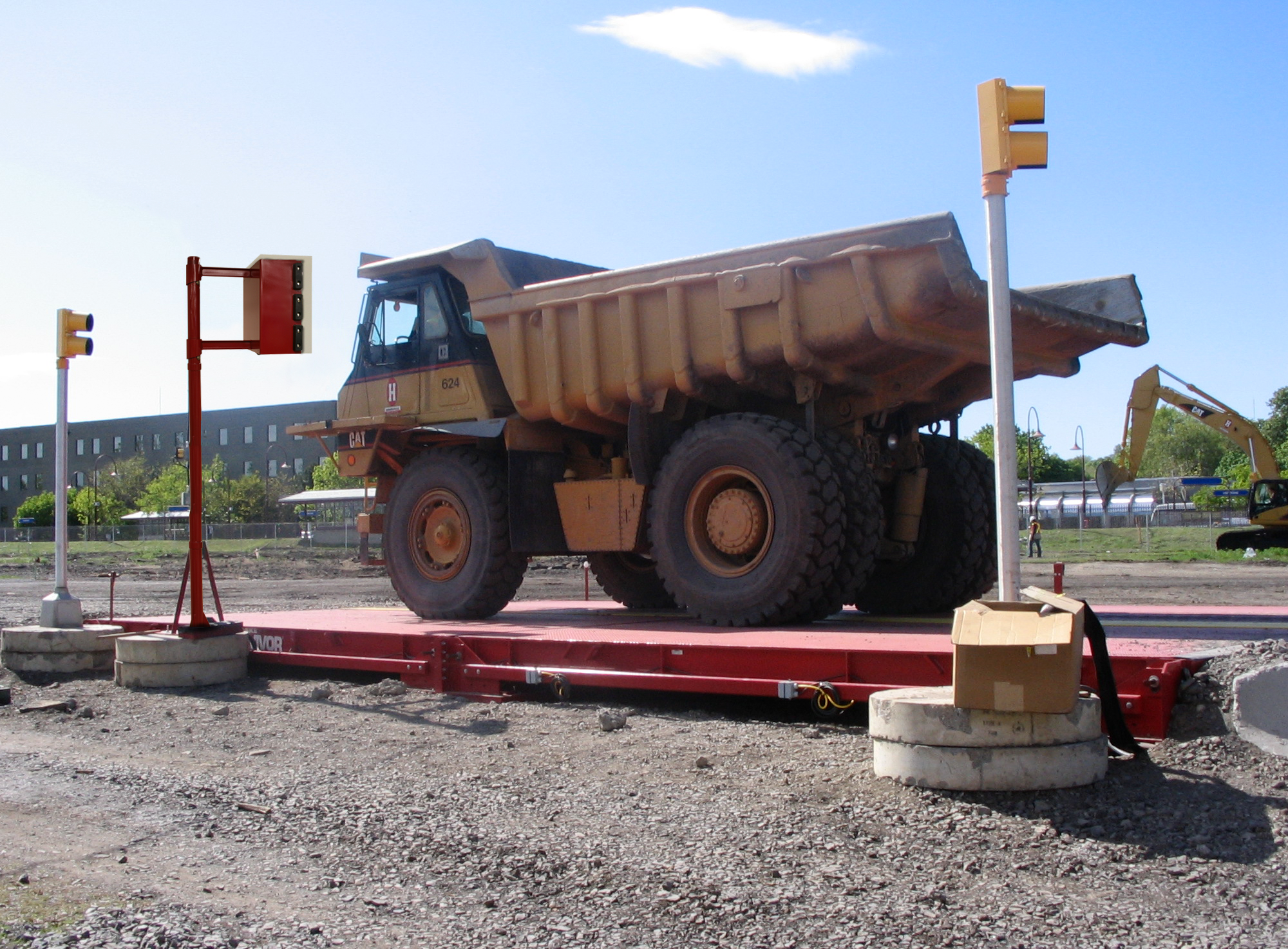

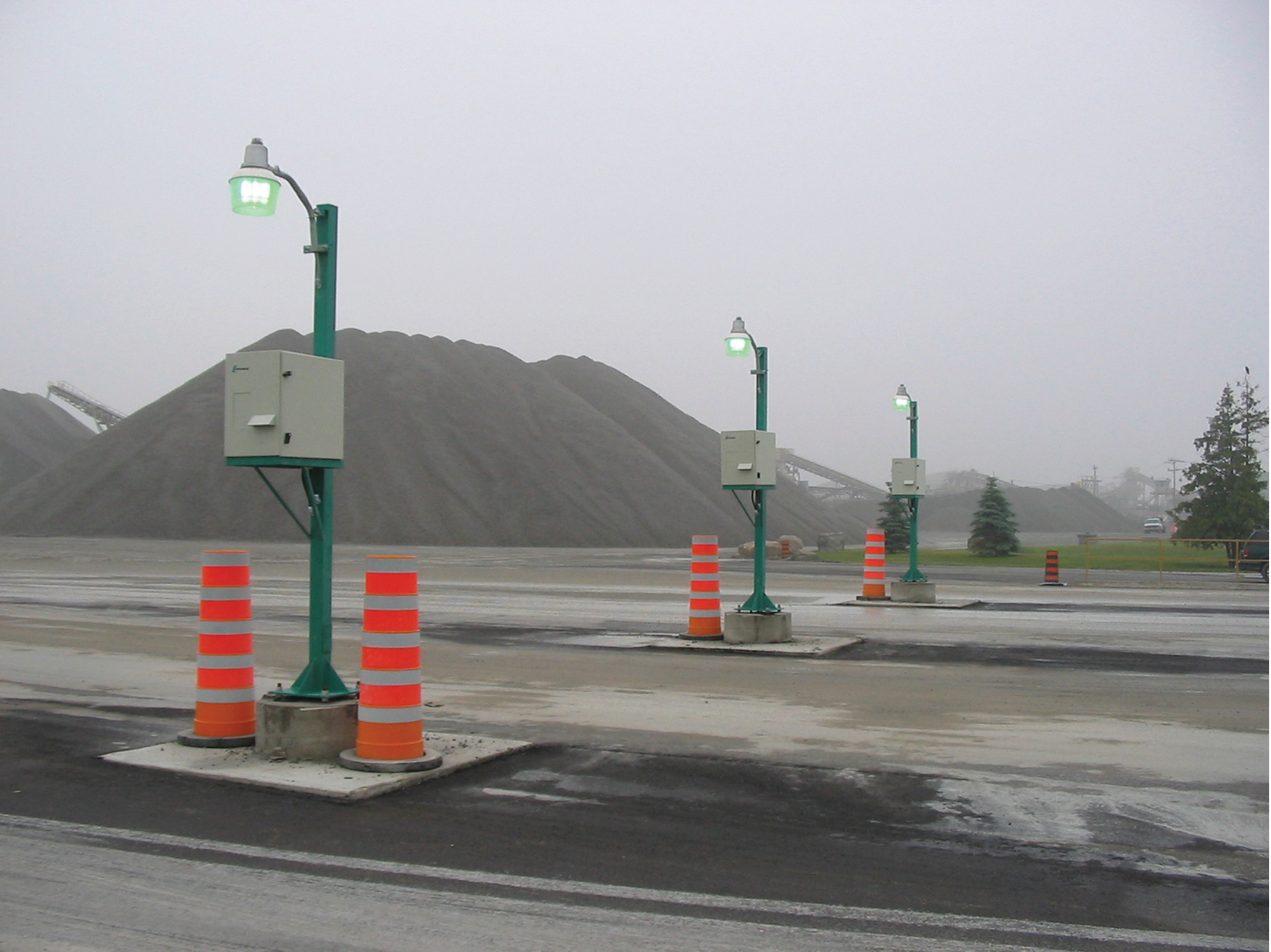

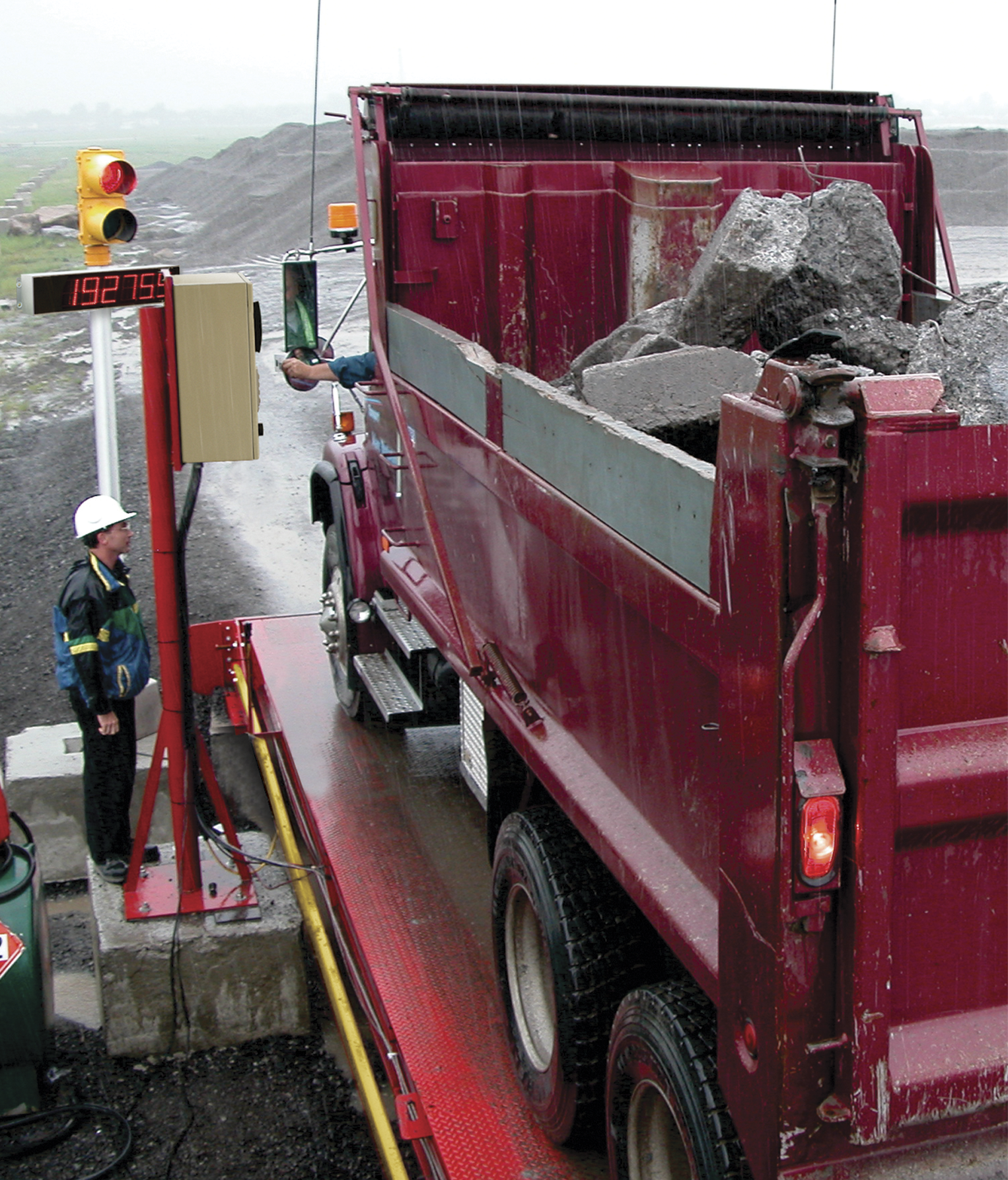

Rice Lake’s Automated Kiosk Systems boost efficiency and optimize the flow of traffic in and out of your facility with fully automated or semi-unattended ticketing. With ticketing kiosks, drivers can check-in, weigh-in and -out, and print tickets without ever exiting the truck, increasing safety for your drivers. By automating everything from point-of-sale to account management, this system virtually eliminates transaction errors.

Rice Lake’s kiosks can integrate with the central office and accounting systems, no matter the size. The user-friendly interface is housed in a rugged, painted mild or stainless steel enclosure for long-lasting use. Automated kiosks are ideal for a variety of applications, including ports, transfer stations, landfills, warehouses, feed mills, grain terminals, chemical plants, construction sites, load-out facilities and more.

Resources / Downloads

Title View Email Category Type
Automate Your Truck Scale with Peripheral Equipment Email Truck Scales|Automated Systems|Vehicle Scale Accessories Articles
Time Flies at Tilcon View Email Truck Scales|Kiosks / Terminals|Vehicle Scale Accessories Application Story
Truck Scale System Accessories View Email Truck Scales Articles

Title Download Email
Weigh Out/Printer Kiosk Catalog Page Download Email
Weigh/Check In Kiosk Catalog Page Download Email

Title Download Email
Automated Ticketing Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
ATK Automated Kiosk Systems Request Download Email Vehicle Scale Accessories|Automated Systems

Title View Download Email Category
ATK Automated Ticketing Kiosk Overview View Download Email Kiosks / Terminals

Parts

Weigh/Check In Kiosk

Part # Description List Price Cart
153353 Kiosk,Inbound 920i 20x20x10 in., No Printer or Heater. Includes 119668 Panel Mount 920, 94180 Sunshield, with Din Rail. AND SURGE SUPPRESSION

List Price: $4,315.00

Weigh Out/Printer Kiosk

Options

Weigh Out/Printer Kiosk

Part # Description List Price Cart
119691 Sub-Assembly,Keypad Anti-Vandal Metal Casing Option w/ Mounting Hardware. Includes Wiring Drawings.

List Price: $505.00

176452 Reader,HID Smart Card Assembly Includes Wiegand to RS232 Converter and Mounting Hardware (Replacement for part 85901)

List Price: $695.00

119692 Option,Qwerty Keyboard PS2, Panel Mount, 88-Key with mounting hardware. Includes Wiring Drawings.

List Price: $875.00

119693 Heater,200W Sub-Assembly 120VAC w/ fan & thermostat. Includes Wiring Drawings And Mounting Hardware.

List Price: $925.00

119761 Ethernet Unmanaged Switch Requires 12 To 36 VDC ESW105, Industrial 5 port, UL E180881

List Price: $315.00

119689 Kiosk option, A/D Single Channel 920i, Includes Din Rail, Terminals, Wiring And Drawing.

List Price: $395.00

119690 KIOSK Opt, A/D Dual Channel 920i, Includes Din Rail, Terminals, Wiring And Drawing.

List Price: $575.00

119946 ATS Printer OPT,Ethernet UDS-1100 Converter with cable and mounting hardware for Kiosk Printer. 40 inch, 28 pin M to 9 pin M.

List Price: $485.00

120040 ATS Printer OPT,Ethernet UDS-2100 Converter with cable and mounting hardware for kiosk printer. Blunt end.

List Price: $675.00

33490 Kit,Relay 4 Channel Opto With mounting screws and washers.

List Price: $125.00

21159 Board,AC Transient Protection EL226 B/O

List Price: $245.00

Weigh/Check In Kiosk

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
