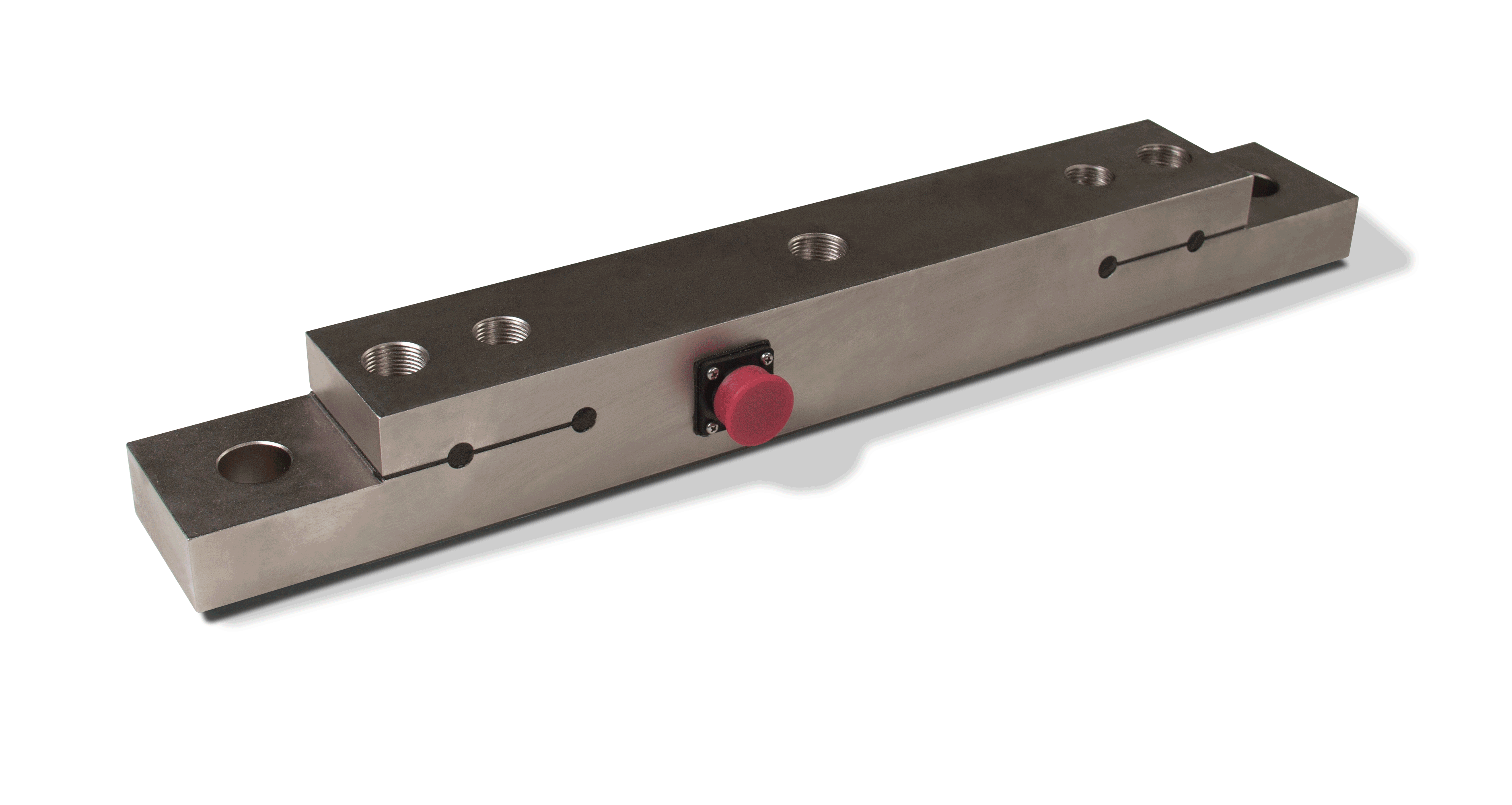

AX3040 Alloy Steel Load Cell

Constructed of alloy steel, environmentally sealed and used in the AX3040 axle scale.

Full Scale Output:
0.5 mV/V at 12,500 lb

Output Resistance:
350 ohm (nominal)

Input Resistance:
350 ohm (nominal)

Material/Finish:
Alloy steel

Temperature:
Operating:
14 °F to 104 °F (-10 °C to 40 °C)

Seal Type:
Environmentally sealed, IP66

Manufacturer Model Number:
8300420-10

Rated Excitation:
15 VDC

Nonlinearity:
±1.0% full scale

Insulation Resistance:
5,000 megohm at 50 VDC

Warranty:
One-year limited

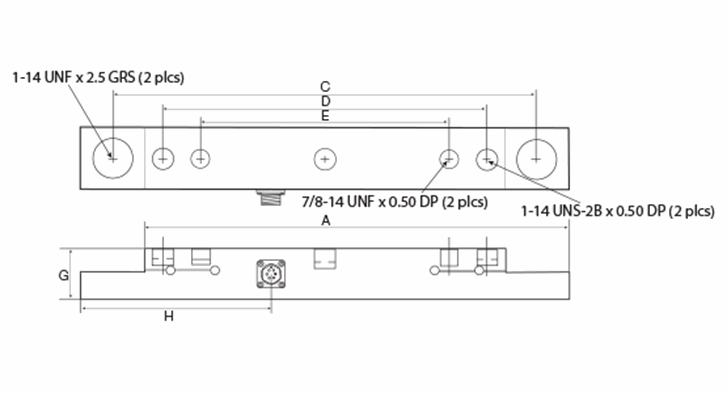

Rated Capacity A B C D E F G H
lb/in
20,000 22.60 24.60 19.60 15.00 11.50 2.84 2.38 8.80





Resources / Downloads

Title Download Email
AX3040 Load Cell Catalog Page Download Email

Parts

Part # Description List Price Cart
111766 Load Cell,PL9000-22 22.6 Inch Bolt On Alloy Steel Dynamic Capacity 20,000lb. IP66 Also used in AX3040 Axle Scale

List Price: $1,170.00
